ANSI Grade 2 Titanium Torispherical Dish End Sandblasting

Basic Information
Place of Origin: China
Brand Name: LHTi
Certification: ISO 9001:2015
Model Number: LH-Ti3
Minimum Order Quantity: 3Pcs
Packaging Details: Standard export packing,plywood case outside
Delivery Time: 30 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 20000 pieces per month
Detail Information
Product Name: Grade 2 Titanium Spherical Heads End Caps Tank Head For Pressure Vessel Material: Titanium GR1, GR2, GR7, GR12, Etc.
Standard: According To ASME VIII-I Standard Or DIN28013 Size: OD300-1250mm, Or Customized By Customers' Requests
Other Name: Titanium Dish Head,Titanium Elliptical Heads Color: Natural
Applications: Pressure Vessel Equipment And Boilers Third Party Testing: Available
High Light:

Grade 2 Titanium Torispherical Dish End

,

ANSI Titanium Torispherical Dish End

,

Sandblasting Torispherical Dish End


Product Description

 Grade 2 Titanium Spherical Heads



Titanium Spherical Heads ,aso called Titanium dish head,Titanium Elliptical Heads.It is a kind of boiler part

in pressure vessel. It is usually used at both ends of pressure vessels. Then there is a welding pipe fitting

product used for plugging at the end of the pipe. There are many forms. The head is a part of the container

and is welded to the barrel. According to the different geometric shapes, it can be divided into spherical, elliptical,

disc, spherical crown, cone shell and cover, among which spherical, elliptical, disc and spherical crown head are

collectively referred to as convex head. In the welding is divided into butt welding head, socket welding head.

Used in various vessels and equipment, such as storage tanks, heat exchangers, towers, reactors, boilers and

separation equipment, etc.



Material Titanium
Grade  Gr1 Gr2 Gr7 Gr12 etc.
Color Natural
Standard ANSI, ASME ,MSS, API, DIN, JIS
Reduction Ratio About 10%
Size range

50mm-10000mm with integral formed, larger sizes with subsection formed can

be specified.

Customized size available

Surface Treatment Sand Blasting, Pickling
Technology Hot pressing, cold pressing
Test UT, RT, MT, PT, ET
Applications Mainly for pressure vessels and boilers in diverse industry such as oil, chemical, winery, pharmaceutical, environmental and military.
Custom-made Support





(Titanium dish head )DIN28013:

D (mm)

s min/max (mm)

Volumen (L)

h1 (mm)

kg pr mm s

D (mm)

s min/max (mm)

Volumen (L)

h1 (mm)

kg pr mm s

300

4-10

3.5

78

1,0

1550

5-15

483

403

22.5

350

4-10

5.6

91

1.3

1600

5-15

532

416

23.9

400

4-10

8.3

104

1,7

1650

5-15

585

429

25,4

450

4-10

11.8

117

2,1

1700

5-15

640

442

27.0

500

4-10

16.1

130

2.6

1750

5-15

700

455

28.5

550

3-12

21,6

143

3,1

1800

5-15

760

468

30

600

3-12

28,0

156

3.6

1850

5-15

825

481

31.5

650

3-12

36.0

169

4,2

1900

5-15

890

494

33

700

3-12

44,5

182

4,8

1950

5-15

965

507

36

750

3-12

54.5

195

5,5

2000

6-15

1040

520

37

800

3-13

66.5

203

6.2

2050

6-15

1120

533

38.5

850

3-13

79,5

221

7,0

2100

6-15

1200

546

40.5

900

3-13

94

234

乙8

2150

6-15

1290

559

42,5

950

3-13

111

247

8.6

2200

6-15

1380

572

44.5

1000

4-16

130

260

9.5

2250

6-15

1480

685

46.5

1050

4-13

150

273

10,4

2300

6-15

1580

598

46 5

1100

4-13

173

286

11,1

2350

6-15

1690

611

51

1150

4-13

198

299

12.5

2400

6-15

1800

624

53

1200

4-13

225

312

13.6

2450

6-15

1910

637

55

1250

4-13

254

325

14,7

2500

6-15

2030

660

57

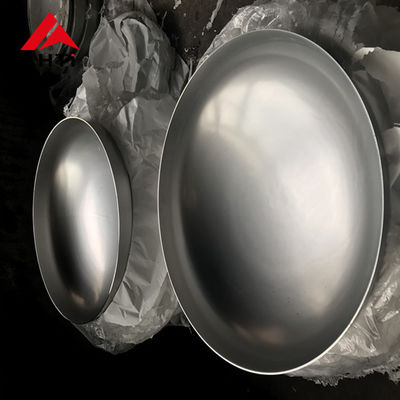

ANSI Grade 2 Titanium Torispherical Dish End Sandblasting 0ANSI Grade 2 Titanium Torispherical Dish End Sandblasting 1ANSI Grade 2 Titanium Torispherical Dish End Sandblasting 2ANSI Grade 2 Titanium Torispherical Dish End Sandblasting 3ANSI Grade 2 Titanium Torispherical Dish End Sandblasting 4ANSI Grade 2 Titanium Torispherical Dish End Sandblasting 5ANSI Grade 2 Titanium Torispherical Dish End Sandblasting 6ANSI Grade 2 Titanium Torispherical Dish End Sandblasting 7









Applications of titanium Elliptical Heads:

ANSI Grade 2 Titanium Torispherical Dish End Sandblasting 8



Know More About Titanium Elliptical Heads:
♦ Dish head (also called elliptical head or spherical head)

♦ The shape of this ellipsoidal head is more economical, because the height of the head is just a fraction

of the diameter.

♦ The elliptical dish end radius varies between the major and minor axis usually with the ratio is 2:1.

♦ The elliptical tank head is the economical solution for medium pressure tanks due to the reduced metal thickness requirement.

♦ The ellipsoidal head has good mechanical properties better than the torispherical head.

♦ Due to the application of spinning manufacturing process in recent years, the fabrications of the larger diameter

elliptical head is also can be realized.

♦ ASME elliptical dished heads are used in the construction of tanks for unfired pressure vessels, such as liquefied

petroleum gas and air receivers.





Product processing:

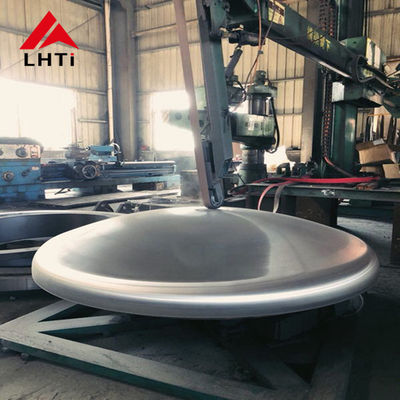

ANSI Grade 2 Titanium Torispherical Dish End Sandblasting 9







Our factory display:

ANSI Grade 2 Titanium Torispherical Dish End Sandblasting 10



FAQ:

Q: What’s the information should I provide when inquiry?Elliptical Head
A: If you have drawings, we will be entirely in accordance with production drawings .

If you do not have the drawing, you can tell me the product data.

There are several important data, such as material, type of head( We have elliptical head, hemispherical

head, dished head, flat head, etc. ),diameter, thickness, special tolerances or requirements.

We can do the drawings according to your requirements, and you confirm that the final product drawings.



Q: How do you ensure the quality of products?
A: Thanks for your question.Our production staff is trained through national quality department, and obtain

the corresponding certificate, with years of production and design experience.

Weld must undergo X-ray inspection to ensure that no defects.



Q: Can you help us matching related products?
A: Our company also is surrounded by a lot of ancillary businesses, such as titanium flanges, titanium pipe

fittings , and other equipment.

We can help you matching the highest quality products with the lowest prices.




Exhibitions and customer visits:

ANSI Grade 2 Titanium Torispherical Dish End Sandblasting 11





Welcome to contact and visit us in any time!
