CNC Machined Hexagon Socket Countersunk Head Cap Screws

Basic Information
Place of Origin: Baoji , Shaanxi , China
Brand Name: LHTi
Certification: ISO9001:2015; SGS; TUV; BV
Model Number: hex socket countersunk head cap screws
Minimum Order Quantity: 200 PCS
Packaging Details: Small quantity: pp bags inside,carton box outside packing. More than 10kgs: pp bags inside, Plywood case outside packing
Delivery Time: 10-15 working days
Payment Terms: T/T, Western Union, L/C, D/A, D/P
Supply Ability: 10,000 piece per month
Detail Information
Standard: DIN7991 Material: Titanium Gr2
Size: M3-M36 Length: As Customers' Request
MOQ: 200 PCS Technique: CNC Machined
Application: Bicycle Product Name: CNC Machined DIN7991 Gr2 Titanium Hex Socket Countersunk Head Cap Screws
High Light:

Hexagon Socket Countersunk Head Cap Screws

,

CNC Machined Titanium Bolts Nuts

,

DIN7991 Titanium Bolts Nuts


Product Description

CNC Machined DIN7991 Gr2 Titanium hex socket countersunk head cap screws



The principle of titanium alloy screws
Titanium screws and titanium nuts are tools that use the physical and mathematical principles of circular rotation and frictional force of objects to tighten objects and tools in a step-by-step manner.
Titanium standard parts
Products: Titanium screws, titanium bolts, titanium nuts, titanium studs
Material: TA1, TA2,
Specification: M4 ~ M25 × L



Pure titanium has extremely high corrosion resistance in most media, especially in neutral, oxidizing

and seawater media. The corrosion resistance in seawater is higher than that of aluminum alloys,

stainless steels and nickel-based alloys.So it has been used in the industrial, agricultural environment

and marine atmosphere for several years, and the surface has not changed.







Item Name

GR2 Titanium hex socket countersunk head cap screws

Material

Pure Titanium

Grade

Gr2

Standard

DIN7991

Surface Treatment

Polished

Color

Ti natural

Applications

Chemical Industry
Certificate ISO 9001:2015, EN 10204/3.1
Features

1. Not easy to rust;

2. Resistance to acid and alkali corrosion;

3. Light weight;

4. Has a long service life, widely used in aerospace, electroplating, chemical industry, machinery, etc.



















































Chemical composition (Wt%)

 Grade Fe max O max N max C max H max Pd Al Bal
Gr2 0.3 0.25 0.03 0.1 0.015 - - Ti



Physical Properties (Min)

 Grade Alloy  Composition Tensile Strength Yield Strength
Elongation min %
ksi Mpa ksi Mpa
Gr2 Unalloyed Ti ("Pure") 50A -CP2 58 400 40 275 25



Common stock size:



M2.5 M2.5*5-M2.5*20
 M3 M3*6-M3*20 M3*25-M3*50
 M4 M4*10-M4*25 M4*30-M4*50
M5 M5*8-M5*20 M5*25-M5*50
 M6 M6*6-M6*40 M6*45-M6*100
 M8 M8*10-M8*50 M8*55-M8*100
 M10 M10*10-M10*30 M10*35-M10*55 M10*60-M10*100
M12 M12*20-M12*45 M12*50-M12*75 M12*80-M12*100
M14 M14*20-M14*40 M14*45-M14*65 M14*70-M14*100
M16 M16*30-M16*55 M16*60-M16*100
- For other sizes, please contact customer service

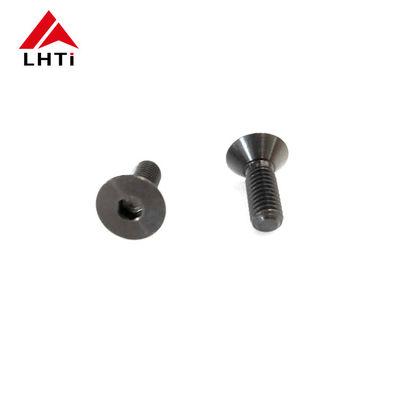

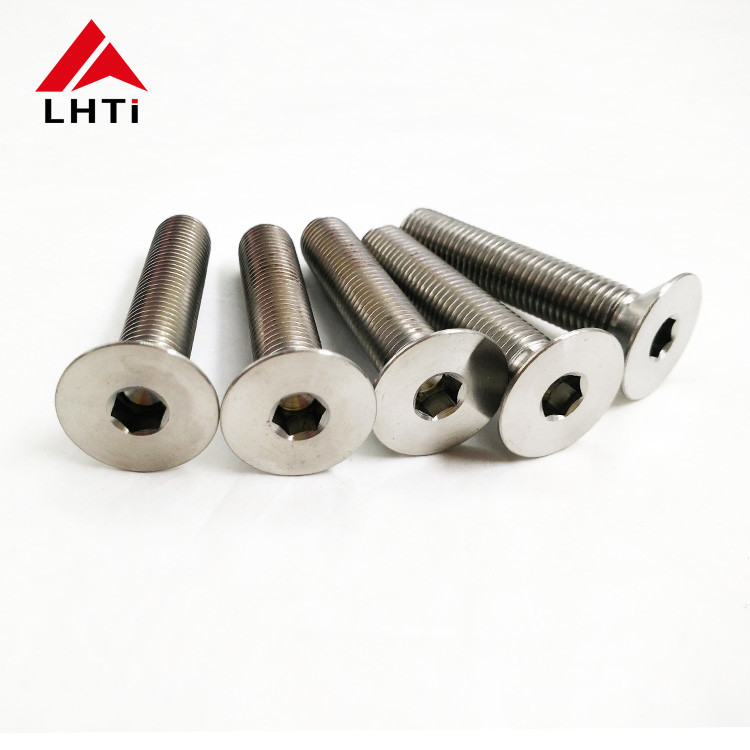

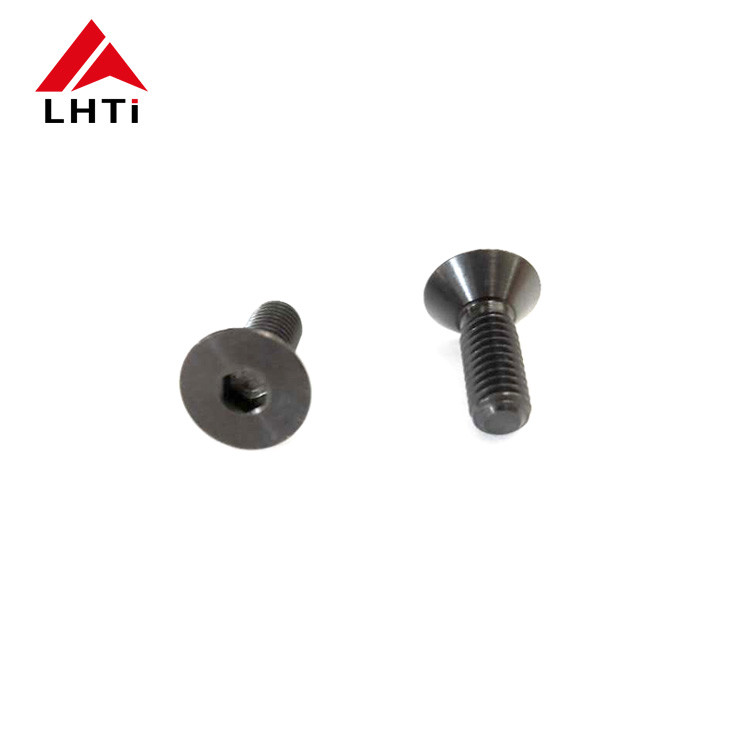

Detailed pictures:

CNC Machined Hexagon Socket Countersunk Head Cap Screws 0
