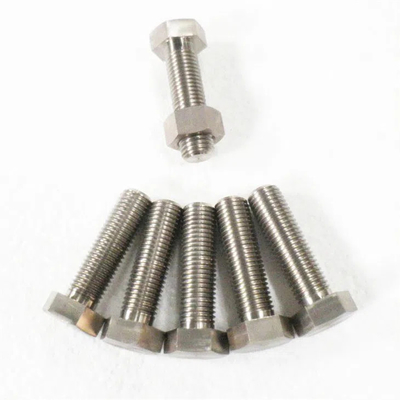

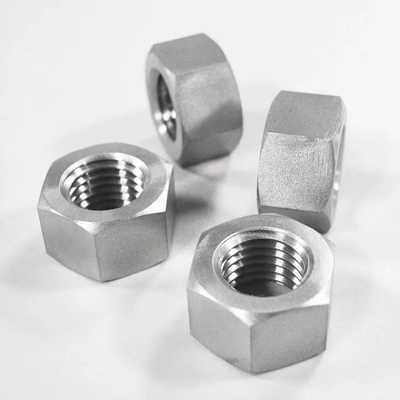

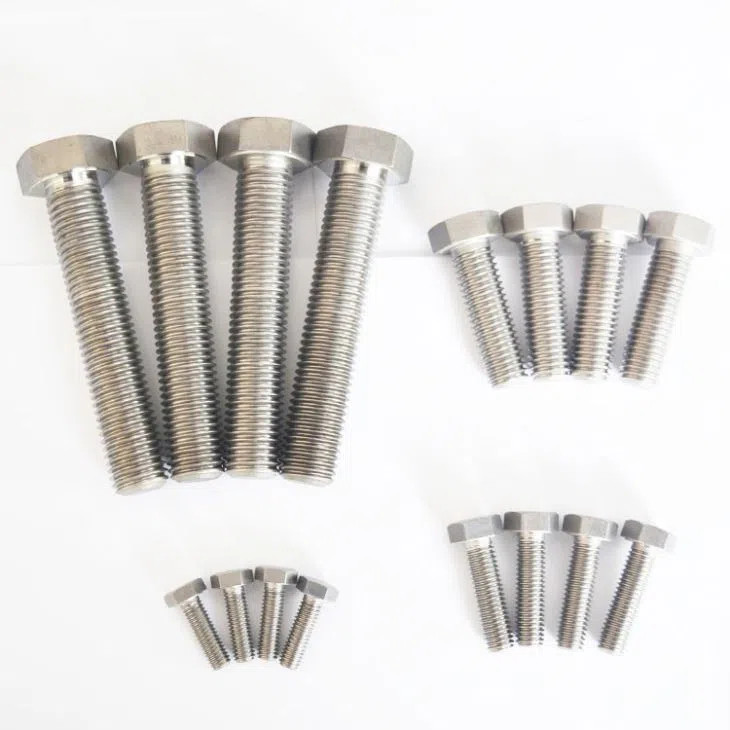

Gr2 Titanium Hexagon Bolts And Nuts DIN933 DIN934

Gr2 Titanium Hexagon Bolts And Nuts DIN933 DIN934

Gr2 Titanium Hexagon Bolts And Nuts DIN933 DIN934

Detail Information
Product Description
Detail Information
Product Name:
Titanium Screw
Standard:
DIN933 DIN934
Material:
Gr2
Unit Price:
$0.5usd/pc-$3.2usd/pc
Head Type:
Hexagon Head
Surface:
Polished
Technique:
CNC Machined, Forged
MOQ:
200pcs
Highlight:

Gr2 Titanium Hexagonal Nut Bolt

,

DIN933 Hexagon Head Nut

,

Hexagon Titanium Bolts Nuts

Product Description

Titanium Hexagon Bolts and Nuts



Product Information of Titanium Hexagon Bolts and Nuts



Material: GR2

Standard: DIN933, DIN934

Technique: CNC/Forged

Surface: Polished

Size: Bolts M3-M48 Nuts M1-M90



Chemical Composition of Titanium Hexagon Bolts and Nuts(Wt%)



Grade Fe max O max N max C max H max Pd Al Bal
Gr2 0.3 0.25 0.03 0.1 0.015 - - Ti



Physical Properties of Titanium Hexagon Bolts and Nuts(Min)



Grade Alloy Composition Tensile Strength Yield Strength Elongation min %
ksi Mpa ksi Mpa
Gr2

Unalloyed Ti ("Pure")

50A -CP2

 58 400 40 275 25



Production Process of Titanium Hexagon Bolts and Nuts





Tags:

titanium flange bolt

titanium hex bolt

titanium bolts and nuts
