Product Details
Place of Origin: China
Brand Name: LHTi
Certification: ISO9001:2015; TUV; SGS;BV
Model Number: Titanium Sheet
Payment & Shipping Terms
Minimum Order Quantity: 50 kg
Price: USD7500-90.00 per kg
Packaging Details: Plywood box with soft foam for additional protection
Delivery Time: 10-28 work days
Payment Terms: T/T, MoneyGram, L/C, Western Union
Supply Ability: 200000 kg per month
Standard: |
ASTM B265 |
Technology: |
Cold Rolled |
Shape: |
Straight |
Surface: |
Polished, Acid Washing |
Size: |
Thickness0.6mm |
Key Word: |
15333 Titanium Price |
Surface: |
Polished |
Material: |
Ti15333 |
Standard: |
ASTM B265 |
Technology: |
Cold Rolled |
Shape: |
Straight |
Surface: |
Polished, Acid Washing |
Size: |
Thickness0.6mm |
Key Word: |
15333 Titanium Price |
Surface: |
Polished |
Material: |
Ti15333 |
TB5 Ti 15333 0.6mm Titanium Sheet for glasses plate
1. Product Description
Product name | titanium sheet |
Material grade | Ti15333 ,Gr1, Gr2, Gr4, Gr5,Gr7, Gr9, Gr23, TI-6Al4v, |
Certificate | ISO9001:2008,TUV, material test certificate EN10204.3.1 |
Standard | ASTM B265,ASME SB265,AMS4911,ASTM F136,ASTM F67 |
Tehnique | Hot/cold rolled |
Surface | Acid wash,polished |
Dimensions | Thickness:0.3-100mm |
Width:20-1220mm | |
Length:500-6000mm |
Size:
Thickness(0.5mm-0.7mm)*Width≤1000mm*L≤2000mm
Thickness(0.8mm-4.0mm)*Width≤2000mm*L≤6000mm
Thickness(5.0mm-50mm)*Width≤2000mm*L≤6000mm
Thickness(60mm-100mm)*Width≤2000mm*L≤6000mm
Process flow: Use high-quality sponge titanium, smelting ingot more than 2 times,
forging and hot-rolling, hot-rolling, selecting rolling method according to the product,
rolling to the finished product size, and finally flattening the sheet to finish the finished sheet.
Physical properties: The tensile strength of the Gr2 titanium sheet is> 450Mpa,
the yield value is> 360Mpa, and the elongation after breaking is> 30%.
Quality supervision: starting from the sponge titanium composition inspection, the upper,
middle and lower samples of the ingot are sampled for composition inspection, and ultrasonic
non-destructive inspection is performed to ensure the quality of the ingot. Physical performance
test to ensure product performance.
Third-party testing institutions: SGS, TUV, BV etc.
3. Advantages of Titanium Materials
Characters of Titanium | |
1. High Strength | Titanium strength/density ratio is better than other metals, components with high strength, good rigity, less weight can be made out of titanium. Titanium is applied for aircrafts engines, frames, skins, fastners and landing gears. |
2. Anti-Corrosion | Compared with stainless steel, titanium alloy's corrosion is better in moisture laden air, seawater, titanium greatly resists spot corrosion, acid corrosion and stress corrosion. Titanium resists corrosions to alkali, chloride, chlorinated organic sunstances, sulphuric acid, nitric acid. |
3. High-Temperature Resistance | Titanium application temperature's higher than aluminium alloys. Titanium can work in 450-500℃ for long time. Titanium alloy stil prossesses high strength when working in 150-500℃. Titanium working temperature can be reached to 500℃ |
4. Chemical requirements
N | C | H | Fe | O | Al | V | Pd | Mo | Ni | Ti | |
Gr1 | 0.03 | 0.08 | 0.015 | 0.20 | 0.18 | / | / | / | / | / | bal |
Gr2 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | / | / | / | bal |
Gr5 | 0.05 | 0.08 | 0.015 | 0.40 | 0.20 | 5.5~6.75 | 3.5~4.5 | / | / | / | bal |
Gr7 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | 0.12~0.25 | / | / | bal |
Gr9 | 0.03 | 0.08 | 0.015 | 0.25 | 0.15 | 2.5~3.5 | 2.0~3.0 | / | / | / | bal |
Gr12 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | / | 0.2~0.4 | 0.6~0.9 | bal |

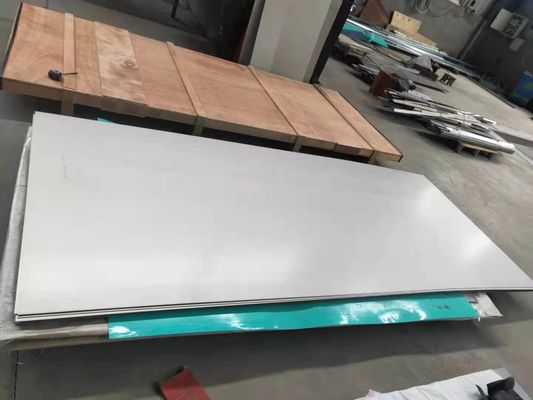

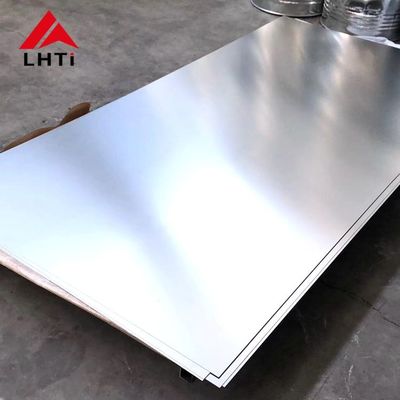

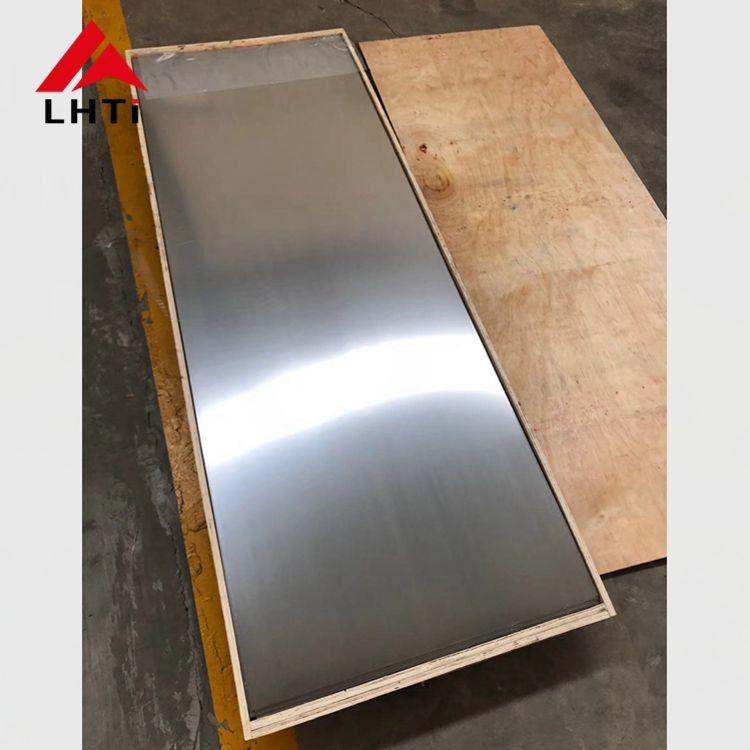

5. Detailed Images
6.Packaging and shipping
Standard export packaging
Small size titnium sheets, each will be wrapped by white paper.
Big size titanium sheets, there will be a pearl cotton between each sheet to apart them and reduce
collisions and friction.
Inside use foam and pearl cotton padding to protect cargo,to ensure the safety of long-distance
transportation.
Main cooperating courier companies:TNT FedEx DHL UPS, and choose the most favorable courier
company for customers according to different countries.
For air and sea shipping, we always choose the fastest and safe route.
7. FAQ
Q1.--How can you ensure the product quality?
--All products are manufactured according to ASTM standard (Bolts are according to ASME
standard and DIN standard),and we make 100% inspection before shipment,also we can provide the
MTC Material Test Certification.
Q2.--Can you print our LOGO on the products?
--Sure, and we welcome the customized products.
Q3.--Can we get the free sample?
--Sure.
Q4.--What about the payment terms?
--T/T, L/C,Paypal,Western Union,Escrew and MoneyGram etc are all accepted.
05.--What is the necessary information for a inquiry?
--Product name, specification, material grade and quantity. If customized products, your drawing and
special requests also needed.
