Home > products > Titanium Tube > ASTM B 338 Titanium Heat Exchanger Pipe Gr1 Gr2 titanium tube

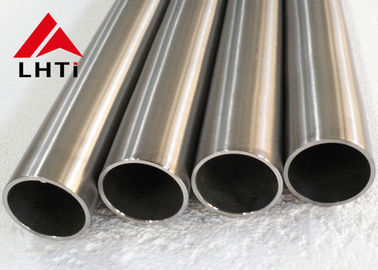

ASTM B 338 Titanium Heat Exchanger Pipe Gr1 Gr2 titanium tube

Product Details

Place of Origin: China

Brand Name: LH

Certification: ISO9001:2015

Model Number: LHTG

Payment & Shipping Terms

Minimum Order Quantity: 100kg

Price: USD15.00-29.00 per kg

Packaging Details: Standard export packing

Delivery Time: 7-25days

Payment Terms: L/C, T/T, Western Union, MoneyGram

Supply Ability: 50000 kg per month

Get Best Price
Highlight:

welding titanium tubing

,

titanium round tube

Grade:
Gr1 Gr2
Outer Diameter:
3mm -57mm
Material:
Titanium
Standard:
ASTM B338 GB/T3625-1995
Length:
0- 6000mm
Technique:
Seamless Or Welding
Wall Thickness:
Requirement
Product Name:
Titanium Tube
Surface:
Polishing Or As Your Request
Color:
Metal
Grade:
Gr1 Gr2
Outer Diameter:
3mm -57mm
Material:
Titanium
Standard:
ASTM B338 GB/T3625-1995
Length:
0- 6000mm
Technique:
Seamless Or Welding
Wall Thickness:
Requirement
Product Name:
Titanium Tube
Surface:
Polishing Or As Your Request
Color:
Metal
ASTM B 338 Titanium Heat Exchanger Pipe Gr1 Gr2 titanium tube

Good performance titanium heat exchanger pipe ASTM B 338 Gr1 Gr2 titanium tube





1. Titanium tube advantage and application



Heat exchange tube -- pure titanium tube, standard ASTM B 338, brand GR1Gr2, titanium tube before the products are strictly tested to ensure no leakage.


Titanium corrosion resistance, titanium tube heat exchanger can effectively extend the service life of the heat exchanger in special occasions, and maintenance costs are lower than other types of heat exchangers, titanium also has the advantages of small size, lightweight, and high heat transfer efficiency.



Titanium tube heat exchangers can be widely used in swimming pools, aquariums, aquariums, Marine baths, electroplating tanks, Marine heating, and cooling equipment and chemical cooling systems.



It can also be used for the main purpose of corrosion protection, such as seawater utilization and surface treatment industry. In addition, titanium tube heat exchanger can also be used in food, distilled water, pure water, brewing, beer, beverage, soilless cultivation, medicine, and cosmetics industry by taking advantage of the characteristic that titanium metal ions do not lose.



It also can be used in the field of environmental protection, such as waste gas condensation recovery, pollutants (solvent) recovery and other aspects.



2. Chemical requirements



ASTM No. Fe max O max N max C max H max Pd Al Bal
Grade 2 0.3 0.25 0.03 0.1 0.015 - - Ti


3. Tensile requirements



ASTM Grade Alloy Composition Tensile Strength Yield Strength Elongation min %
KSI Mpa KSI Mpa
Grade 2 Unalloyed Ti ("Pure") 50A -CP2 58 400 40 275 25





ASTM B 338 Titanium Heat Exchanger Pipe Gr1 Gr2 titanium tube 0

ASTM B 338 Titanium Heat Exchanger Pipe Gr1 Gr2 titanium tube 1

ASTM B 338 Titanium Heat Exchanger Pipe Gr1 Gr2 titanium tube 2

ASTM B 338 Titanium Heat Exchanger Pipe Gr1 Gr2 titanium tube 3ASTM B 338 Titanium Heat Exchanger Pipe Gr1 Gr2 titanium tube 4



Company Background



Baoji Lihua Non-ferrous Metals Co., Ltd, founded in 2006, lies in Tai Cheng road Baoji city---It is famous for manufacturing titanium, called “China Titanium Valley”.



As a leading manufacturer of titanium products for over 14 years, we supply a series of high-performance products, such as titanium bar, titanium tubes, titanium sheets, titanium fasteners, etc. Our products were sold to Asia, Europe, North America in large quantity. In addition, to provide a preferential price for customers, we pay much attention to quality and have a good after-sales service.

ASTM B 338 Titanium Heat Exchanger Pipe Gr1 Gr2 titanium tube 5

ASTM B 338 Titanium Heat Exchanger Pipe Gr1 Gr2 titanium tube 6

ASTM B 338 Titanium Heat Exchanger Pipe Gr1 Gr2 titanium tube 7



4. Cooperation with us will provide you a strong guarantee:


1.ISO9001:2015
2. The timely delivery rate is 99.8%, sometimes in advance.
3.Excellent after-sale service.
4.Rapid inquiry reply, within 2 hours.
5.Fair payment term
6.Professional technical adviser
7.Material certificate
8.Quality is strictly according to ASTM,DIN,UNS,GB/T standard(manufacturing process,surface treatment,inspections and testing).



5. FAQ



1. Any discount?
A: The prices we quote are all wholesale prices in the first place. Meanwhile, our best price will be offered according to your order quantity, so please specify your purchase quantity when you inquire. The more your order, the better discounts we will offer.



2. Are you a manufacturer?
A: Yes. As a manufacturer with 13 years of experience, we’ve gained adequate expertise and proficiency. Relying on our own factory, we offer you our best quality products as we have fully equipped the Product Department and QC Department.



3. How do I know if my products are delivered?
A: We will inform you Tracking No. for your reference or you can contact us anytime for shipment information.



4. Has your company acquired any certificate?
A: We are a certified manufacturer with our auto parts approved by the ISO9001 Quality Management System.



5. How about the quality of the products?
A: We guarantee strict control over every detail of the products. Each product is carefully inspected and tested before delivery.



6. What about payment terms?
A: T/T, L/C, Western Union Paypal are accepted.



7. How is your MOQ?
A: The minimum quantity for certain items is only 20pcs. But MOQ can be lowered when you buy several different kinds of products together. For more details, please feel free to contact us at any time.



8. How about the delivery time?
A: Usually within 5-7 days via express delivery. But it depends on your order quantity as well.



9. If you have additional questions, please feel free to contact us.
