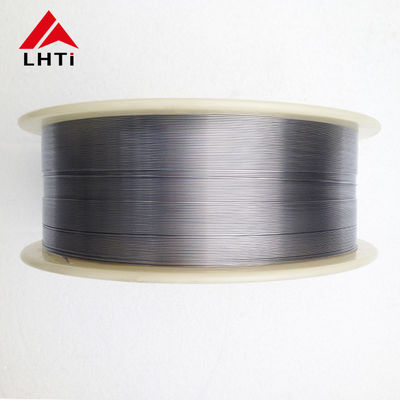

Grade 5 Ti6Al4V Titanium Alloy Wire

Brand Name:	LH
Model Number:	LHTS
MOQ:	50 kgs
Price:	USD15.5-39.5 per kg
Payment Terms:	D/A, D/P, T/T, Western Union, L/C
Supply Ability:	50000 kgs per month

Detail Information

Product Description

Detail Information

Place of Origin:

Baoji ,Shaanxi ,China

Certification:

ISO9001:2015; SGS;BV;TUV

Standard:

AWS A5.16/AMSE SFA 5.16

Grade:

Erti-2 Erti-5 Erti-7(Gr2 Gr5 Gr7)

Diameter:

1.0mm 1.6mm 2mm 2.4mm 3mm 3.2mm Etc.

Length:

1000mm 2000mm 3000mm, Or As Customers' Requets

Material:

Pure Titanium, Alloy Titanium

Shape:

Straight, Spool, Coil

Product Name:

Titanium Welding Wire

Surface:

Pickled, Polished

Packaging Details:

Inside Plastic bag with laber, outside plastic box, then carton box/plywood case

Supply Ability:

50000 kgs per month

Highlight:

titanium alloy wire

pure titanium wire

Product Description

Grade 5 Ti6Al4V titanium wire alloy 1mm 2mm coil straight spool

Standards: ASTM B863 AWS A5.16

Specification:

A, Common titanium wire: φ0.8-φ6.0mm

B. Titanium wire for glasses: φ1.0-φ6.0

C. Titanium wire for hangers: φ0.2-φ8.0mm

Grades:GR1, GR2, GR3, GR5(Ti6Al4V), Gr7 (Ti-0.2Pd), Gr9(Ti-3Al-2.5V), Gr12 (Ti-0.3Mo-0.8Ni) etc.

State: annealed state (M) hot-worked state (R) cold-worked state (Y) (annealed, supersonic flaw detection)

Surface treatment: pickled,polished surface

Surface quality: high precision, good finish, no oxidation color, no cracks, peeling, thorns, marks and inclusions.

Minor local scratches, abrasions, spots and pits that do not exceed the allowable deviation of the wire diameter are allowed.

Application area: Welding ,plating hangers, military, medical, sporting goods, glasses,jewelry and other industries.

Advantages: corrosion resistance, high temperature resistance, low temperature resistance, non-toxic and non-magnetic,

high strength, small thermal conductivity, etc.

Titanium wire for welding:

Grade 5 Ti6Al4V Titanium Alloy Wire 0

Titanium wire for medical:

Grade 5 Ti6Al4V Titanium Alloy Wire 1

Mechanical Properties:

Grade	Material	Tensile strength (Min Mpa)	Yiel strength 0.2% offset yield (Min Mpa)	Elongation in 2 or 50mm (Min %)
1	Pure Ti	245	170	20
2	Pure Ti	345	275	18
3	Pure Ti	450	380	18
5	Alloy Ti (Ti6Al4V)	895	828	10
7	Alloy Ti (Ti-0.2Pd)	345	275	18
9	Alloy Ti (Ti-3Al-2.5V)	620	483	15
12	Alloy Ti (Ti-0.3Mo-0.8Ni)	483	345	18

Shipping:

Coil wire and spool wire: wrap a plastic film on the wire and fill with pearl cotton and foam film in the middle

to protect it, then carton or plywood box.
Straight wire:Inside plastic bag, outside plastic box, and finally carton or plywood box.

Grade 5 Ti6Al4V Titanium Alloy Wire 2

Company Information

Grade 5 Ti6Al4V Titanium Alloy Wire 3

Baoji Lihua Non-ferrous Metals Co., Ltd, founded in 2006, lies in Tai Cheng road Baoji city---It is famous for manufacturing titanium, called “The Titanium Valley of China ”.We are specialized in manufacturing, researching and marketing for titanium mill products and equipment. With 10 years export Experience, our products was sold to Asia, Europe, North America in large quantity.In addition to provide preferential price for customers, we pay much attention to quality, and have a good after-sales service.All products we produced are based on the standard: German standard ,Aerospace standard, European standard, etc. Including ANSI/ASME/ASTM, JIS, DIN etc. Lihua is certified by ISO9001:2015 and IQNET. Our company's products have passed SGS,BV, LR'S ,TUV and other international inspection agency inspection.
