ASTM B338 Gr2 Titanium Seamless Tube

Brand Name:	LIHUA
Model Number:	LH-TG
MOQ:	500kg
Price:	US dollar $25/kg--US dollar $40/kg
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	10000kgs per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO9001, TUV

Product Name:

Titanium Tubing

Standard:

ASTM B338

Material:

Gr2

Application:

Heat Exchanger

Type:

Seamless

Shape:

Round

Outer Diameter:

3-114mm

Wall Thickness:

0.5-7mm

Length:

Max 12000mm

Surface:

Bright

Packaging Details:

Wrapped by plastic bag with plywood box for export outside

Supply Ability:

10000kgs per month

Highlight:

titanium round tube

titanium welded pipe

Product Description

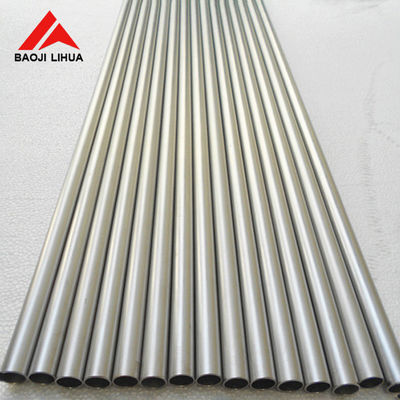

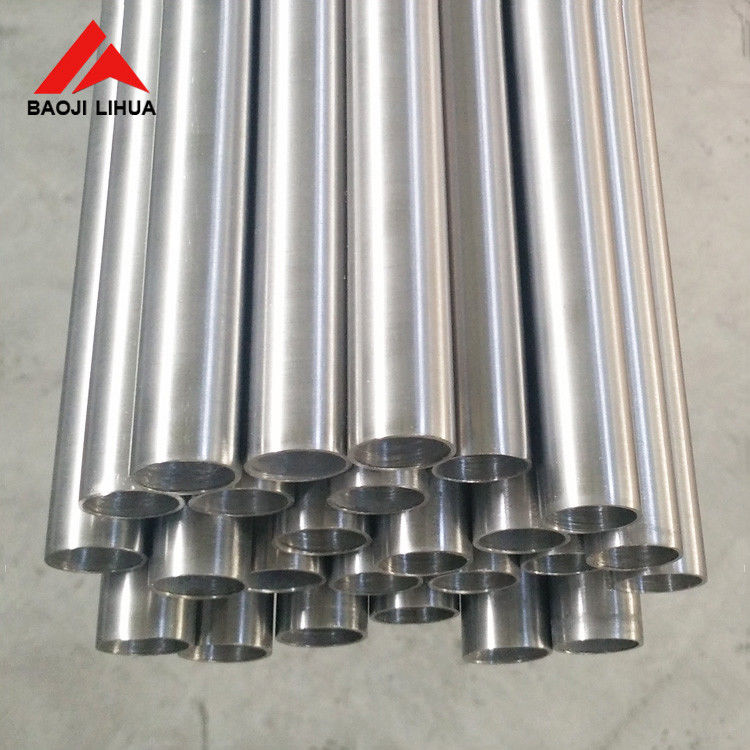

ASTM B338 Gr2 Titanium Seamless Tube

This high-pressure titanium seamless tube is produced to ASTM B338 in Gr2 for heat exchangers and condensers. It is supplied in round shape with an outer diameter of 3-114 mm and a wall thickness of 0.5-7 mm, in lengths up to 12000 mm, with a bright, polished or pickled surface. Titanium tube has excellent corrosion resistance and a long service life, and a full set of ASTM B338 tests or a third-party test such as BV, SGS or TUV can be provided.

ASTM B338 Gr2 titanium seamless tube

Titanium heat exchanger tube

Technical Specifications

Product name	Titanium tubing
Standard	ASTM B338
Material	Gr2 (Gr1, Gr7, Gr9, Gr12 also available)
Type	Seamless
Shape	Round
Outer diameter	3 mm - 114 mm
Wall thickness	0.5 mm - 7 mm
Length	Max 12000 mm
Surface	Bright; polishing, pickling
Application	Heat exchanger, condenser

Available Sizes

Item	Value
Outer diameter range	3 mm - 114 mm
Common outer diameter	9.52, 12.7, 19, 25.4, 32, 38 mm
Wall thickness	0.5 - 7 mm, commonly 0.5 - 1.5 mm
Length	3000 - 6000 mm, or up to 12000 mm
Customization	Made to your requirement

Tensile Requirements

Grade	Tensile Strength min ksi [MPa]	Yield Strength min ksi [MPa]	Elongation %
1	35 [240]	20 [138]	24
2	50 [345]	40 [275]	20
7	50 [345]	40 [275]	20
9	90 [620]	70 [438]	15
12	70 [438]	50 [345]	18

Applications & Titanium Advantages

This titanium tube is used for heat exchangers and condensers, and in chemical, marine and general industrial piping. Titanium offers excellent corrosion resistance and a long service life, and the seamless construction keeps the tube strong and leak-free under pressure, so it is well suited to seawater and chemically aggressive media.

Quality, Customization & Inquiry

Baoji Lihua has manufactured titanium products for over 16 years and provides a full set of ASTM B338 tests, or a third-party test such as BV, SGS or TUV, on request. Custom outer diameters, wall thicknesses and lengths are available, wrapped in a plastic bag with a plywood box for export. Please send your specification for a quotation.
