Product Details
Place of Origin: China
Brand Name: LH
Certification: ISO9001:2015; TUV; SGS;BV
Model Number: LHTS
Payment & Shipping Terms
Minimum Order Quantity: 1kg
Price: USD15.00-29.00 per kg
Packaging Details: Plastic bag with laber, outside plastic box, then plywod box
Delivery Time: 5-20 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 20000 kg per month
Material: |
Pure Titanium, Alloy Titanium |
Length: |
1000mm |
MOQ: |
1kg |
Grade: |
Erti-1 Erti-2 Erti-4 |
Diameter: |
2mm 2.4mm 3mm 3.2mm Or As Your Request |
Shape: |
Straight, Spool, Coil |
Application: |
Welding |
Product Name: |
Titanium Welding Wire |
Material: |
Pure Titanium, Alloy Titanium |
Length: |
1000mm |
MOQ: |
1kg |
Grade: |
Erti-1 Erti-2 Erti-4 |
Diameter: |
2mm 2.4mm 3mm 3.2mm Or As Your Request |
Shape: |
Straight, Spool, Coil |
Application: |
Welding |
Product Name: |
Titanium Welding Wire |

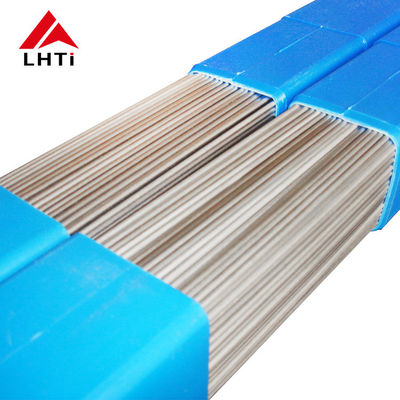

Dia1.6mm 2.4mm 3.2mm L1000mm Erti-1 Erti-2 titanium welding wire
1. Tensile Requirements
ERTi | Tensile strength(min) | Yeild strength(min) | Elongation(%) | ||
ksi | MPa | ksi | MPa | ||
1 | 35 | 240 | 20 | 138 | 20 |
2 | 50 | 345 | 40 | 275 | 18 |
5 | 130 | 895 | 120 | 828 | 10 |
7 | 50 | 345 | 40 | 275 | 18 |
9 | 90 | 620 | 70 | 483 | 15 |
12 | 70 | 483 | 50 | 345 | 18 |
2.Guide to choose of filler metal for general-purpose titanium welding
ASTM Base Metal Grade | Base metal | Normal composition | Recommended Filler Metal | |
UTS(min.) ksi[Mpa] | YS(min.) ksi[Mpa] | |||
Grade 1 | 35[240] | 20[138] | Unalloyed Ti CP1 | ERTi-1 |
Grade 2 | 50[345] | 40[275] | Unalloyed Ti CP2 | ERTi-2 |
Grade 4 | 80[550] | 70[483] | Unalloyed Ti CP4 | ERTi-4 |
Grade 5 | 130[895] | 120[828] | Ti 6AL-4V | ERTi-5 |
Grade 7 | 50[345] | 40[275] | Ti 0.15Pd | ERTi-7 |
3.Chemical composition requirements
AWS | CHEMICAL SPECIFICATIONS | ||||||||
AWS A5.16 | UNS | C | O | N | H | I | Al | V | Pd |
Number | |||||||||
ERTi 1 | R50100 | 0.03 | 0.03-0.10 | 0.012 | 0.005 | 0.08 | - | - | - |
ERTi 2 | R50120 | 0.03 | 0.08-0.16 | 0.015 | 0.008 | 0.12 | - | - | - |
ERTi 4 | R50130 | 0.03 | 0.08-0.32 | 0.025 | 0.008 | 0.25 | - | - | - |
ERTi 5 | R56400 | 0.05 | 0.12-0.20 | 0.03 | 0.015 | 0.22 | 5.5-6.7 | 3.5-4.5 | - |
ERTi 7 | R52401 | 0.03 | 0.08-0.16 | 0.015 | 0.008 | 0.12 | - | - | 0.12-0.25 |
4. Cooperation with us will provide you a strong guarantee.
1.ISO9001:2015
2. The timely delivery rate is 99.8%, sometimes in advance.
3.Excellent after-sale service.
4.Rapid inquiry reply, within 2 hours.
5.Fair payment term
6.Professional technical adviser
7.Material certificate
8.Quality is strictly according to ASTM,DIN,UNS,GB/T standard(manufacturing process,surface treatment,inspections and testing).
FAQ
1. Any discount?
A: The prices we quote are all wholesale prices in the first place. Meanwhile, our best price will be offered according to your order quantity, so please specify your purchase quantity when you inquire. The more your order, the better discounts we will offer.
2. Are you a manufacturer?
A: Yes. As a manufacturer with 13 years of experience, we’ve gained adequate expertise and proficiency. Relying on our own factory, we offer you our best quality products as we have fully equipped the Product Department and QC Department.
3. How do I know if my products are delivered?
A: We will inform you Tracking No. for your reference or you can contact us anytime for shipment information.
4. Has your company acquired any certificate?
A: We are a certified manufacturer with our auto parts approved by the ISO9001 Quality Management System.
5. How about the quality of the products?
A: We guarantee strict control over every detail of the products. Each product is carefully inspected and tested before delivery.
6. What about payment terms?
A: T/T, L/C, Western Union Paypal are accepted.
7. How is your MOQ?
A: The minimum quantity for certain items is only 20pcs. But MOQ can be lowered when you buy several different kinds of products together. For more details, please feel free to contact us at any time.
8. How about the delivery time?
A: Usually within 5-7 days via express delivery. But it depends on your order quantity as well.
9. If you have additional questions, please feel free to contact us.
