Product Details
Place of Origin: China
Brand Name: LHTi
Certification: ISO9001:2015; TUV; SGS; BV
Model Number: Titanium ring
Payment & Shipping Terms
Minimum Order Quantity: 3 PCS
Price: USD12.00-35.00 per kg
Packaging Details: Plywood box with soft foam for additional protection against any shipping-induced trauma
Delivery Time: 12-25 work days
Payment Terms: T/T, MoneyGram, L/C, Western Union, Paypal
Supply Ability: 200000 kg per month
Standard: |
ASTM B381 |
Production Process: |
Hot Rolled/Annealed |
Characteristic 1: |
Excellent Corrosion Resistance |
Wall Thickness: |
0.5mm-25mm |
Application: |
Chemical Engineering & Petrochemical Technology |
Surface: |
Bright Polished |
Standard: |
ASTM B381 |
Production Process: |
Hot Rolled/Annealed |
Characteristic 1: |
Excellent Corrosion Resistance |
Wall Thickness: |
0.5mm-25mm |
Application: |
Chemical Engineering & Petrochemical Technology |
Surface: |
Bright Polished |

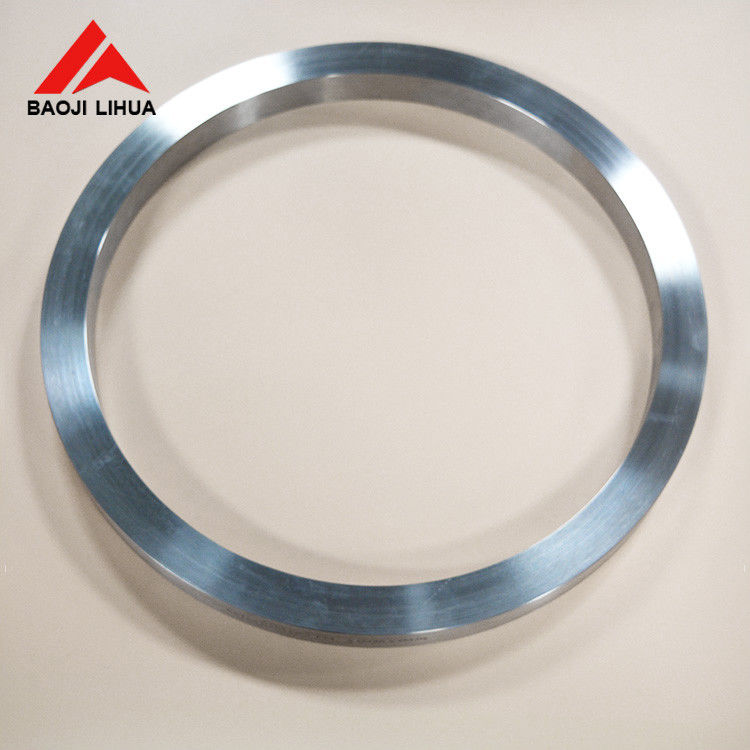

Customized ASTM B381 gr2 gr5 gr7 gr12 titanium ring dia 25mm 40mm 100mm
1. Specifications
A. Standard: ASTM B381
B. Grade: GR1,GR2,GR5,GR7,GR9,GR12
C. Dimensions:
Outside Diameter: 200~400 400~700 700~900 900~1300
Inside Diameter: 100~300 150~500 300~700 400~900
Height: 20~150 30~250 35~300 50~400
2. Chemical Requirements
| N | C | H | Fe | O | Al | V | Pd | Mo | Ni | Ti | |
| Gr1 | 0.03 | 0.08 | 0.015 | 0.20 | 0.18 | / | / | / | / | / | bal |
| Gr2 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | / | / | / | bal |
| Gr5 | 0.05 | 0.08 | 0.015 | 0.40 | 0.20 | 5.5~6.75 | 3.5~4.5 | / | / | / | bal |
| Gr7 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | 0.12~0.25 | / | / | bal |
| Gr9 | 0.03 | 0.08 | 0.015 | 0.25 | 0.15 | 2.5~3.5 | 2.0~3.0 | / | / | / | bal |
| Gr12 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | / | 0.2~0.4 | 0.6~0.9 | bal |
3. Application for titanium ring for industry using
1)Aeronautic 2)Medical 3)Chemical engineering & Petrochemical technology 4)Electrolysis 5)Electroplating
4. Physical Properties
| Physical Properties | |||||
| Tensile Strength(min) | Yield Strength(min) | Elongation(%) | |||
| ksi | MPa | ksi | MPa | ||
| Grade 1 | 35 | 240 | 20 | 138 | 24 |
| Grade2 | 50 | 345 | 40 | 275 | 20 |
| Grade 3 | 65 | 450 | 55 | 380 | 18 |
| Grade 4 | 80 | 550 | 70 | 483 | 15 |
| Grade 5 | 130 | 895 | 120 | 828 | 10 |
| Grade 7 | 50 | 345 | 40 | 275 | 20 |
| Grade 9 | 90 | 620 | 70 | 483 | 15 |
| Grade 12 | 70 | 483 | 50 | 345 | 18 |
| Grade 23 | 120 | 828 | 110 | 759 | 10 |
5. Detailed Images
6. FAQ
| FAQ |
| Q1.--How can you ensure the product quality? |
|
--All products are manufactured according to ASTM standard (Bolts are according to ASME MTC Material Test Certification. |
| Q2.--Can you print our LOGO on the products? |
| --Sure, and we welcome the customerized products. |
| Q3.--Can we get the free sample? |
| --Sure. |
| Q4.--What about the payment terms? |
| --T/T, L/C,Paypal,Western Union,Escrew and MoneyGram etc are all accepted. |
| Q5.--Do you have your website? |
| --Yes, Please click here. http://www.metalstitanium.com(Independent website) |
| Q6.--What is the necessary information for a inquiry? |
|
--Product name, specification, material grade and quantity. If customized products, your drawing and special requests also needed. |
7. Quality Assurance
A. According to globally recognized standards, such as ASTM, AMS, ASME. Provide third-party inspection reports. ISO Quality Management System.
B. Visual inspection to check surface quality, ensuring without flaw, black dot and other defects.
C. Chemical Composition making sure all chemical components can satisfy customer’s demands.
D. Mechanical Property testing making sure all titanium products have satisfying mechanical features before delivery.
8. Service
