Product Details
Place of Origin: BaoJi Shaanxi China
Brand Name: LHTI
Certification: ISO9001
Model Number: LH-01
Payment & Shipping Terms
Minimum Order Quantity: 100 kgs
Price: USD $19.5-$28.5 / kg
Packaging Details: Standard exporting packaging, plywood case outside
Delivery Time: 7-25 working days
Payment Terms: T/T, Western Union, L/C, D/A, D/P
Supply Ability: 100 tons per month
Material: |
Pure Titanium Gr1 Gr2 |
Purity: |
99.5% Min |
Length: |
Max 16000mm |
Surface: |
Pickling Surface/Polished |
Diameter: |
10-57mm |
Wall Thickness: |
0.5-1.5mm |
Technique: |
Seamless, Welded |
Application: |
Heat Exchanger, Chemical Industry Etc. |
Material: |
Pure Titanium Gr1 Gr2 |
Purity: |
99.5% Min |
Length: |
Max 16000mm |
Surface: |
Pickling Surface/Polished |
Diameter: |
10-57mm |
Wall Thickness: |
0.5-1.5mm |
Technique: |
Seamless, Welded |
Application: |
Heat Exchanger, Chemical Industry Etc. |

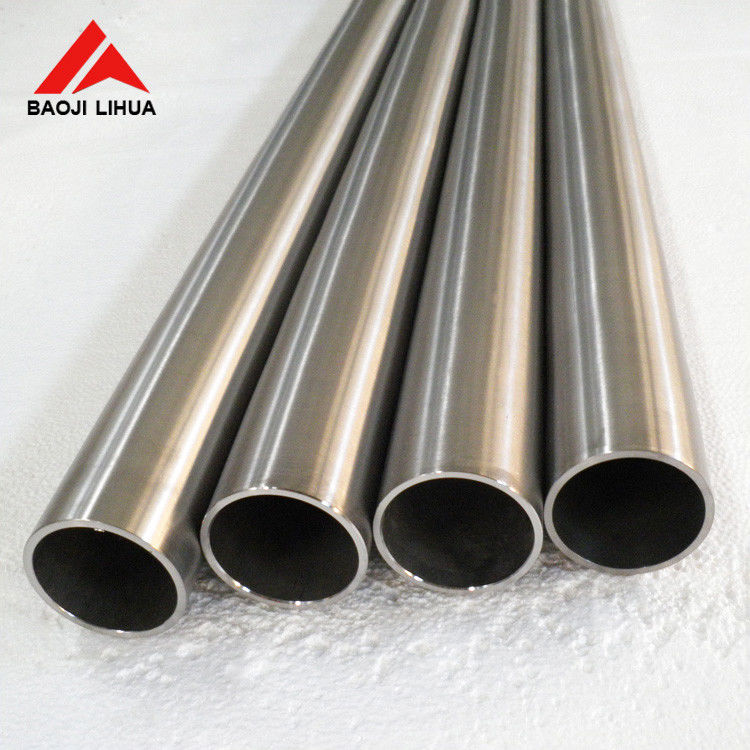

Heat Exchanger ASTM B338 titanium tubes pipes seamless
The titanium tubes of ASTM B338 are strict requirements for quality. Our company produces
this tube in accordance with the standard strictly. In addition to ensuring size, chemical
composition, physical properties, and good surfaces, we always do all quality inspections strictly
in accordance with ASTM B338 standards. Including hydraulic test, flaw detection, Ultrasonic
Testing, flattening test, etc. If customers require third party testing, like TUV, SGS, BV, etc.,
we welcome for that.
Product information:
| Name | Titanium pipe / tube |
| Material | Gr1,Gr2 |
| Standard | ASTM B338 |
| Type |
Seamless/welded |
| OD | 12.7mm 15mm 19.1mm 24.5mm 33.4mm 38.1mm 45mm 57mm, or as customer's request |
| Wall Thickness | 0.5-1.5mm , or as customer's request |
| Length | Max 16000mm |
| Technique | Rolled |
| status | Annealed |
| Certificate | EN 10204/3.1B, Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report---TUV,BV,SGS etc |
| Application |
Heat Exchangers,Chemical industry |
Chemical composition (Wt%)
| ASTM No. | Fe max | O max | N max | C max | H max | Pd | Al | Bal |
| Grade 1 | 0.2 | 0.18 | 0.03 |
0.1 |
0.015 |
- | - | Ti |
| Grade 2 | 0.3 | 0.25 | 0.03 | 0.1 | 0.015 | - | - | Ti |
Physical Properties (Min)
| ASTM Grade | Alloy Composition | Tensile Strength | Yield Strength | Elongation min % | ||
| ksi | Mpa | ksi | Mpa | |||
| Grade 1 | Unalloyed Ti ("Pure") 35A -CP1 | 35 | 240 | 25 | 170 | 30 |
| Grade 2 | Unalloyed Ti ("Pure") 50A -CP2 | 58 | 400 | 40 | 275 | 25 |
Pickling surface Titanium tubes
Polished surface Titanium tubes
Factory pictures:
Baoji Lihua Non-ferrous Metals Co., Ltd, founded in 2006, lies in Tai Cheng road Baoji city
---It is famous for manufacturing titanium, called “China Titanium Valley”.
We are specialized in manufacturing, researching and marketing titanium mill products and
equipment. With 10 years export Experience, our products was sold to Asia, Europe, North
America in large quantity.In addition to provide preferential price for customers, we pay much
attention to quality, and have a good after-sales service.
The third party test report:
Do not hesitate to contact us!
