Home > products > Titanium Rod > Cold Drawn 10mm Titanium Rod , Gr5 Gr9 Gr12 Titanium Hex Rod Length 3000mm

Cold Drawn 10mm Titanium Rod , Gr5 Gr9 Gr12 Titanium Hex Rod Length 3000mm

Product Details

Place of Origin: China

Brand Name: LHTi

Certification: ISO9001:2015

Model Number: Titanium rod

Payment & Shipping Terms

Minimum Order Quantity: 50 kg

Price: USD20.00-31.00 per kg

Packaging Details: Plywood box with soft foam inside for additional protection against any shipping-induced trauma

Delivery Time: 18-25 work days

Payment Terms: T/T, MoneyGram, L/C, Western Union

Supply Ability: 300000 kg per month

Get Best Price
Highlight:

titanium alloy rod

,

solid titanium rod

Material:
Pure Titanium, Alloy Titanium
Color:
Natural
Surface:
Bright,Polished,Pickling
Condition:
Annealed
MOQ:
50 Kg
Diameter:
3mm-350mm
Material:
Pure Titanium, Alloy Titanium
Color:
Natural
Surface:
Bright,Polished,Pickling
Condition:
Annealed
MOQ:
50 Kg
Diameter:
3mm-350mm
Cold Drawn 10mm Titanium Rod , Gr5 Gr9 Gr12 Titanium Hex Rod Length 3000mm



gr2 gr5 gr9 gr12 titanium rod round hex shape dia10mm 25mm 30mm length 3000mm





1. Product Information





Item
gr2 gr5 gr9 gr12 titanium rod round hex shape dia10mm 25mm 30mm length 3000mm
Material
ASTM:GR1, GR2, GR3, GR4, GR5, GR6, GR7, GR9, GR11, GR12, etc.
GB: TA0, TA2, TA3, TA5, TA6, TA7, TA9, TA10, TB2, TC1, TC2, TC3, TC4, etc.
Size
Diameter: 0.1-600mm
Length: 1m, 2m, 3m, 6m or as requirements.
Technique
Hot Forged; Hot Rolled; Cold drawn.
Application
Metallurgy, electronics, medical, chemical, petroleum, pharmaceutical, aerospace, etc.







A. Standard: ASTM B348, ASTM B381, AMS 4928.



B. Diameter size in stock: 3mm/6mm/8mm/10mm/20mm/30mm, length: 1000mm-6000mm, or cutting to your needed length



C. Shape: Round bar, square bar , hex bar



D. Feature: 1.Polished surface without any defects free from cracks no pitting.

                  2.Two ends flatting making sure length tolerance and good looking.


F. Process: Hot forging-hot rolling-turning light (polishing)

Executive standard:

National standard: GB / 2965-2007, GB / T13810, Q / BS5331-91

American Standard: ASTM B348, ASTM F136, ASTM F67, AMS4928

Specifications: (Diameter * Length / mm): 8mm-250mm * L

Delivery status: hot processing status, annealing status



skills requirement

1. The chemical composition of titanium and titanium alloy bars shall comply with the provisions of GB / T 3620.1, and when repeated inspection is required, the allowable deviation of the chemical composition shall comply with the provisions of GB / T 3620.2.

2. The diameter or side length of the hot-processed bar and its allowable deviation should meet the requirements of Table 1.

3. After hot processing, the rods are cold-rolled (ground) and cold-rolled. The allowable deviation of the diameter of the cold-drawn rods should comply with industry regulations.

4. The out-of-roundness of the bar after turning (grinding) after hot processing should be no more than half of its dimensional tolerance.

5. The length of the indeterminate length of the processed bar is 300-6000mm, and the length of the annealed bar is 300-2000mm. The length of the fixed length or double length should be within the range of the length of the indefinite length. ; The length of the double ruler should also be included in the cut amount of the bar, each cut amount is 5mm. The fixed ruler or double ruler length should be indicated in the contract.




Application

Aerospace, aviation, navigation, ships, seawater desalination, petroleum, chemical industry, mechanical equipment, nuclear power equipment, power equipment, automobile and motorcycle parts, sports and leisure, medical parts, steel and metallurgy, high-tech fields.

Medical titanium rod
Specification: Rolling ¢ 8.0 --- 40mm × L; Forging ¢ 40 --- 150mm × L

Metallographic structure: The grain size of pure titanium is not less than 5 grades, and the TC4 titanium alloy complies with A1-A9.

Surface: black leather surface, car polished surface, polished surface (H11, H9, H8)

Medical titanium rod performance (refer to executive standard: GB / T13810-2007, ASTM F67 / F136)







2. Physical Properties



Physical Properties
  Tensile Strength(min) Yield Strength(min) Elongation(%)
ksi MPa ksi MPa
Grade 1 35 240 20 138 24
Grade2 50 345 40 275 20
Grade 3 65 450 55 380 18
Grade 4 80 550 70 483 15
Grade 5 130 895 120 828 10
Grade 7 50 345 40 275 20
Grade 9 90 620 70 483 15
Grade 12 70 483 50 345 18
Grade 23 120 828 110 759 10







3. Chemical requirements



  N C H Fe O Al V Pd Mo Ni Ti
Gr1 0.03 0.08 0.015 0.20 0.18 / / / / / bal
Gr2 0.03 0.08 0.015 0.30 0.25 / / / / / bal
Gr5 0.05 0.08 0.015 0.40 0.20 5.5~6.75 3.5~4.5 / / / bal
Gr7 0.03 0.08 0.015 0.30 0.25 / / 0.12~0.25 / / bal
Gr9 0.03 0.08 0.015 0.25 0.15 2.5~3.5 2.0~3.0 / / / bal
Gr12 0.03 0.08 0.015 0.30 0.25 / / / 0.2~0.4 0.6~0.9 bal







Titanium Round Bar
Diameter (Inches) Appx. Weight Per Foot Diameter (Inches) Appx. Weight Per Foot
0.1875 .05 3.25 16.22
0.25 .10 3.5 18.82
0.3125 .15 3.75 21.60
0.375 .22 4.0 24.58
0.4375 .29 4.25 27.74
0.5 .38 4.5 31.10
0.5625 .48 4.75 34.01
0.625 .60 5.0 37.68
0.6875 .71 5.25 41.54
0.75 .86 5.5 46.46
0.8125 .99 5.75 49.83
0.875 1.18 6.0 55.30
0.9375 1.32 6.25 58.88
1.0 1.54 6.5 64.80
1.125 1.94 7.0 75.30
1.25 2.40 7.5 86.40
1.375 2.90 8.0 98.30
1.5 3.46 8.25 104.60
1.625 3.98 8.5 111.00
1.750 4.62 9.0 124.40
1.875 5.40 9.5 138.60
2.0 6.14 10.0 153.60
2.25 7.78 11.0 185.90
2.375 8.50 12.0 212.20
2.5 9.60 13.0 259.60
2.625 10.58 14.0 301.10
2.75 11.62 15.0 351.40
3.0 13.82 16.0 385.90







4. Production Process





Titanium rod processing Flow:



Titanium Sponge and master alloys Compacting electrodes Melting → Forging → Billets → Procision forging → Machining → Bars

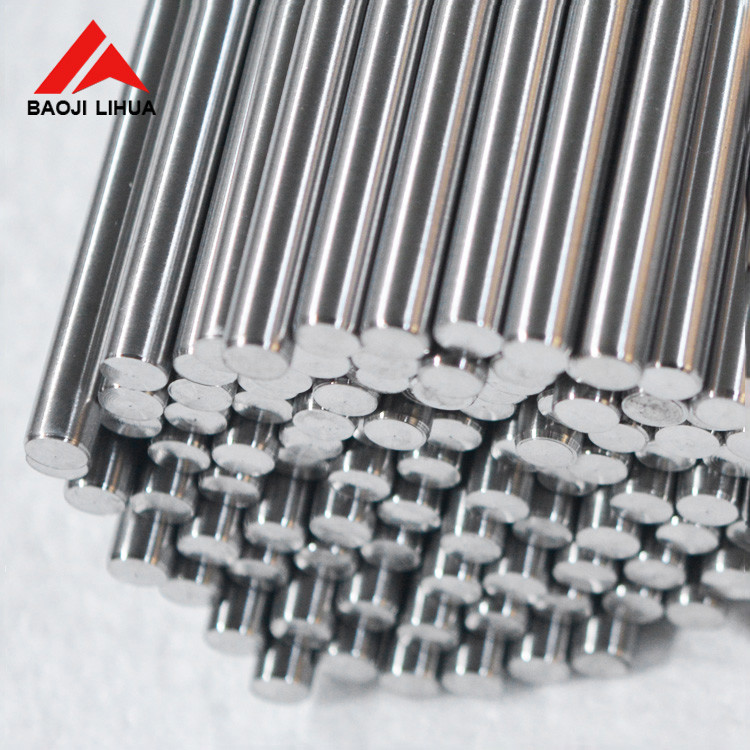

Cold Drawn 10mm Titanium Rod , Gr5 Gr9 Gr12 Titanium Hex Rod Length 3000mm 0

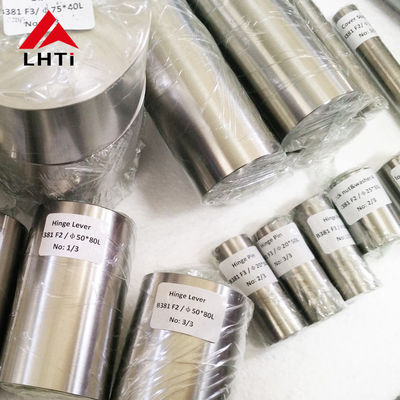

5. Detailed Images





Cold Drawn 10mm Titanium Rod , Gr5 Gr9 Gr12 Titanium Hex Rod Length 3000mm 1

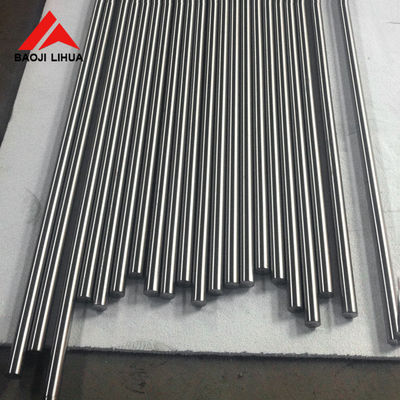

6. Related Product



Cold Drawn 10mm Titanium Rod , Gr5 Gr9 Gr12 Titanium Hex Rod Length 3000mm 2



7. Quality Assurance:



A. According to globally recognized standards, such as ASTM, AMS, ASME. Provide third-party inspection reports. ISO Quality Management System.



B. Visual inspection to check surface quality, ensuring without flaw, black dot and other defects.



C. Chemical Composition making sure all chemical components can satisfy customer’s demands.



D. Mechanical Property testing making sure all titanium products have satisfying mechanical features before delivery.









8. FAQ



FAQ
Q1.--How can you ensure the product quality?

--All products are manufactured according to ASTM standard (Bolts are according to ASME
standard and DIN standard),and we make 100% inspection before shipment,also we can provide the

MTC Material Test Certification.

Q2.--Can you print our LOGO on the products?
--Sure, and we welcome the customerized products.
Q3.--Can we get the free sample?
--Sure.
Q4.--What about the payment terms?
--T/T, L/C,Paypal,Western Union,Escrew and MoneyGram etc are all accepted.
Q5.--Do you have your website?
--Yes, Please click here. http://www.metalstitanium.com(Independent website)
Q6.--What is the necessary information for a inquiry?

--Product name, specification, material grade and quantity. If customized products, your drawing and

special requests also needed.
