Strong Titanium Straight Wire , Titanium Rod 1.0mm 2.4mm 3.2mm

Basic Information
Place of Origin: Baoji Shaanxi China
Brand Name: LHTI
Certification: ISO9001
Model Number: LH-14
Minimum Order Quantity: 1kg
Price: US dollar $26/kg--US dollar $56/kg
Packaging Details: coil and spool package in carton casse or plywood case,straight wire package in Plastic case,outside is standard export plywood case
Delivery Time: In stock--3 days.production--15 working days
Payment Terms: L/C, D/P, T/T, Western Union,paypal etc
Supply Ability: 50000 kgs per month
Detail Information
Material: Titanium Grade: Gr1 Gr2 Gr5 Gr7 Gr12
Shape: Straight Product Name: Titanium Wire
Surface: Pickling Surface/polish Surface Package: Standard Export Package
Hot Sale Diameter: 1.0mm 1.2mm 1.6mm 2mm 2.4mm 3.2mm Length: 914mm Or 1000mm Or As Your Requirment
MOQ: 10kg,accept Sample Order
High Light:

titanium alloy wire

,

pure titanium wire


Product Description

Strong Titanium Straight Wire , Titanium Rod 1.0mm 2.4mm 3.2mm



Titanium Straight Wire has low density, light weight, high strength, also has the good corrosion resistance, high temperature resistant, low temperature resistance, acid resistance, alkali resistance and so on.

Titanium wire can be applyed in different walks of life. Such as military industry, medical, sporting goods industry, glasses, earring, headwear, plating hangers, welding wire



Grade : TA1,TA2,TC4,Gr7,Gr12,Gr23 ,ErTi-1,ErTi-2,ErTi-5,ErTi-7 etc
Standard : ASTM B863 (for industrial) / AWS a5.16(for welding)
Diameter :hot sale diameter
1.0mm 1.2mm 1.6mm 2mm 2.4mm 3.2mm
Shape :Straight.
Surface : pickling surface / bright surface

Application : industrial,welding,macine parts,medical etc



Gr1/Gr2/ErTi-1/ErTi-2 dia=0.8mm/1.0mm/1.2mm/1.6mm/2.0mm/2.4mm/2.5mm/3.0mm/3.5mm in stock,ensure delivery 3-5 days

Gr5/ErTI-5/Gr7/ErTI-7 some size in stock,some size need production,lead time 10 working days.according your quantity

Gr12/ErTi-12 need production,lead time 10 working days



Titanium Wires
Finish Type Available Shapes Minimum Diameter Diameter Tolerance Price Leval
Acid Washed Coil or Straight 0.2mm Normal Lower
Polished Coil or Straight 0.2mm Normal Medium
Grinding Polished Only Straight 0.8mm Accurate and can be very small Higher



Grade Tensile Strength (min) Yield strength 0.2%Offset Elongation in 2in. or 50mm % (min)
Min
Ksi Mpa Ksi Mpa
Gr1 35 240 20 138 20
Gr2 50 345 40 275 18
Gr5 130 895 120 828 10
Gr7 50 345 40 275 18
Gr12 70 483 50 345 18


2.Titanium wire pictures

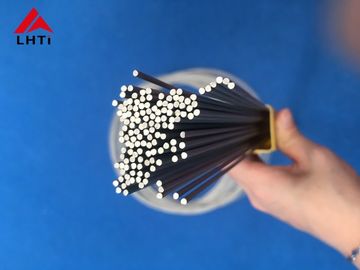

Titanium Wire in Straight

Strong Titanium Straight Wire , Titanium Rod 1.0mm 2.4mm 3.2mm 0
Titanium straight wire--dia=0.8mm/1.0mm/1.6mm/2.0mm/2.4mm/3.2mm,length=914mm to 1000mm
90% titanium straight wire used for welding(TIG filler rod)



3.Different Technical Compare--Hot Drawing & Cold Drawing



Cold Drawn : Pury titanium (Gr1 /Gr2/Gr4 ) and Gr7,using a fixed aperture of mould, drawing directly to eventually get the diameter of the titanium wire.

Hot Drawn : Alloy titanium wire except Gr7,when drawn need heating wire ,When the temperature reached 800 degrees Celsius, carries on the drawing

Strong Titanium Straight Wire , Titanium Rod 1.0mm 2.4mm 3.2mm 1

4.Proccess

Strong Titanium Straight Wire , Titanium Rod 1.0mm 2.4mm 3.2mm 2

5.Package & Delivery

Strong Titanium Straight Wire , Titanium Rod 1.0mm 2.4mm 3.2mm 3



---Coil and spool package in carton casse or plywood case

---Straight wire package in Plastic case,outside is standard export plywood case.

---accept customer requirment



Make sure that each package is tailor-made for you.ensure when you get the goods no damaged.



Delivery :According goods weight and shipment address,choose best shipment way for you.

               Shipment by express(DHL.Fedex,TNT,EMS,UPS),Shipment time will takes 4-7 days

               Shipment by sea or by Air

               Shipment to Your client in China



6.Application scenarios



Offshore oil
Petrochemical products
Gas treatment
Medicine
Power station
Pharmaceutical equipment
Chemical Equipment
Sea water equipment
Heat exchanger
Condenser



LHTi to provide partners in various fields with the most suitable and high-quality titanium wire to ensure that its production quality continues to improve, whether you use it for the petroleum, chemical, marine industry or high-end aviation parts and manufacturing business . No matter how special the material you need, we are always able to provide all the titanium wire products our customers need.let me know your need.



More information and any welding question,Please feel free to get in touch to get more.
