Pressure Vessel GR12 Titanium Hemispherical Dish End OD 300mm

Basic Information
Place of Origin: China
Brand Name: LHTi
Certification: ISO 9001:2015
Model Number: LH-Ti3
Minimum Order Quantity: 3Pcs
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Detail Information
Product Name: Titanium Dish Head For Pressure Vessel Equipment Material: Titanium GR1, GR2, GR7, GR12, Etc.
Standard: According To ASME VIII-I Standard Or DIN28013 Size: OD300-1250mm, Or Customized By Customers' Requests
Other Name: Titanium Elliptical Heads,Titanium Spherical Heads Color: Natural
Applications: Pressure Vessel Equipment And Boilers Third Party Testing: Available
High Light:

ASME Hemispherical Dish End

,

GR12 Hemispherical Dish End

,

OD 300mm Hemispherical Dish End


Product Description

China factory GR1, GR2, GR7, GR12 titanium dish head for Pressure Vessel Equipment









Product Name Titanium dish heads /Titanium Elliptical Heads,Titanium Spherical Heads
Standard According to ASME VIII-I Standard or DIN28013
Grade Titanium GR1, GR2, GR7, GR12, etc.
Size OD300-1250mm, Or customized by customers' requests
Thickness As customers' requets
Processing Cold forming and hot forming
Inspection

100% Ultrasonic Test and PT test after forming. (As per requirement.)

Surface Pickled,Sand-blasting
MOQ 3PCS





Titanium dish head applications:

Pressure vessels

Oil exploration

Gas exploration
Heat exchangers
Power generation

Chemical processing
Desalination
Water treatment





Production procedures:
1. Initial production of titanium plates or clad steel plates
Inspection
2. Cleaning and grinding plate surface
3. Coat protection & paint
4. Forming (Hot or cold forming)
5. Preparation for cutting & grinding
6. Pickling
7. UT & PT testing
8. Surface polishing as requested
9. Final inspection
10. Packing



Pressure Vessel GR12 Titanium Hemispherical Dish End OD 300mm 0



(Titanium dish head )DIN28013:

D (mm) s min/max (mm) Volumen (L) h1 (mm) kg pr mm s D (mm) s min/max (mm) Volumen (L) h1 (mm) kg pr mm s
300 4-10 3.5 78 1,0 1550 5-15 483 403 22.5
350 4-10 5.6 91 1.3 1600 5-15 532 416 23.9
400 4-10 8.3 104 1,7 1650 5-15 585 429 25,4
450 4-10 11.8 117 2,1 1700 5-15 640 442 27.0
500 4-10 16.1 130 2.6 1750 5-15 700 455 28.5
550 3-12 21,6 143 3,1 1800 5-15 760 468 30
600 3-12 28,0 156 3.6 1850 5-15 825 481 31.5
650 3-12 36.0 169 4,2 1900 5-15 890 494 33
700 3-12 44,5 182 4,8 1950 5-15 965 507 36
750 3-12 54.5 195 5,5 2000 6-15 1040 520 37
800 3-13 66.5 203 6.2 2050 6-15 1120 533 38.5
850 3-13 79,5 221 7,0 2100 6-15 1200 546 40.5
900 3-13 94 234 乙8 2150 6-15 1290 559 42,5
950 3-13 111 247 8.6 2200 6-15 1380 572 44.5
1000 4-16 130 260 9.5 2250 6-15 1480 685 46.5
1050 4-13 150 273 10,4 2300 6-15 1580 598 46 5
1100 4-13 173 286 11,1 2350 6-15 1690 611 51
1150 4-13 198 299 12.5 2400 6-15 1800 624 53
1200 4-13 225 312 13.6 2450 6-15 1910 637 55
1250 4-13 254 325 14,7 2500 6-15 2030 660 57



Detailed images:

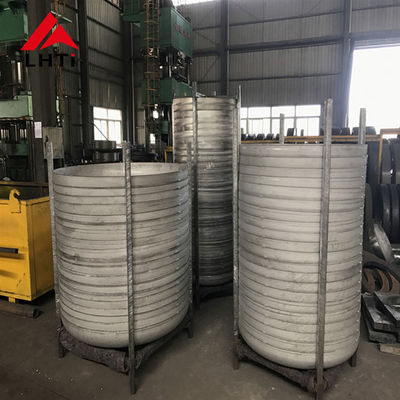

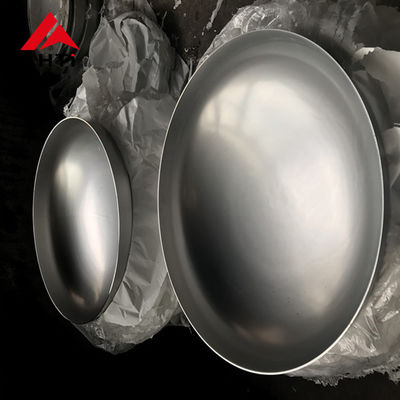

Pressure Vessel GR12 Titanium Hemispherical Dish End OD 300mm 1Pressure Vessel GR12 Titanium Hemispherical Dish End OD 300mm 2Pressure Vessel GR12 Titanium Hemispherical Dish End OD 300mm 3





Actual applications of titanium dish head:

Pressure Vessel GR12 Titanium Hemispherical Dish End OD 300mm 4Pressure Vessel GR12 Titanium Hemispherical Dish End OD 300mm 5





Know More About dish Head:
♦ Dish head (also called elliptical head or spherical head)

♦ The shape of this ellipsoidal head is more economical, because the height of the head is just a fraction of the diameter.

♦ The elliptical dish end radius varies between the major and minor axis usually with the ratio is 2:1.

♦ The elliptical tank head is the economical solution for medium pressure tanks due to the reduced metal thickness requirement.

♦ The ellipsoidal head has good mechanical properties better than the torispherical head.

♦ Due to the application of spinning manufacturing process in recent years, the fabrications of the larger diameter elliptical head is also can be realized.

♦ ASME elliptical dished heads are used in the construction of tanks for unfired pressure vessels, such as liquefied petroleum gas and air receivers.







Products moulds(different type):

Pressure Vessel GR12 Titanium Hemispherical Dish End OD 300mm 6





Our factory display:

Pressure Vessel GR12 Titanium Hemispherical Dish End OD 300mm 7

FAQ:

Q: What’s the information should I provide when inquiry?Elliptical Head
A: If you have drawings, we will be entirely in accordance with production drawings .

If you do not have the drawing, you can tell me the product data.

There are several important data, such as material, type of head( We have elliptical head, hemispherical head, dished head, flat head, etc. ),diameter, thickness, special tolerances or requirements.

We can do the drawings according to your requirements, and you confirm that the final product drawings.



Q: How do you ensure the quality of products?
A: Thanks for your question.Our production staff is trained through national quality department, and obtain the corresponding certificate, with years of production and design experience.

Weld must undergo X-ray inspection to ensure that no defects.



Q: Can you help us matching related products?
A: Our company also is surrounded by a lot of ancillary businesses, such as titanium flanges, titanium pipe fittings , and other equipment.

We can help you matching the highest quality products with the lowest prices.
