Grade 5 Titanium Wire Gr7 Gr12 , Titanium Welding Wire Temperature Resistance

Basic Information
Place of Origin: China
Brand Name: LHTI
Certification: ISO9001
Model Number: LH-14
Minimum Order Quantity: 1kg
Price: US dollar $26/kg--US dollar $56/kg
Packaging Details: coil and spool package in carton casse or plywood case,straight wire package in Plastic case,outside is standard export plywood case
Delivery Time: In stock--3 days.production--15 working days
Payment Terms: L/C, D/P, T/T, Western Union,paypal etc
Supply Ability: 50000 kgs per month
Detail Information
Material: Pure Titanium And Titanium Alloy Grade: Gr1 Gr2 Gr5 Gr7 Gr12
Shape: Coil,spool,straight Product Name: Titanium Wire
Surface: Pickling Surface/polish Surface Package: Standard Export Package
Hot Sale Diameter: 0.8mm-5mm Etc Length: 1000mm
MOQ: 10kg,accept Sample Order
High Light:

titanium alloy wire

,

thin titanium wire


Product Description

High quality Gr1 Gr2 Gr5 Gr7 Gr12 titanium wire titanium welding wire TIG wire for sale



High Qualiy Titanium Wire has low density, light weight, high strength, also has the good corrosion resistance, high temperature resistant, low temperature resistance, acid resistance, alkali resistance and so on.

Titanium wire can be applyed in different walks of life. Such as military industry, medical, sporting goods industry, glasses, earring, headwear, plating hangers, welding wire



Grade : TA1,TA2,TC4,Gr7,Gr12,Gr23 ,ErTi-1,ErTi-2,ErTi-5,ErTi-7 etc
Standard : ASTM B863 (for industrial) / AWS a5.16(for welding)
Diameter : 0.8-6.0mm
Shape : coil,spool,straight.
Surface : pickling surface/bright surface

Application : industrial,welding,macine parts,medical etc



Gr1/Gr2/ErTi-1/ErTi-2 dia=0.8mm/1.0mm/1.2mm/1.6mm/2.0mm/2.4mm/2.5mm/3.0mm/3.5mm in stock,ensure delivery 3-5 days

Gr5/ErTI-5/Gr7/ErTI-7 some size in stock,some size need production,lead time 10 working days.according your quantity

Gr12/ErTi-12 need production,lead time 10 working days



Titanium Wires
Finish Type Available Shapes Minimum Diameter Diameter Tolerance Price Leval
Acid Washed Coil or Straight 0.2mm Normal Lower
Polished Coil or Straight 0.2mm Normal Medium
Grinding Polished Only Straight 0.8mm Accurate and can be very small Higher



Grade Tensile Strength (min) Yield strength 0.2%Offset Elongation in 2in. or 50mm % (min)
Min
Ksi Mpa Ksi Mpa
Gr1 35 240 20 138 20
Gr2 50 345 40 275 18
Gr5 130 895 120 828 10
Gr7 50 345 40 275 18
Gr12 70 483 50 345 18


2.Titanium wire pictures



Three kinds of shape for your choose

Grade 5 Titanium Wire Gr7 Gr12 , Titanium Welding Wire Temperature Resistance 0

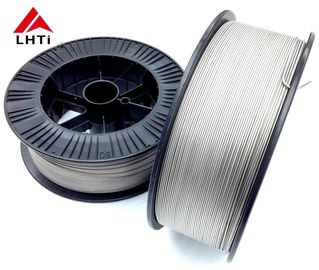

Titanium Spool wire--dia<6.0mm ,if you need we can make spool wire
                                     dia1.0-2.0mm,Precision winding,used for MIG
                                     dia0.2mm-3.0mm,thin wire,used for titanium mesh
Spool OD=270mm to 300mm,one spool wire weight is about 6-10kgs.or as per requirment

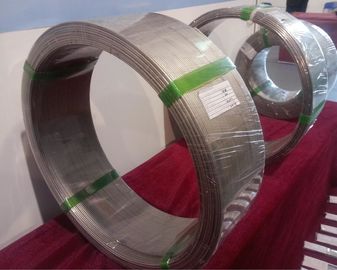

Titanium Coil wire--dia>2.0mm,we can make Coil wire
Coil OD = 450mm,one coil weight is about 10-15kg,or as per requirment

Titanium straight wire--dia=0.8mm/1.0mm/1.6mm/2.0mm/2.4mm/3.2mm,length=914mm to 1000mm
90% titanium straight wire used for welding(TIG filler rod)



3.Different Technical Compare--Hot Drawing & Cold Drawing





Cold Drawn : Pury titanium (Gr1 /Gr2/Gr4 ) and Gr7

Hot Drawn : Alloy titanium wire except Gr7,when drawn need heating wire ,When the temperature reached 800 degrees Celsius, carries on the drawing

Grade 5 Titanium Wire Gr7 Gr12 , Titanium Welding Wire Temperature Resistance 1

4.Proccess

Grade 5 Titanium Wire Gr7 Gr12 , Titanium Welding Wire Temperature Resistance 2



5.Welding wire---TIG & MIG

Grade 5 Titanium Wire Gr7 Gr12 , Titanium Welding Wire Temperature Resistance 3

TIG Welding titanium wire, also known as Gas Tungsten Arc Welding (GTAW), is a process that joins metals by heating them with an arc between a tungsten electrode (non-consumable) and the work piece. The process is used with a shielding gas and may also be used with the addition of filler metal.
The difference between the two is the way the arc is used. MIG (metal inert gas) welding uses a feed wire that constantly moves through the gun to create the spark, then melts to form the weld. TIG (tungsten inert gas) welding uses long rods to fuse two metals directly together



We have professional welding technology teams that can provide free welding consultation and other services to our customers.

If you are not sure what type of titanium wire you need for your project, we were glad to help you choose the right wire



6.Package & Delivery





Grade 5 Titanium Wire Gr7 Gr12 , Titanium Welding Wire Temperature Resistance 4



---Coil and spool package in carton casse or plywood case

---Straight wire package in Plastic case,outside is standard export plywood case.

---accept customer requirment



Make sure that each package is tailor-made for you.ensure when you get the goods no damaged.



Delivery :According goods weight and shipment address,choose best shipment way for you.

               Shipment by express(DHL.Fedex,TNT,EMS,UPS),Shipment time will takes 4-7 days

               Shipment by sea or by Air

               Shipment to Your client in China



7.Application scenarios



Offshore oil
Petrochemical products
Gas treatment
Medicine
Power station
Pharmaceutical equipment
Chemical Equipment
Sea water equipment
Heat exchanger
Condenser



LHTi to provide partners in various fields with the most suitable and high-quality titanium wire to ensure that its production quality continues to improve, whether you use it for the petroleum, chemical, marine industry or high-end aviation parts and manufacturing business . No matter how special the material you need, we are always able to provide all the titanium wire products our customers need.let me know your need.



More information and any welding question,Please feel free to get in touch to get more.

We still have more,If you need,Catalog will be send.
