Gr7 Gr9 Gr12 Titanium Disc Dia 200mm 350mm Astm B381 Forged Round Piece

Basic Information
Place of Origin: China
Brand Name: LHTi
Certification: ISO9001:2015; TUV; SGS;BV
Model Number: Titanium Disc
Minimum Order Quantity: 5 PCS
Price: USD13.00-38.00 per kg
Packaging Details: Plywood box with soft foam for additional protection
Delivery Time: 12-20 work days
Payment Terms: T/T, MoneyGram, L/C, Western Union, Paypal
Supply Ability: 500000 piece per month
Detail Information
Technique: CNC, Forged Thickness: 8mm-25mm
Shape: Round Shape Grade: Gr9 Gr1 Gr2 Gr5 Gr12
High Light:

titanium disk

,

titanium block


Product Description

Gr2 Gr7 Gr9 Gr12 Titanium Disc Dia 200mm 350mm Astm B381 Forged Round Piece



1. Product Information



Name titanium disc
Shape Square /round, according to your request
Available size

Round: dia 25~250mm

Rectangular: length up to 1500mm

Customization is available

Proportion(wt%) 5-80 ± 0.2Ti at your request.
Impurity content low
Certificates ISO9001:2015, the third test report(TUV,BV,SGS)
Technics Vacuum melting
Application

widely used in coating processing industries

a: architectural glass, car using glass, graphic display field.

b:electronic and semiconductor field.

c:decoration and mould field.

Advantage

High Hard texture

Low impurity content

Better heat dissipation

High Tensile strength



2. Physical Properties



Physical Properties
  Tensile Strength(min) Yield Strength(min) Elongation(%)
ksi MPa ksi MPa
Grade 1 35 240 20 138 24
Grade2 50 345 40 275 20
Grade 3 65 450 55 380 18
Grade 4 80 550 70 483 15
Grade 5 130 895 120 828 10
Grade 7 50 345 40 275 20
Grade 9 90 620 70 483 15
Grade 12 70 483 50 345 18
Grade 23 120 828 110 759 10



3. Chemical requirements



  N C H Fe O Al V Pd Mo Ni Ti
Gr1 0.03 0.08 0.015 0.20 0.18 / / / / / bal
Gr2 0.03 0.08 0.015 0.30 0.25 / / / / / bal
Gr5 0.05 0.08 0.015 0.40 0.20 5.5~6.75 3.5~4.5 / / / bal
Gr7 0.03 0.08 0.015 0.30 0.25 / / 0.12~0.25 / / bal
Gr9 0.03 0.08 0.015 0.25 0.15 2.5~3.5 2.0~3.0 / / / bal
Gr12 0.03 0.08 0.015 0.30 0.25 / / / 0.2~0.4 0.6~0.9 bal





Available Titanium forging products


Product Names
Dimensions


Grade


Standards
Outer Diameter
(mm)
Inner Diameter
(mm)
Height
(mm)


Disc
150~300
/
35~140





GR1/GR2/GR5/GR7/GR9/GR12





ASTM B381
300~500
/
35~150
500~600
/
40~110



Ring
200~400
100~300
20~150
400~700
150~500
30~250
700~900
300~700
35~300
900~1300
400~900
50~400









4. Detailed Images

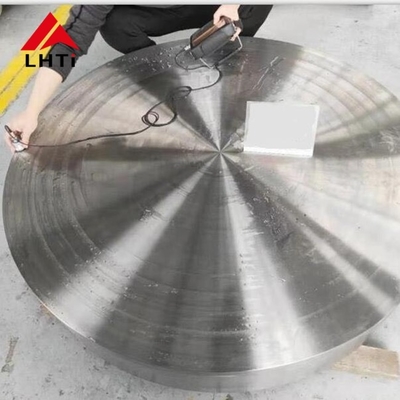

Gr7 Gr9 Gr12 Titanium Disc Dia 200mm 350mm Astm B381 Forged Round Piece 0

Gr7 Gr9 Gr12 Titanium Disc Dia 200mm 350mm Astm B381 Forged Round Piece 1







5.Releted Products



Gr7 Gr9 Gr12 Titanium Disc Dia 200mm 350mm Astm B381 Forged Round Piece 2







6. FAQ

FAQ
Q1.--How can you ensure the product quality?

--All products are manufactured according to ASTM standard (Bolts are according to ASME
standard and DIN standard),and we make 100% inspection before shipment,also we can provide the

MTC Material Test Certification.

Q2.--Can you print our LOGO on the products?
--Sure, and we welcome the customerized products.
Q3.--Can we get the free sample?
--Sure.
Q4.--What about the payment terms?
--T/T, L/C,Paypal,Western Union,Escrew and MoneyGram etc are all accepted.
Q5.--Do you have your website?
--Yes, Please click here. http://www.metalstitanium.com(Independent website)
Q6.--What is the necessary information for a inquiry?

--Product name, specification, material grade and quantity. If customized products, your drawing and

special requests also needed.



As a leading manufacturer of titanium products for over 15 years, we supply a series of high-performance products for titanium products, including titanium flange, titanium bar, and titanium wire, etc.



If you'd like to know more about our products, please feel free to contact me.
Your early reply will be highly appreciated.









7.Service



  • We have the stocks so we would provide our clients the short delivery time.
  • Strict control from raw materials till products finished, so the quality is guaranteed.
  • Customized sizes are offered as well as specified sizes and multiple sizes.
  • Strict quality test from raw material to product.
  • Original mill sheet test reports EN 10204.3.1 is available.
