Gr5 Heat Exchanger Titanium Equipment Forged Titanium Tube Sheet ASTM B265

Basic Information
Place of Origin: China
Brand Name: LHTi
Certification: ISO 9001:2015
Model Number: LH-Ti2
Minimum Order Quantity: 1 pieces
Packaging Details: Standard export packing,plywood case outside
Delivery Time: 15-30 Days
Payment Terms: L/C,D/P, T/T etc.
Supply Ability: 20000 pieces per month
Detail Information
Product Name: Titanium Forged Tube Sheet|bundle With Tube Sheet Clad On Both Sides In Heat Exchanger Material: Grade 1 Grade2 Grade5 Grade7 Grade12 Titanium
Standard: ASTM/ASME B265,ASTM/ASME B381 Tubesheet Diameter: MaxΦ8600mm
Hole Diameter Range: 1.5mm---238mm Hole Depth: Max1100mm
Quality Test: UT,PT Third-party Testing: Available
High Light:

Gr5 Heat Exchanger Titanium Equipment

,

Forged Titanium Tube Sheet

,

ASTM B265 Titanium Tube Sheet


Product Description

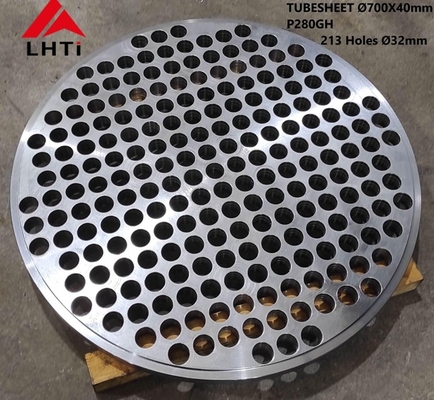

Titanium Forged Tube Sheet|bundle with Tube Sheet Clad on Both Sides in Heat Exchanger



The Titanium tube plate is drilling the pipes holes on the circular. Titanium steel Clad plate to be slightly larger than the outer diameter of the tube.



Item name : Titanium Tubesheet
Material: Gr1, Gr2, Gr5, Gr7,Gr12
Size &Standard: As per client drawing
Production Method: Forging,annealing and machining
Advantage: Excellent corrosion resistance ability
Packing: Plywood case
Application: Heat Exchanger, chemical equipment, Pressure Vessel, filter devices, etc.



Application

Boilers and pressure vessels;Petroleum;Chemical industry;Shipbuilding;Pharmaceutical;Metallurgy;Machinery;Food production ETC.





Product performance

● Low Density and High Strength
● Excellent Corrosion Resistance
● Good resistance to effect of heat
● Excellent Bearing to cryogenic property
● Nonmagnetic and Non-toxic
● Good thermal properties





Grade Fe max O max N max C max H max Pd Al V Mo Ni Elong'n

Σb

(Mpa)

σr0.2

(Mpa)

No wt% wt% wt% wt% wt% wt% wt% wt% wt% wt% % MPa MPa
Grade 1 0.2 0.18 0.03 0.1 0.015           24 240 140
Grade 2 0.3 0.25 0.03 0.1 0.015           20 400 275
Grade 5 0.4 0.2 0.05 0.1 0.015   5.5-6.7 3.5-4.5     10 895 828
Grade 7 0.3 0.25 0.03 0.1 0.015 0,12-0,25         20 400 275
Grade 12 0.3 0.25 0.03 0.1 0.015       0.3 0.8 18 460 300








Detailed images:

Gr5 Heat Exchanger Titanium Equipment Forged Titanium Tube Sheet ASTM B265 0 Gr5 Heat Exchanger Titanium Equipment Forged Titanium Tube Sheet ASTM B265 1

Gr5 Heat Exchanger Titanium Equipment Forged Titanium Tube Sheet ASTM B265 2Gr5 Heat Exchanger Titanium Equipment Forged Titanium Tube Sheet ASTM B265 3 Gr5 Heat Exchanger Titanium Equipment Forged Titanium Tube Sheet ASTM B265 4



Production Testing

●According to globally recognized standards, such as ASTM, AMS, ASMEand provide third-party inspection reports, DNV accredited ISO 9001: 2008 quality management system.
●100% titanium sponge to produce titanium ingot and 3 times melting to ensure the uniformity of chemical composition. For chemical composition inspection , not only inspect the titanium ingot, but also the semi finished products and finished products, just to ensure 100% qualified products before shipping.
●Mechanical property testing making sure all titanium products can satisfy mechanical features before delivery.
●Strict inspection when producing and finished products.Visual inspection to check surface quality, ensuring without flaw, black dot and any other defects.
●Ultrasonic Flaw Detection make sure thers are no defect inside.
●Chemical Composition detection make sure all chemical component can meet your demands.
●Yield strength,tensile strength ,elongation percentage reduction of area,Impact bending test,microstructure tests,
bending strength test etc.
● Hardness testing, Penetrant testing, Radiographic testing etc. as per your requirements.



Titanium tubesheet used in heat exchanger:

 Gr5 Heat Exchanger Titanium Equipment Forged Titanium Tube Sheet ASTM B265 5Gr5 Heat Exchanger Titanium Equipment Forged Titanium Tube Sheet ASTM B265 6



About our company:

Baoji Lihua Non-ferrous Metals Co., Ltd, founded in 2006, lies in Tai Cheng road, Baoji city---

It is famous for manufacturing Titanium, called “China Titanium Valley”.We are specialized in

manufacturing titanium products.With more than 14 years export Experience, our products was

sold to Asia, Europe, North America in large quantity.In addition to provide preferential price

for customers, we pay much attention to quality, and have a good after-sales service.

All products we produced are based on the standard: Amecian standard,German standard ,

Aerospace standard, European standard, etc. Including ASTM/ASME.JIS,DIN etc.Lihua is

certified by ISO9001:2008 . Our company's mantains long-term cooperations with SGS,BV,

LR'S ,TUV and other international inspection agency .Third party test is available.

Gr5 Heat Exchanger Titanium Equipment Forged Titanium Tube Sheet ASTM B265 7

nickel flange factory 2



Packing and shipping:

We suggest you pack them in plywood cases. Because we have to consider safety and freight.

In plywood cases, we usually put the product in a plastic bag, which is filled with protective pearl wool or foam film to prevent the product from being scratched.

The most important thing is that we have to make sure that the product is safe in transit and that you have to pay less for shipping.

Gr5 Heat Exchanger Titanium Equipment Forged Titanium Tube Sheet ASTM B265 9







our advantagementlihua titanium rod (1)
