Product Name: |

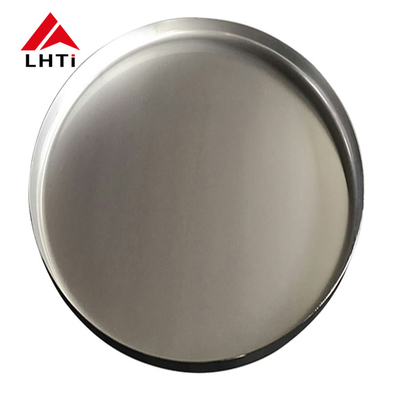

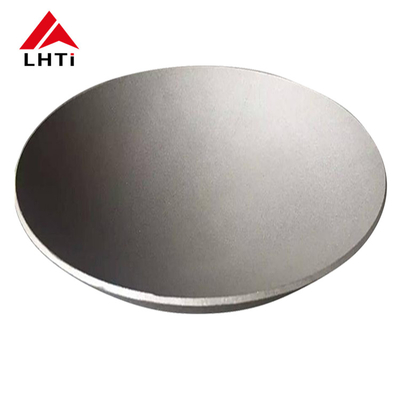

Grade 2 Titanium Elliptical Torispherical Hemisphere Spherical Conical Head For Tanks |
Material: |
Titanium GR1, GR2, GR7, GR12, Etc. |
Standard: |
According To ASME VIII-I Standard Or DIN28013 |
Size: |
OD300-1250mm, Or Customized By Customers' Requests |
Other Name: |
Titanium Dish Head,Titanium Elliptical Heads |
Color: |
Natural |
Applications: |
Pressure Vessel Equipment And Boilers |
Third Party Testing: |
Available |
Product Name: |
Grade 2 Titanium Elliptical Torispherical Hemisphere Spherical Conical Head For Tanks |
Material: |
Titanium GR1, GR2, GR7, GR12, Etc. |
Standard: |
According To ASME VIII-I Standard Or DIN28013 |
Size: |
OD300-1250mm, Or Customized By Customers' Requests |
Other Name: |
Titanium Dish Head,Titanium Elliptical Heads |
Color: |
Natural |
Applications: |
Pressure Vessel Equipment And Boilers |
Third Party Testing: |
Available |
Grade 2 titanium Elliptical Torispherical Hemisphere Spherical Conical Head for Tanks
| Product name | Grade 2 titanium Elliptical Torispherical Hemisphere Spherical Conical Head for Tanks |
| Grade | Grade 2 |
| Thickness | 2mm--300mm Standard: ANSI, ASME ,MSS, API, DIN, JIS, BS. AWWA |
| Technology | Hot pressing, cold pressing |
| Quality testings | UT, RT, MT, PT, ET |
| Application |
Mainly for pressure vesselsin diverse industry such as oil, chemical,winery, pharmaceutical, environmental and military |
The dish head refers to the element used to close the end of the container so that the internal and external
media are isolated, also known as hemispherical heads/dish end/ Elliptical Dish End. The head of a cylindrical
container is usually a revolving case. According to the shape of the head surface, it can be divided into convex
shape, conical shape, flat shape and combination shape. Convex heads refer to heads with convex outer surface
shape, such as hemispherical, oval, disc and unflanged spherical heads. Some gas cylinders use convex inward
combined bottom head, which can not only ensure strength, but also meet the needs of safe use.
A head is a part of a container that is welded to the cylinder According to different geometric shapes, it can be
divided into spherical, oval, disc, spherical crown, cone shell and cap, among which spherical, oval, disc and
spherical crown heads are collectively referred to as convex heads. In the welding is divided into butt welding
head, socket welding head. Used for all kinds of container equipment, such as storage tank, heat exchanger,
tower, reactor, boiler and separation equipment, etc.
(Titanium dish head )DIN28013:
|
D (mm) |
s min/max (mm) |
Volumen (L) |
h1 (mm) |
kg pr mm s |
D (mm) |
s min/max (mm) |
Volumen (L) |
h1 (mm) |
kg pr mm s |
|
300 |
4-10 |
3.5 |
78 |
1,0 |
1550 |
5-15 |
483 |
403 |
22.5 |
|
350 |
4-10 |
5.6 |
91 |
1.3 |
1600 |
5-15 |
532 |
416 |
23.9 |
|
400 |
4-10 |
8.3 |
104 |
1,7 |
1650 |
5-15 |
585 |
429 |
25,4 |
|
450 |
4-10 |
11.8 |
117 |
2,1 |
1700 |
5-15 |
640 |
442 |
27.0 |
|
500 |
4-10 |
16.1 |
130 |
2.6 |
1750 |
5-15 |
700 |
455 |
28.5 |
|
550 |
3-12 |
21,6 |
143 |
3,1 |
1800 |
5-15 |
760 |
468 |
30 |
|
600 |
3-12 |
28,0 |
156 |
3.6 |
1850 |
5-15 |
825 |
481 |
31.5 |
|
650 |
3-12 |
36.0 |
169 |
4,2 |
1900 |
5-15 |
890 |
494 |
33 |
|
700 |
3-12 |
44,5 |
182 |
4,8 |
1950 |
5-15 |
965 |
507 |
36 |
|
750 |
3-12 |
54.5 |
195 |
5,5 |
2000 |
6-15 |
1040 |
520 |
37 |
|
800 |
3-13 |
66.5 |
203 |
6.2 |
2050 |
6-15 |
1120 |
533 |
38.5 |
|
850 |
3-13 |
79,5 |
221 |
7,0 |
2100 |
6-15 |
1200 |
546 |
40.5 |
|
900 |
3-13 |
94 |
234 |
乙8 |
2150 |
6-15 |
1290 |
559 |
42,5 |
|
950 |
3-13 |
111 |
247 |
8.6 |
2200 |
6-15 |
1380 |
572 |
44.5 |
|
1000 |
4-16 |
130 |
260 |
9.5 |
2250 |
6-15 |
1480 |
685 |
46.5 |
|
1050 |
4-13 |
150 |
273 |
10,4 |
2300 |
6-15 |
1580 |
598 |
46 5 |
|
1100 |
4-13 |
173 |
286 |
11,1 |
2350 |
6-15 |
1690 |
611 |
51 |
|
1150 |
4-13 |
198 |
299 |
12.5 |
2400 |
6-15 |
1800 |
624 |
53 |
|
1200 |
4-13 |
225 |
312 |
13.6 |
2450 |
6-15 |
1910 |
637 |
55 |
|
1250 |
4-13 |
254 |
325 |
14,7 |
2500 |
6-15 |
2030 |
660 |
57 |
(Titanium dish head )DIN28013:
Detailed Images:
Applications of titanium Elliptical Heads:
The materials of Elliptical Heads: The dish head can be made of various materials according to the material of
the equipment body. For example, carbon steel (A3, 20#, Q235, Q345B, 16Mn, etc.), stainless steel (304, 321,
304L, 316, 316L, etc.), alloy steel (15Mo3 15CrMoV 35CrMoV 45CrMo), non-ferrous metals (aluminum, titanium,
copper, nickel and nickel alloy, etc.). The material must be the same as that of the device.We are specialized in
titanium hemispherical Heads.
Product processing:
Our factory display:
Exhibitions and customer visits:
Welcome to contact and visit us in any time!
