Floating Titanium Equipment Double Boiler Fixed Stationary Tubesheet

Basic Information
Place of Origin: China
Brand Name: LHTi
Certification: ISO9001:2015; TUV; SGS;BV
Model Number: Titanium equipment
Minimum Order Quantity: 2pcs
Packaging Details: Plywood box with soft foam for additional protection
Delivery Time: 12-25 work days
Detail Information
Materials: Nickel Based Alloy, Titanium, Zirconium, Composite Plate, Model Number: Tube Sheet,tubesheet
Standard: ANSI, ASME Product Name: Floating Large Diameter Forged Flange Double Boiler Fixed Stationary Tube Tubesheet Heat Exchanger Tube Sheet
Pressure: 150#-2500# Certificate: IS09001
Flexible Holes: Round,tapered, Elliptical, Lumbar, Square, Tooth, Diamond , Irreg Application Area: Machinery Repair Shops, Manufacturing Plant, Energy
Application: Refrigeration Parts, Heat Exchanger
High Light:

Floating Fixed Stationary Tubesheet

,

Double Boiler Fixed Stationary Tubesheet

,

Titanium Stationary Tubesheet


Product Description

Floating Large Diameter Forged Flange Double Boiler Fixed Stationary Tube To Condenser Heat Exchanger TitaniumTube Sheet



Our Company



As a leading manufacturer of titanium products for over 16 years, Baoji Lihua has exported titanium tube to many countries, including the US, India and Korea etc. The quality of our products is widely recognized. So you should have confidence in our company.



1. Product Feature

Titanium head, as the name implies, is made of titanium head, we know that there are many places to use the head, but there are some special places to use the special material, therefore, we should pay attention to the use of titanium head and other head is different, the other is how it is used.
The titanium head is a part of the container that is welded to the cylinder. According to the different geometric shape, it can be divided into spherical, oval, disc, spherical crown, cone shell and cap, among which spherical, oval, disc, spherical crown head is collectively referred to as convex head. In the welding is divided into butt welding head, socket welding head. Used for all kinds of container equipment, such as storage tank, heat exchanger, tower, reactor, boiler and separation equipment, etc.


Titanium head mainly adopts hot spinning forming process. Reliable quality, quality assured.
Titanium head is an indispensable part of pressure vessel equipment in petrochemical, atomic energy, food and pharmaceutical industries.


Titanium head is the end cover of pressure vessel, which is a main bearing part of pressure vessel. Its role is to seal. One is to make the upper and lower bottom of the can-shaped pressure vessel, and the other is that the pipe is at the end and is not ready to extend forward, so a head is used to seal the pipe in the form of welding. Similar products to the head are blind plates and tube caps, but those are removable. After the head is welded, it can not be disassembled. The supporting fittings are pressure vessel, pipe, flange, elbow, tee, tee and other products.


The quality of titanium head is directly related to the long-term safe and reliable operation of pressure vessel
The titanium head is a part of the container that is welded to the cylinder. According to the different geometric shape, it can be divided into spherical, oval, disc, spherical crown, cone shell and cap, among which spherical, oval, disc, spheri


2. Supply Ability
Supply Ability
20000 Ton/Tons per Year

3. Products Description

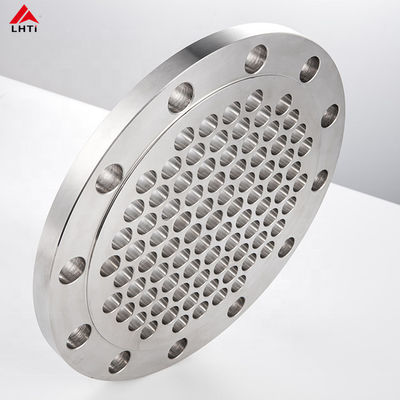

Floating Titanium Equipment Double Boiler Fixed Stationary Tubesheet 0

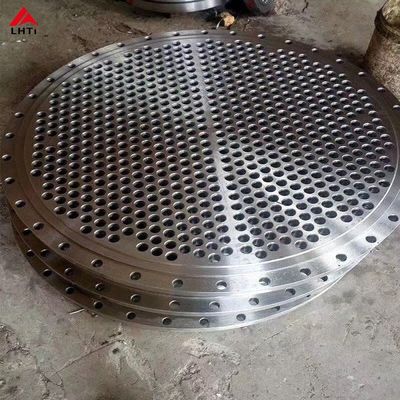

Floating Titanium Equipment Double Boiler Fixed Stationary Tubesheet 1
Floating Titanium Equipment Double Boiler Fixed Stationary Tubesheet 2
Floating Titanium Equipment Double Boiler Fixed Stationary Tubesheet 3
Product Name Floating Large Diameter Forged Flange Double Boiler Fixed Stationary Tube gr2 TitaniumTube sheet Heat Exchanger
Type Elbow, Tee, Reducer, Tube cap, Flange, etc.
Material Titanium, Nickel Alloy
Standard GB,AISI,ASTM,DIN,EN,JIS
Grade GR1/GR2/GR5/GR7/GR9/GR12
  Monel 400 / Monel K-500
  Inconel 600 / Inconel 601 / Inconel 625 / Inconel 617 / Inconel 690 / Inconel 718 / Inconel X-750
  Incoloy A-286 / Incoloy 800 / Incoloy 800H / Incoloy 800HT
  Incoloy 825 / Incoloy 901 / Incoloy 925 / Incoloy 926
  Nimonic 75 / Nimonic 80A / Nimonic 90 / Nimonic 105 / Nimonic C263 / L-605
  Hastelloy B / Hastelloy B-2 / Hastelloy B-3 / Hastelloy C / Hastelloy C-276 / Hastelloy C-22
  Hastelloy C-4 / Hastelloy C-2000 / Hastelloy G-35 / Hastelloy X / Hastelloy N
Specification Standard: OD: DN15~2000
THICHNESS: SCH10/10S SCH20 SCH30 SCHSTD SCH40/40S SCH60 SCH60 SCHXS .etc
Application Chemical, Pharmaceutical & Bio-Medical, Petrochemical & Refinery, Environmental, Food Processing, Aviation,
Sewage Disposal, Desalination, Waste Incineration etc. Chemical Fertilizer,
Inspection ISO,SGS,BV and so on
Delivery Time 7-40 days
Packaging Waterproof polybag, wooden box
Payment T/T, L/C,D/A,D/P, Western Union,MoneyGram,According to customer requirements payments for offline orders.



4.Equipment & technical
Floating Titanium Equipment Double Boiler Fixed Stationary Tubesheet 4
5. Line of production
Floating Titanium Equipment Double Boiler Fixed Stationary Tubesheet 5
6. quality inspection
Floating Titanium Equipment Double Boiler Fixed Stationary Tubesheet 6
7. Application
Floating Titanium Equipment Double Boiler Fixed Stationary Tubesheet 7
