Condenser ASME B338 Grade 2 Coil Titanium Tube Bending

Basic Information
Place of Origin: BaoJi Shaanxi China
Brand Name: LHTi
Certification: ISO9001
Model Number: LH-Ti12
Minimum Order Quantity: 100 kgs
Packaging Details: Standard exporting packaging, plywood case outside
Delivery Time: 7-25 working days
Payment Terms: T/T, Western Union, L/C, D/A, D/P
Supply Ability: 50tons per month
Detail Information
Material: Titanium Gr2 Standard: ASTM B338
Out Diameter: OD12.7mm-OD50mm Wall Thickness: 0.55-3.0mm
Length: Customized Surface: Bright,Polished
Technique: Seamless. Welded Shape: Superfine U Coils, Spiral Coil, Box Type Coil
Processing: Rolled,welding And Bending Application: Conden Condenser,heat Exchanger, Cooling Ect.
High Light:

Grade 2 Coil Titanium Tube

,

ASME B338 Coil Titanium Tube

,

Bending Coil Titanium Tube


Product Description



ASME B338 Grade 2 Titanium coil tube for heater for condenser



Titanium tube coil is widely used in Evaporator, Condenser, Refrigeration compressor, Heat exchanger tube,Heating tube.

titanium coil is also used to produce titanium white, glycine, nitrate amino phenol chemical industry, pesticide intermediates, pesticides, fuel, cyanuric acid, dichloro cyanuric acid, acetone cyanuric acid, etc.


Name:ASME B338 Grade 2 Titanium coil tube for heater for condenser

Material:Gr2 Titanium

Standard:ASME B338

OD:12.7mm-50mm

Wall thickness:0.55mm----3.0mm(normal use)

Length:0.55mm----3.0mm(normal use)

Applications:

Coiling pipe; petroleum pipeline,

Fluid Transportation Piping,

Water tank, boiler, heat exchanger unit,

Heat exchanger; Condenser,
Sea farming; electroplating equipment etc.



Quality control :

Seamless Tube: Ultrasonic or eddy current inspection.
Welding Pipe: 100% surface penetration inspection; 100% X-ray inspection.





Chemical composition (Wt%)

ASTM No. Fe max O max N max C max H max Pd Al Bal
Grade 2 0.3 0.25 0.03 0.1 0.015 - - Ti







Physical Properties (Min)

ASTM Grade Alloy Composition Tensile Strength Yield Strength Elongation min %
ksi Mpa ksi Mpa
Grade 2 Unalloyed Ti ("Pure") 50A -CP2 58 400 40 275 25





Detailed pictures:

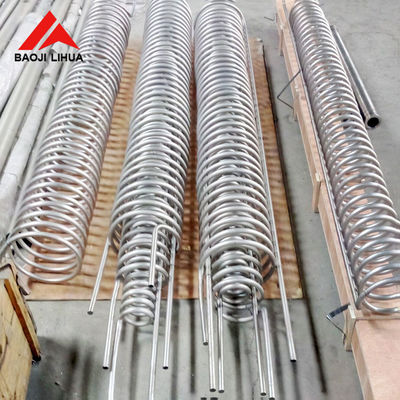

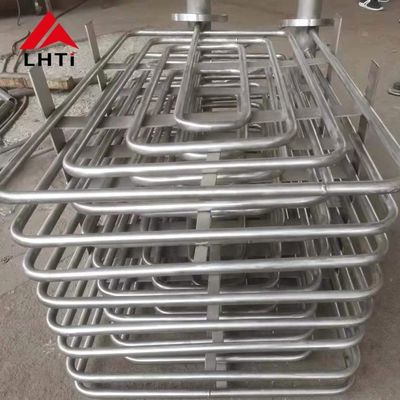

Titanium coil pipes



Purpose:
Titanium tube heat exchangers can be widely used in temperature control of marine heating and cooling systems for swimming pools, aquariums, aquariums, sea baths, electroplating tanks, chemical equipment. It can also be used in anti-corrosion fields, such as seawater utilization and surface treatment industries. In addition, titanium tube heat exchangers are also used in food, distilled water, purified water, brewing, beer, beverage, soilless cultivation, pharmaceutical, cosmetics and other industries. It can also be used in environmental protection fields, such as exhaust gas condensation recovery, pollutant (solvent) recovery, etc.

Equipment



About our company

Condenser ASME B338 Grade 2 Coil Titanium Tube Bending 2Condenser ASME B338 Grade 2 Coil Titanium Tube Bending 3



The third party testing report(some of pages):



Condenser ASME B338 Grade 2 Coil Titanium Tube Bending 4



Condenser ASME B338 Grade 2 Coil Titanium Tube Bending 5Condenser ASME B338 Grade 2 Coil Titanium Tube Bending 6
