ASTM B863 Titanium Wire , Industrial Grade 7 Titanium Alloy Wire Anti Rust

Basic Information
Place of Origin: Baoji Shaanxi China
Brand Name: LHTI
Certification: ISO9001
Model Number: LH-14
Minimum Order Quantity: 1kg
Price: US dollar $133/kg--US dollar $338/kg
Packaging Details: coil and spool package in carton casse or plywood case,straight wire package in Plastic case,outside is standard export plywood case
Delivery Time: 15-20 working days
Payment Terms: L/C, D/P, T/T, Western Union,paypal etc
Supply Ability: 20000 kgs per month
Detail Information
Material: Titanium Alloy Grade: GR7
Shape: Coil,spool,straight Product Name: Titanium Wire
Surface: Pickling Surface Package: Standard Export Package
Hot Sale Diameter: 0.8mm-4mm Etc MOQ: 6kg-10kg,accept Sample Order
Standard: ASTM B863 Applicate: Industrial,macine Parts,medical
High Light:

titanium alloy wire

,

pure titanium wire


Product Description

High quality ASTM B863 Grade7 Dia0.8mm-4mm titanium wire for industrial



Gr7 Titanium Wire has low density, light weight, high strength, also has the good corrosion resistance, high temperature resistant, low temperature resistance, acid resistance, alkali resistance and so on.

Titanium wire can be applyed in different walks of life. Such as military industry, medical, sporting goods industry, glasses, earring, headwear, plating hangers, welding wire



LHTi to provide partners in various fields with the most suitable and high-quality titanium wire to ensure that its production quality continues to improve, whether you use it for the petroleum, chemical, marine industry or high-end aviation parts and manufacturing business . No matter how special the material you need, we are always able to provide all the titanium wire products our customers need.let me know your need.



Grade : GR7/Ti0.2pd
Standard : ASTM B863 (for industrial)
Diameter : 0.8-4mm
Shape : coil,spool,straight.
Surface : pickling surface/bright surface

Application : industrial,macine parts,medical etc



Gr7/ErTI-7---some size in stock,some size need production,lead time 10-15 working days.according your quantity



Titanium Wires
Finish Type Available Shapes Minimum Diameter Diameter Tolerance Price Leval
Acid Washed Coil or Straight 0.2mm Normal Lower
Polished Coil or Straight 0.2mm Normal Medium
Grinding Polished Only Straight 0.8mm Accurate and can be very small Higher



Grade Tensile Strength (min) Yield strength 0.2%Offset Min Elongation in 2in. or 50mm % (min)

  Ksi Mpa Ksi Mpa
Gr7 50 345 40 275 18

ASTM B863 Titanium Wire , Industrial Grade 7 Titanium Alloy Wire Anti Rust 0

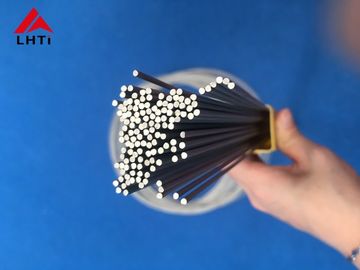

2.Gr7 Titanium wire--Three kinds of shape / Coil & Spool & Straight wire



Titanium Spool wire--dia<4.0mm ,if you need we can make spool wire
                                     dia1.0-2.0mm,Precision winding,used for MIG
                                     dia0.2mm-3.0mm,thin wire,used for titanium mesh
Spool OD=270mm to 300mm,one spool wire weight is about 6-10kgs.or as per requirment



Titanium Coil wire--dia>2.0mm,we can make Coil wire
Coil OD = 450mm,one coil weight is about 10-15kg,or as per requirment

Titanium straight wire--dia=0.8mm/1.0mm/1.6mm/2.0mm/2.4mm/3.2mm,length=914mm to 1000mm
90% titanium straight wire used for welding(TIG filler rod)



3.Pure titanium wire with Cold Drawing



Cold Drawing : Pury titanium Gr1 /Gr2 and Gr7 titanium wire used for cold drawing,with fixed aperture drawing mould directly, don't need to be heated.

ASTM B863 Titanium Wire , Industrial Grade 7 Titanium Alloy Wire Anti Rust 1

4.Titanium Wire Proccess

ASTM B863 Titanium Wire , Industrial Grade 7 Titanium Alloy Wire Anti Rust 2



5.Package & Delivery



ASTM B863 Titanium Wire , Industrial Grade 7 Titanium Alloy Wire Anti Rust 3



---Coil and spool package in carton casse or plywood case

---Straight wire package in Plastic case,outside is standard export plywood case.

---accept customer requirment

Make sure that each package is tailor-made for you.ensure when you get the goods no damaged.



Delivery :According goods weight and shipment address,choose best shipment way for you.

               Shipment by express(DHL.Fedex,TNT,EMS,UPS),Shipment time will takes 4-7 days

               Shipment by sea or by Air

               Shipment to Your forwarder in China



6.Application scenarios



Offshore oil
Petrochemical products
Gas treatment
Medicine
Power station
Pharmaceutical equipment
Chemical Equipment
Sea water equipment
Heat exchanger
Condenser



We still have more,If you need,Catalog will be send.
