ASTM B381 Gr2 Titanium Disc For Pressure Vessel Equipment

Basic Information
Place of Origin: China
Brand Name: LHTi
Certification: ISO 9001:2015
Model Number: LH-Ti2
Minimum Order Quantity: 1 pieces
Packaging Details: Standard export packing,plywood case outside
Delivery Time: 15-30 Days
Payment Terms: L/C,D/P, T/T etc.
Supply Ability: 20000 pieces per month
Detail Information
Product Name: ASTM B381 SB-265-2 Gr2 Titanium Disc Used For Pressure Vessel Equipment Material: Gr2 Titanium
Standard: ASTM/ASME B265,ASTM/ASME B381 Diameter: 50-2500mm
Thickness: Max 150mm Process: Forging
Quality Test: UT,PT Third-party Testing: Available
High Light:

Gr2 Titanium Disc

,

ASTM B381 Titanium Disc

,

Pressure Vessel Titanium Disc


Product Description

 ASTM B381 SB-265-2 Gr2 Titanium disc used for pressure vessel equipment

In the industrial world, forged Titanium is valued for having a very attractive combination of properties such as high strength, low density, resistance to elevated temperatures and a high corrosion resistance. It has become one of the most popular metals in the marine and aerospace industries due to its resistance to corrosion, particularly in seawater and chlorine environments.



Product name

Titanium Disks

Standard

ASTM / ASME B381 , AMS 4928

Material Grade

Gr2 Titanium

Technique

Forged, CNC machine

Process

Titanium ingot , forging, annealing, machining

Quality test

Appearance, Chemical composition, Physical properties, UT(Ultrasonic Testing), PT(Penetration test)

Application areas

Aviation, military industry, petrochemical, metallurgy, electroplating, vacuum coating, etc.



Available size:

Diameter:50-200mm*Height 2-140mm

Diameter:200-400mm*Height 25-150mm

Diameter:400-2500*Height 30-150mm

Baoji Lihua Group is equipped with state-of-the-art forging and heat treatment technologies, and expertise to manufacture Titanium forgings according to customers’ requirements and industry specifications. Our titanium forging services allow us to process Titanium alloys in a wide range of shapes including bars, contoured rings, plates and more. We also provide value-added processes such as special process heat treatments, machining and product testing.


Our company has strict production requirements and quality inspection requirements for the titanium disks, such as the chemical composition, physical properties, metallographic structure, tolerance, perpendicularity, and Ultrasonic Testing, which fully meets the standards of ASTM/ASME B265,ASTM/ASME B381.

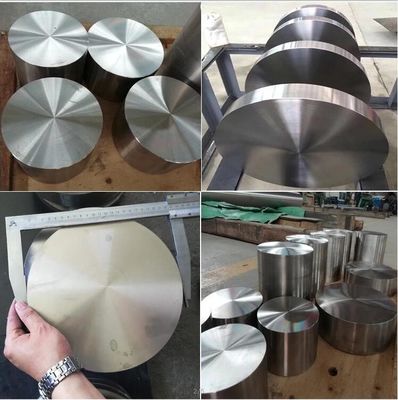

Detailed images:
ASTM B381 Gr2 Titanium Disc For Pressure Vessel Equipment 0ASTM B381 Gr2 Titanium Disc For Pressure Vessel Equipment 1 ASTM B381 Gr2 Titanium Disc For Pressure Vessel Equipment 2 ASTM B381 Gr2 Titanium Disc For Pressure Vessel Equipment 3ASTM B381 Gr2 Titanium Disc For Pressure Vessel Equipment 4

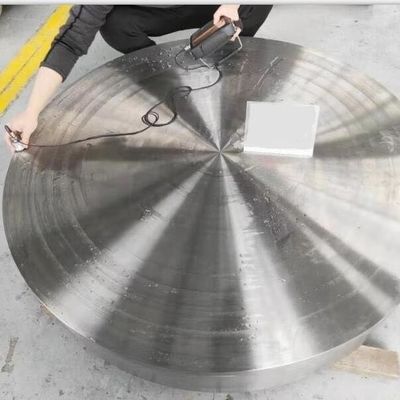

The workers in the factory are doing UT test:
ASTM B381 Gr2 Titanium Disc For Pressure Vessel Equipment 5





Packaging and Shipping:

In order to prevent mutual collision and friction, each titanium disc are separated with pearl cotton, the gap is filled with foam film. Outside are standard export free fumigation ply-wood cases, with strong steel straps if the goods are heavy. Ensure that the surface is perfect and goods without any damage.when the customer receives

titanium target cylindirc 6



Abbout our company:

Baoji Lihua Non-ferrous Metals Co,.Ltd, founded in 2006, lies in Tai Cheng road Baoji city---It is famous for manufacturing titanium, called “China Titanium Valley”.We are specialized in manufacturing, researching and marketing of titanium products.Titanium forging(Titanium forging disc/disck/ cake/ block, ring, flange) is one of our advantageous product.All our titanium forging discs are produced in strict accordance with international standards, such as ASTM/ASME 381.and their appearance, size, chemical composition and physical properties have all reached export standards. In addition to basic quality testing, we also do ultrasonic flaw detection and PMI testing on titanium discs to ensure product quality.

 ASTM B381 Gr2 Titanium Disc For Pressure Vessel Equipment 7



our advantagementlihua titanium rod (1)
