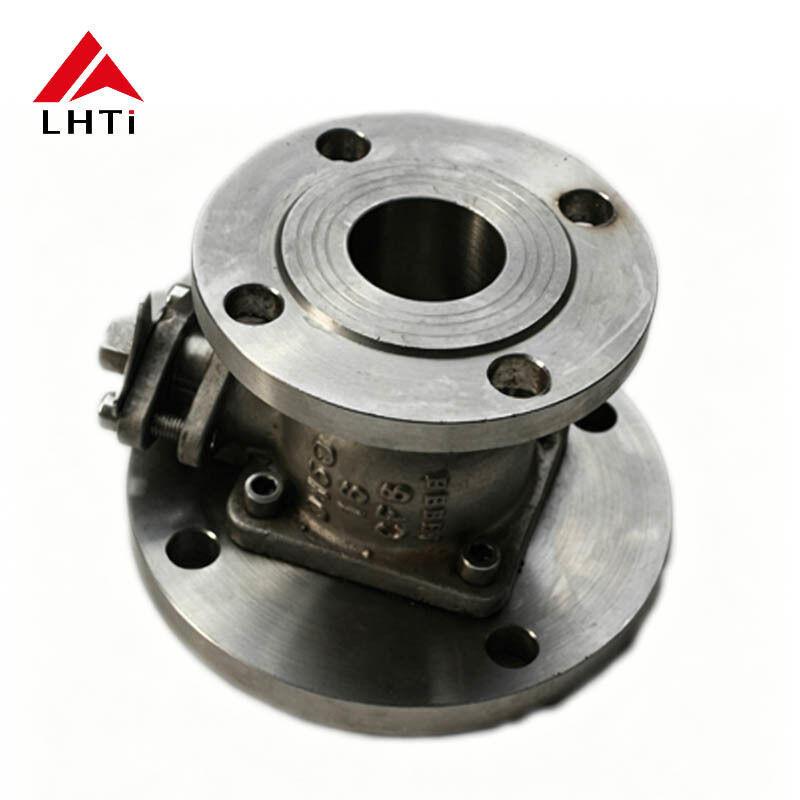

Titanium Lined Floating Ball Valve | Corrosion Resistant Discharge Valve

Name: Titanium Lined Floating Ball Valve | Corrosion Resistant Discharge Valve
Brand: Baoji Lihua Nonferrous Metals Co., Ltd.
SKU: Titanium Lined Floating Ball Valve
Price: 22,899.08 USD
Availability: InStock

Brand Name:	LHTi
Model Number:	Titanium Lined Floating Ball Valve
MOQ:	1 piece
Price:	negotiable
Payment Terms:	L/C,D/A,D/P,T/T,Western Union
Supply Ability:	5000 Pieces Per Month

Detail Information

Product Description

Detail Information

Place of Origin:

Baoji, China

Certification:

ISO9001

Packaging Details:

Plywood case or pallet, or as per your requirement

Supply Ability:

5000 Pieces Per Month

Product Description

Product Overview

Titanium alloy exhibits exceptional stability in neutral, oxidizing, and weakly reducing media, demonstrating excellent corrosion resistance to atmospheric environments, seawater, and chlorine-containing substances. However, in reducing media like hydrochloric acid, its corrosion resistance is relatively poor. To address this, titanium alloys can be enhanced through surface treatments such as ion nitriding and anodization. These processes significantly improve the corrosion resistance of titanium alloys in reducing media and increase their surface hardness to meet more demanding application requirements.

Specifications

Pressure Rating: PN1.0-4.0MPa, CLASS150-300Lb
Nominal Diameter: DN15-DN200 (1/2"-8")
Actuation: Manual, Electric, Pneumatic
Applicable Media: Oxidizing corrosive media

Design & Manufacturing Standards

Design: HGS-891, HG5-89-2, YTG45
Connection Flanges: HG, GB, JB, API, ANSI, ISO, BS, DIN, NF, JIS
Testing: JB/T9092, GB/T13927, AP1598

Main Materials

Body & Bonnet: TA1, TA2, TA10, Gr2, Gr3
Ball & Stem: TA1, TA2, TA10, Gr2, Gr3
