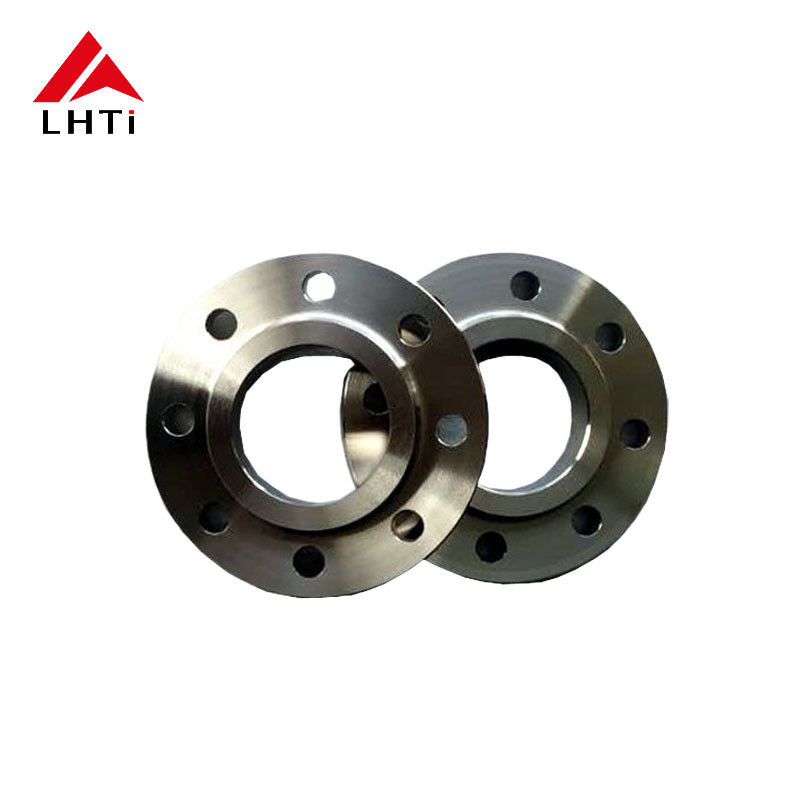

Grade 9 Titanium Flange Class 150 Long Weld Neck Flange

Name: Grade 9 Titanium Flange Class 150 Long Weld Neck Flange
Brand: Baoji Lihua Nonferrous Metals Co., Ltd.
SKU: Titanium Flange
Price: 1,503.00 USD
Availability: InStock

Brand Name:	LHTi
Model Number:	Titanium Flange
MOQ:	100 pieces
Price:	negotiable
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	200 Ton/Tons Per Month

Detail Information

Product Description

Detail Information

Place of Origin:

Baoji, China

Certification:

ISO9001,CE,etc

Certifications:

ASME B16.5, ASTM B381

Special Function:

Preservative

Dimensions:

DN15-DN1200

Standard:

ANSI 16.9

Product Standard:

ASME B16.5 Weld Neck Flange WNRF

Pressure Rate:

PN 10

Packaging Details:

Plywood case or pallet, or as per your requirement

Supply Ability:

200 Ton/Tons Per Month

Highlight:

Long Weld Neck Titanium Flanges

Class 150 Titanium Flanges

DIN Flange Titanium Flanges

Product Description

Grade 9 Titanium Flange Class 150 Long Weld Neck Flange

For industries requiring superior strength, corrosion resistance, and reliability, the Class 150 Grade 9 Titanium Flange with a DIN Long Weld Neck Flange and Raised Face design stands as an excellent choice. This flange is specially engineered for piping systems in industrial applications where high-performance and durability are paramount.

Manufactured to meet stringent DIN standards, the Grade 9 Titanium (Ti-3Al-2.5V) material provides exceptional resistance to corrosion and maintains high strength under extreme conditions. Known for its lightweight properties and outstanding fatigue resistance, it is the go-to choice for industries such as aerospace, marine, chemical processing, and petrochemical.

Key Features

Material Grade: Grade 9 Titanium alloy with 3% Aluminum and 2.5% Vanadium for enhanced strength and corrosion resistance
Flange Type: Long Weld Neck Flange design ensures smooth, stress-free transition for piping systems
Raised Face Design: Provides effective sealing area for tight, secure seals in high-pressure environments
Pressure Rating: Class 150 rating withstands up to 150 psi for moderate-pressure piping systems

Key Benefits

Superior Corrosion Resistance
Exceptional protection against chemicals, acids, seawater, and high temperatures

High Strength-to-Weight Ratio
Lightweight with high tensile strength for structural and high-pressure applications

Leak-Proof Sealing
Raised face design provides large sealing area for secure, leak-proof connections

Enhanced Durability
Resistant to fatigue and oxidation for long service life in harsh environments

Versatility
Ideal for aerospace, marine, chemical, and petrochemical industries

Material Specifications

Grade	Titanium Composition	Applications
Grade 9	3% Aluminum, 2.5% Vanadium, balance Titanium	Aerospace, Marine, Chemical Processing, Petrochemical, High-Performance Engineering

Application Areas

Marine Industry: Pipelines exposed to harsh seawater environments where corrosion resistance is critical
Aerospace: Piping systems in aircraft and space vehicles due to strength, low weight, and corrosion resistance
Chemical Processing: Systems transporting aggressive chemicals and fluids in chemical plants
Petrochemical: Refinery and pipeline systems dealing with high-temperature and high-pressure conditions

Manufacturing Process

Material Selection: High-quality titanium billets (Grade 9) selected to meet mechanical property requirements
Forging and Shaping: Titanium heated, forged, and precision-machined into Long Weld Neck Flange design
Surface Treatment: Raised face design created with precise machining for enhanced sealing surface
Quality Control: Thorough inspection including pressure testing and non-destructive testing (NDT)

Technical Specifications

Specification	Details
Flange Type	Long Weld Neck Flange
Pressure Rating	Class 150
Material Grade	Titanium Grade 9 (Ti-3Al-2.5V)
Design Standard	DIN
Sealing Surface	Raised Face
Temperature Resistance	Up to 400°C (750°F)
Corrosion Resistance	Excellent resistance to acids, seawater, and high temperatures

Why Choose This Flange

The Class 150 Grade 9 Titanium Flange offers unmatched performance with high strength, lightweight construction, and superior corrosion resistance. Available in customizable sizes for various piping systems, it reduces maintenance needs through exceptional durability and reliability in extreme industrial conditions.

Perfect for demanding applications in aerospace, marine, chemical processing, and petrochemical industries, these flanges deliver reliable, leak-proof connections that ensure piping systems run smoothly and efficiently for years to come.
