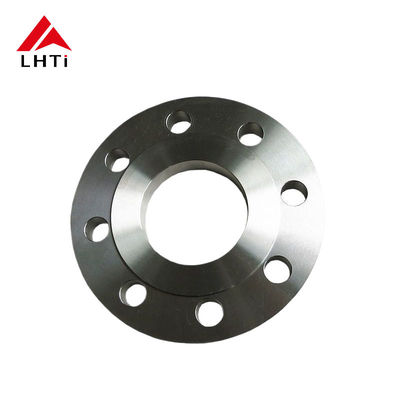

EN1092-01 Titanium Plate Flange Gr1 Gr2 Gr5 PN 10

Name: EN1092-01 Titanium Plate Flange Gr1 Gr2 Gr5 PN 10
Brand: Baoji Lihua Nonferrous Metals Co., Ltd.
SKU: Titanium Flange
Price: 1,503.00 USD
Availability: InStock

Brand Name:	LHTi
Model Number:	Titanium Flange
MOQ:	100 pieces
Price:	negotiable
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	200 Ton/Tons Per Month

Detail Information

Product Description

Detail Information

Place of Origin:

Baoji, China

Certification:

ISO9001,CE,etc

Pakage:

Wooden Cases

Size:

1/2

Application:

Chemical, Petrochemical, Oil And Gas, Power Generation, Etc.

Package:

Wooden Case, Pallet, Etc.

Payment:

TT And Paypal

Inspection:

UT%

Pressure:

150#-2500#

Testing:

UT% PT%

Packaging Details:

Plywood case or pallet, or as per your requirement

Supply Ability:

200 Ton/Tons Per Month

Highlight:

EN1092-01 Titanium Plate Flange

Gr5 Titanium Plate Flange

Industrial Piping Titanium Plate Flange

Product Description

EN1092-01 Titanium Plate Flange for Industrial Piping

The EN1092-01 Titanium Plate Flange (Gr1, Gr2, Gr5) is engineered specifically for industrial piping systems operating in corrosive environments. Manufactured to EN1092-1 standards, this flat flange delivers reliable, durable connections for pipeline applications across chemical, marine, aerospace, and petrochemical industries where superior corrosion resistance and pressure handling are essential.

Key Features

Material Grades: Available in Titanium Gr1, Gr2, and Gr5:
- Gr1: Commercially pure titanium with excellent corrosion resistance and light weight
- Gr2: Pure titanium offering balanced strength and corrosion resistance for general industrial applications
- Gr5: Titanium alloy (Ti-6Al-4V) with enhanced strength for high-performance critical applications
Flange Type: Flat Flange per EN1092-1 standard with smooth surface for easy installation
Pressure Rating: PN 10, handling pressures up to 10 bar
Corrosion Resistance: Exceptional resistance to oxidation, pitting, and crevice corrosion in harsh environments

Performance Advantages

Advantage	Details
Corrosion Resistance	Superior resistance to aggressive chemicals, seawater, and high-pressure environments
High Strength-to-Weight Ratio	Lightweight yet incredibly strong, especially Gr5 grade
Leak-Proof Sealing	Flat design ensures tight, reliable seals preventing leakage
Durability	Inherent strength and fatigue resistance extend service life
Temperature Resistance	Withstands high temperatures up to 400°C/750°F

Material Grade Specifications

Material Grade	Composition	Advantages
Gr1	Pure Titanium (99.5% Ti)	Excellent corrosion resistance, low strength, suitable for non-critical applications
Gr2	Pure Titanium (99.2% Ti)	Good combination of strength, formability, and corrosion resistance for general industrial use
Gr5	Ti-6Al-4V (6% Aluminum, 4% Vanadium)	High strength and lightweight, perfect for high-performance critical industries

Manufacturing Process

Material Selection: High-quality titanium billets selected based on project requirements
Forging and Machining: Titanium heated, forged, and precisely machined to required dimensions
Heat Treatment: Enhanced mechanical properties for high pressure and temperature performance
Surface Finishing: Meticulous finishing for smooth, even sealing surfaces
Inspection & Testing: Rigorous inspection and NDT to verify EN1092-1 and quality standards

Industrial Applications

The EN1092-01 Titanium Flat Flange PN 10 is ideal for industrial piping applications requiring corrosion resistance, strength, and durability:

Chemical Processing: Handling aggressive chemicals and solvents in industrial plants
Marine Industry: Protection against seawater corrosion in saltwater environments
Aerospace: High strength-to-weight ratio for extreme condition piping systems
Petrochemical: Transportation and processing of petroleum-based products under high pressures
Power Generation: Cooling systems and high-pressure applications in power plants

Technical Specifications

Specification	Details
Standard	EN1092-1
Pressure Rating	PN 10
Flange Type	Flat Flange
Material Grades	Titanium Gr1, Gr2, Gr5
Temperature Resistance	Up to 400°C/750°F
Corrosion Resistance	Excellent (resistant to acids, saltwater, and alkalis)
Manufacturing Process	Forging, Machining, Heat Treatment

The EN1092-01 Titanium Flat Flange PN 10 offers a premium solution for industrial piping systems in corrosive environments. Combining superior corrosion resistance, strength, and lightweight properties, these flanges ensure long-lasting, efficient connections in high-demand applications across chemical processing, marine, aerospace, and petrochemical industries.
