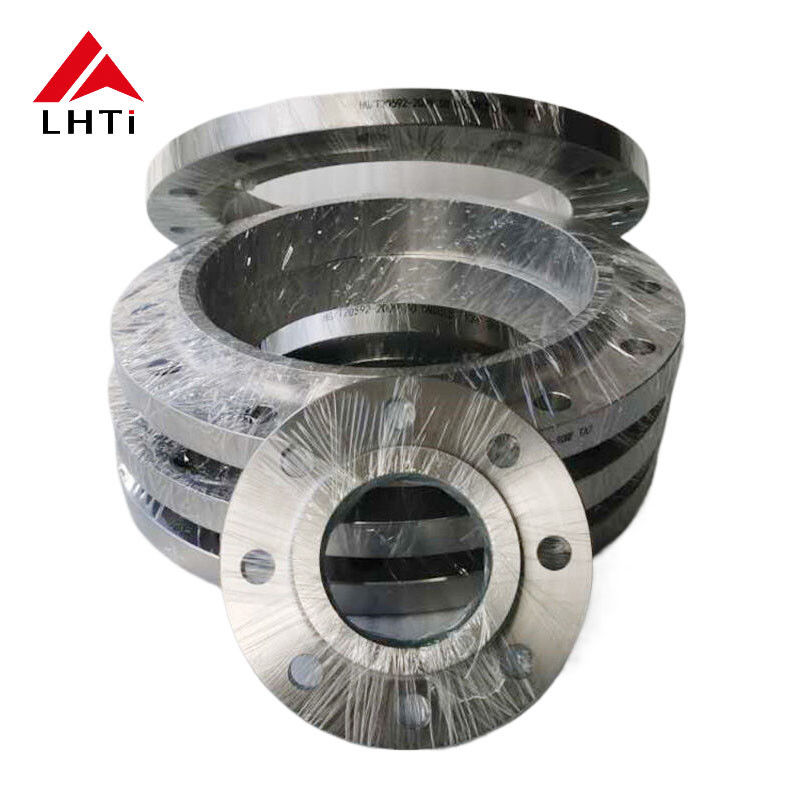

ASME B16.5 Titanium Gr1 Gr2 Plate Flange for Chemical Applications

Name: ASME B16.5 Titanium Gr1 Gr2 Plate Flange for Chemical Applications
Brand: Baoji Lihua Nonferrous Metals Co., Ltd.
SKU: Titanium Flange
Price: 1,503.00 USD
Availability: InStock

Brand Name:	LHTi
Model Number:	Titanium Flange
MOQ:	100 pieces
Price:	negotiable
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	200 Ton/Tons Per Month

Detail Information

Product Description

Detail Information

Place of Origin:

Baoji, China

Certification:

ISO9001,CE,etc

Flange Facing:

RF, FF, RTJ

Keyword:

WN Titanium Flange

End Type:

Raised Face

Payment Term:

T/T, L/C, Etc.

Bolt Circle Diameter:

3.88 Inches

Working Temperature:

-60°C~250°C

Technique:

Forged,rolling

Din:

PN6,PN10,PN16,PN25 Though PN250

Packaging Details:

Plywood case or pallet, or as per your requirement

Supply Ability:

200 Ton/Tons Per Month

Highlight:

ASME B16.5 Titanium Flanges

Chemical Applications Titanium Flanges

Gr1 Gr2 Titanium Flanges

Product Description

Ti Class 150 ASME B16.5 Titanium Gr1 Gr2 Raised Face Plate Flanges for Chemical Applications

The ASME B16.5 Ti Class 150 Titanium Gr1 Gr2 Raised Face BL Flanges are engineered for chemical processing industries where corrosion resistance, high strength, and superior performance under extreme conditions are essential. These flanges comply with ASME B16.5 standards and are rated for ANSI Class 150, making them suitable for medium to high-pressure systems.

Manufactured from Titanium Grades 1 and 2 (Gr1 and Gr2), these flanges deliver exceptional resistance to aggressive chemicals including acids, alkalis, and saltwater. This makes them ideal for chemical plants, refineries, and industrial settings handling corrosive substances.

Titanium Gr1 and Gr2 alloys provide distinct advantages in harsh chemical environments:

Grade 1 offers superior ductility and excellent corrosion resistance
Grade 2 provides higher strength combined with outstanding resistance to most chemical environments

These Raised Face BL (Blind) Flanges are designed for bolting onto pipes and other flanged components, ensuring secure and leak-tight connections in chemical pipelines. The raised face configuration provides a secure, tight seal that minimizes leakage risk under high-pressure and high-temperature conditions.

Key Features

Material: Titanium Gr1 and Gr2 alloys provide superior corrosion resistance and high strength
Corrosion Resistance: Ideal for aggressive chemical environments, including acids, alkalis, and saltwater
Pressure Rating: ANSI Class 150, designed for medium to high-pressure systems
Flange Type: Raised Face BL (Blind) Flanges are perfect for sealing and pressure containment
Long Service Life: Reduced maintenance and frequent replacement due to the durability of titanium alloys

Applications

Chemical processing plants
Refineries and petrochemical industries
High-pressure pipeline systems
Corrosive chemical transportation

Technical Specifications

Specification	Details
Standard	ASME B16.5
Pressure Rating	ANSI Class 150
Material	Titanium (Gr1, Gr2)
Flange Type	Raised Face BL (Blind) Flange
Corrosion Resistance	Excellent (resistant to acids, alkalis, saltwater)
Temperature Resistance	Suitable for high-temperature environments
Density	Low Density

Benefits

Benefit	Details
Corrosion Resistance	Excellent protection against corrosive chemicals, reducing system failure risk
High Strength	Titanium Gr2 offers high tensile strength for demanding environments
Safety	Raised face ensures tight, secure seals for leak-free operation
Long-Term Durability	Titanium alloys ensure long service life, lowering maintenance and replacement costs
Performance	Reliable under high-pressure and high-temperature conditions

The ASME B16.5 Ti Class 150 Titanium Gr1 Gr2 Raised Face BL Flanges provide the ideal solution for chemical applications, offering the perfect balance of strength, corrosion resistance, and reliability in demanding environments. Their superior performance ensures long-lasting, safe, and efficient pipeline systems for the chemical industry.
