Titanium Flange
Created with Pixso.

High Durability Titanium Flange Plate Gr2 Gr7 PN10 – Suitable For Pipeline System Pressure

High Durability Titanium Flange Plate Gr2 Gr7 PN10 – Suitable For Pipeline System Pressure

Brand Name: LHTi
MOQ: 100 pieces
Price: negotiable
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 200 Ton/Tons Per Month
Detail Information
Place of Origin:
Baoji, China
Certification:
ISO9001,CE,etc
Material Grade:
Gr2 Gr5 Gr7
Porduct Name:
Titanium Blind Flange
Connection Type:
Weld
Standards:
ASME B16.5
Bolt Circle Diameter:
3.5 Inches
Processing Service:
Welding
Processing Method:
Forged, CNC Machine
Sealing Type:
RF
Packaging Details:
Plywood case or pallet, or as per your requirement
Supply Ability:
200 Ton/Tons Per Month
Highlight:

Pipeline System Pressure Titanium Flange

,

Gr7 Titanium Flange Plate

,

PN10 Titanium Flange Plate

Product Description

High Durability Titanium Alloy Flange Plate Gr2 Gr7 PN10 – Suitable for Pipeline System Pressure Testing

Product Overview

The High Durability Titanium Alloy Flange Plate Gr2 Gr7 PN10 is a high-performance solution for pipeline system pressure testing. It is made from high-quality Gr2 and Gr7 titanium alloys, offering exceptional strength, outstanding corrosion resistance, and stability under high-pressure conditions. This titanium alloy flange plate is ideal for applications in industries such as chemical engineering, marine engineering, and other sectors that require high durability and leak-free testing.

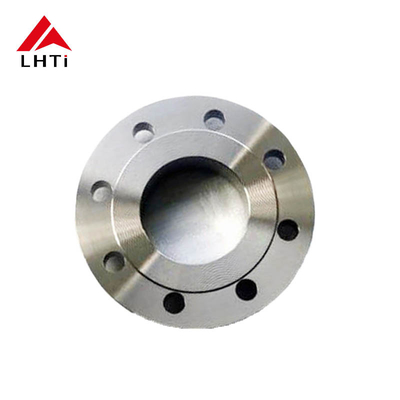

High Durability Titanium Flange Plate Gr2 Gr7 PN10 – Suitable For Pipeline System Pressure 0

Key Features:

Feature Description
Material Made from Gr2 and Gr7 titanium alloys, with Gr2 titanium offering excellent corrosion resistance and Gr7 providing enhanced resistance to chemical corrosion.
Pressure Rating PN10, supporting a maximum working pressure of 10 bar (approximately 145 psi). Suitable for medium-pressure systems.
Corrosion Resistance Titanium alloys naturally resist corrosion in harsh media like chlorides, ensuring long-term stability. Gr7 titanium alloy provides additional protection against pitting and crevice corrosion.
High Durability Performs excellently under high pressure and corrosive environments, ensuring reliable sealing and reducing leakage risks, thereby enhancing system stability.
Lightweight and Easy to Handle The high strength and low density of titanium alloys make the flange plate easier to handle and install compared to traditional materials like steel, while maintaining high durability.

Technical Specifications

Parameter Value
Material Gr2 Titanium Alloy, Gr7 Titanium Alloy
Size Customizable to client needs, common sizes: DN50-DN200
Pressure Rating PN10, supports maximum working pressure of 10 bar (145 psi)
Temperature Range -50°C to 300°C
Surface Treatment Natural surface of titanium alloy, offering additional corrosion protection
Applicable Standards Suitable for ANSI B16.5 and DIN 2633 standards

Product Advantages

Advantage Description
Reliable Pressure Testing Ensures structural integrity during pipeline system testing, reducing leaks and enhancing safety.
Long-lasting Durability Titanium alloys have a long service life, reducing frequency of replacements and maintenance.
Outstanding Corrosion Resistance Especially suitable for chemical, marine, and water treatment environments, ensuring long-term stable operation.
Cost-effective Although the initial investment in titanium alloys is higher, their durability and stability reduce long-term maintenance and replacement costs.

Application Fields

Application Field Description
Pipeline System Pressure Testing Primarily used for testing pipeline system integrity, ensuring leak-free and safe performance.
Water Treatment Industry Suitable for water treatment plants and seawater desalination plants, ensuring corrosion resistance and high pressure performance.
Marine and Offshore Applications Performs excellently in marine environments, resistant to saltwater corrosion and able to withstand high pressures.
Chemical Industry Suitable for chemical plants and other industries with high corrosion and pressure requirements.
Cryogenic Systems Titanium alloys maintain strength and structural integrity in low-temperature applications, making them ideal for cryogenic systems.

Usage and Maintenance

  • Installation Advice: Suitable for standard flange connections. Ensure that the flange surfaces are clean and flat before installation to prevent leaks.
  • Maintenance: Titanium alloy flange plates are highly corrosion-resistant and do not require frequent maintenance. However, in highly corrosive environments, it is recommended to check the flange contact surfaces periodically.
  • Applicable Environments: Widely applicable in marine engineering, chemical production lines, water treatment, oil and gas, and many other industries, particularly in high-corrosion environments.

Conclusion

The High Durability Titanium Alloy Flange Plate Gr2 Gr7 PN10 is a high-performance solution designed for pipeline system pressure testing. With exceptional strength, corrosion resistance, and stability, it ensures reliable performance in various harsh environments. Whether used in water treatment, marine engineering, or chemical industries, this titanium alloy flange plate provides long-term efficient performance and is the ideal choice for ensuring the safe operation of pipeline systems.
