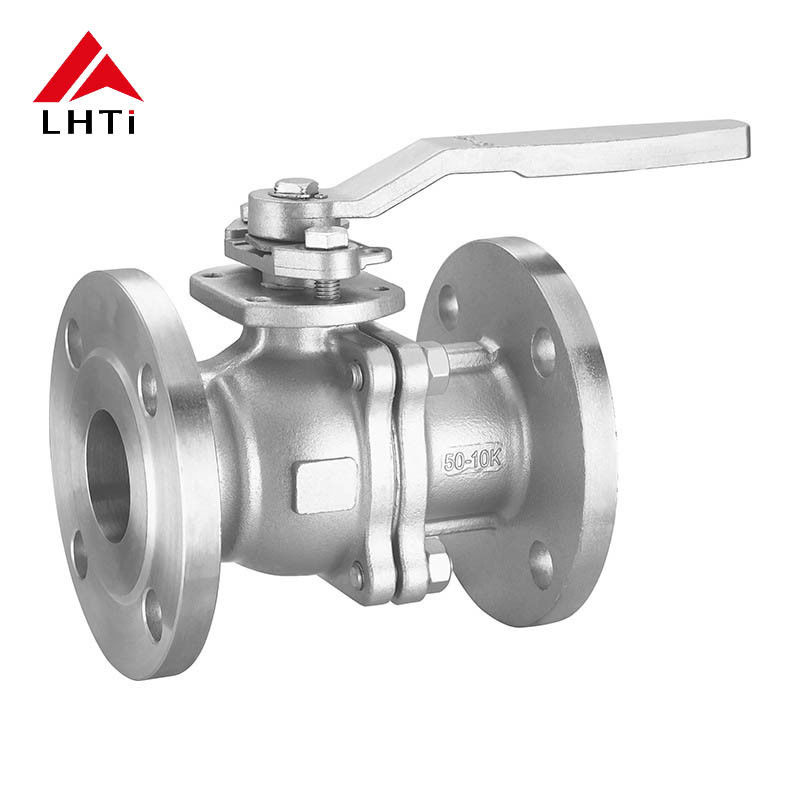

6 Inch Two Way Ball Valve with Gr2 and Gr5 Titanium

Name: 6 Inch Two Way Ball Valve with Gr2 and Gr5 Titanium
Brand: Baoji Lihua Nonferrous Metals Co., Ltd.
SKU: TItanium Ball Valve
Price: 22,899.08 USD
Availability: InStock

Brand Name:	LHTi
Model Number:	TItanium Ball Valve
MOQ:	100 pieces
Price:	negotiable
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	200 Ton/Tons Per Month

Detail Information

Product Description

Detail Information

Place of Origin:

Baoji, China

Certification:

ISO9001,CE,etc

Features:

Biological Compatibility,Non-Magnetic

Ball Material:

Titanium, Stainless Steel

Low Emission Design:

API 624

Working Temp:

150°-425°

Blowout Proof Stem:

Yes

Application:

Oil And Gas, Chemical, Power, Water Treatment

Cavity Pressure Relief:

Yes

Design Standard:

API 6D, ASME B16.34

Flow Pattern:

Bi-directional

Port Type:

Full Port, Reduced Port

Packaging Details:

Plywood case or pallet, or as per your requirement

Supply Ability:

200 Ton/Tons Per Month

Highlight:

Two Way Titanium Ball Valve

6 Inch Titanium Ball Valve

Industrial Titanium Ball Valve

Product Description

6 Inch Two Way Ball Valve with Gr2 and Gr5 Titanium

The 6-Inch Two-Way Ball Valve crafted from Gr 2 (CP Titanium) and Gr 5 (Ti-6Al-4V) is engineered to perform in challenging industrial environments. These titanium grades are selected for their remarkable combination of corrosion resistance, strength, and lightweight properties, making this valve suitable for diverse applications in the chemical, oil and gas, aerospace, and marine industries.

Titanium Grades Overview

Gr 2 Titanium (Commercially Pure): This grade is widely recognized for its superior corrosion resistance, particularly in environments involving saltwater, chlorides, and high temperatures. It is highly suitable for applications where chemical exposure and corrosion resistance are critical, such as in marine and chemical processing industries.
Gr 5 Titanium (Ti-6Al-4V): Known for its exceptional strength-to-weight ratio, Gr 5 titanium is a blend of 90% titanium, 6% aluminum, and 4% vanadium. It offers outstanding tensile strength and fatigue resistance, making it ideal for high-performance applications, such as in aerospace, high-pressure systems, and oil and gas sectors.

Key Features

Two-Way Flow Control: Provides flexible flow control with bi-directional functionality
High-Pressure Performance: Designed for demanding high-pressure systems
Corrosion Resistance: Excellent resistance to chlorides, acids, and seawater
Temperature Resistance: Engineered to handle temperatures up to 450°C
Durable and Long-Lasting: Withstands physical stress with minimal wear

Technical Specifications

Feature	Description
Valve Type	Two-Way Ball Valve
Material Composition	Gr 2 Titanium (CP Titanium) / Gr 5 Titanium (Ti-6Al-4V)
Size	6 Inch (DN 150)
Pressure Rating	ASME Class 150, Class 300, or higher
Temperature Range	-50°C to 450°C
Flow Control	Bi-directional Flow
Connection Type	Flanged, Threaded, or Welded
Sealing Mechanism	High-performance, leak-proof design
Applications	Chemical, Oil & Gas, Aerospace, Marine
Compliance Standards	ASME B16.34, API 6D

Titanium Grades Comparison

Property	Gr 2 Titanium (CP Titanium)	Gr 5 Titanium (Ti-6Al-4V)
Tensile Strength	450 MPa (minimum)	900 MPa (minimum)
Yield Strength	275 MPa (minimum)	830 MPa (minimum)
Elongation	20-25%	10-14%
Density	4.51 g/cm³	4.43 g/cm³
Corrosion Resistance	Excellent in saltwater and chemicals	Very good, but slightly less resistant to chlorides
Fatigue Strength	Good	Excellent in high-stress environments
Temperature Resistance	Up to 400°C	Up to 450°C

Key Benefits

Corrosion Resistance: Gr 2 Titanium excels in resisting corrosion in aggressive environments like seawater and acidic solutions. Gr 5 Titanium provides strong protection in general industrial settings.
Strength and Durability: Gr 5 Titanium offers superior strength for high-pressure applications, while Gr 2 Titanium provides excellent fatigue resistance where corrosion is the primary concern.
High-Temperature Stability: Both grades offer excellent temperature resistance, with Gr 5 capable of enduring temperatures up to 450°C.

Applications

Oil & Gas: High-pressure pipelines, refineries, and offshore oil platforms
Chemical Processing: Controlling flow of corrosive fluids in reactors and heat exchangers
Marine: Shipbuilding and offshore drilling applications
Aerospace: High-performance components requiring light weight and high tensile strength
General Industrial: Power generation and water treatment facilities

Performance Summary

The 6-Inch Two-Way Ball Valve made from Gr 2 and Gr 5 Titanium strikes a perfect balance between strength, corrosion resistance, and performance. By combining the best characteristics of both CP Titanium and Ti-6Al-4V, it provides superior performance in demanding applications where reliability and durability are essential. Whether used in chemical processing, oil and gas, marine, or aerospace industries, this valve is designed to meet the highest standards of excellence, offering long-lasting service in the harshest environments.
