Titanium Ball Valve
Created with Pixso.

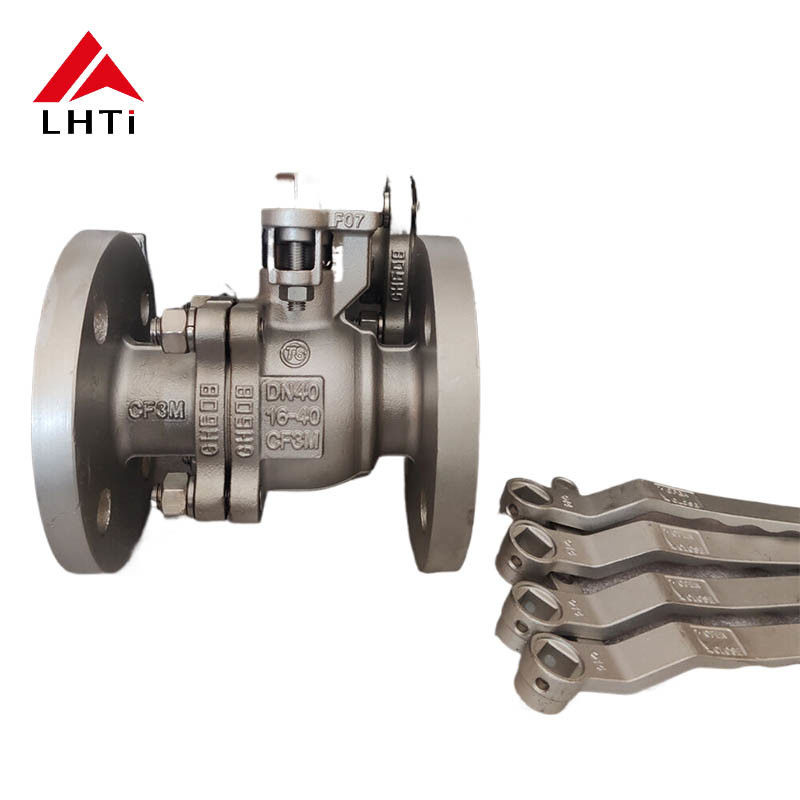

ASME Gr5 Gr7 Two Way Ball Valve Titanium Industrial Ball Valve

ASME Gr5 Gr7 Two Way Ball Valve Titanium Industrial Ball Valve

ASME Gr5 Gr7 Two Way Ball Valve Titanium Industrial Ball Valve

Brand Name: LHTi
Model Number: TItanium Ball Valve
MOQ: 100 pieces
Price: negotiable
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability: 200 Ton/Tons Per Month
Detail Information
Product Description
Detail Information
Place of Origin:
Baoji, China
Certification:
ISO9001,CE,etc
Type:
Ball Valve
Cavity Pressure Relief:
Yes
End Connection:
Female
Working Temp:
150°-425°
Top Entry Design:
Available
Low Emission Design:
API 624
Ti Content:
99.6%
Trim Material:
Titanium
Packaging Details:
Plywood case or pallet, or as per your requirement
Supply Ability:
200 Ton/Tons Per Month
Highlight:

Two Way Titanium Industrial Ball Valve

,

ASME Gr7 Titanium Industrial Ball Valve

Product Description
ASME Gr5 Gr7 Two Way Ball Valve Titanium Industrial Ball Valve
The ASME Gr5 Gr7 Two-Way Ball Valve made from Gr5 (Ti-6Al-4V) and Gr7 (Ti-0.3Mo-0.8Ni) titanium alloys is specifically engineered for high-pressure release applications. This valve combines the exceptional strength and durability of Gr5 titanium with the superior corrosion resistance and high-temperature capabilities of Gr7 titanium, delivering robust performance under extreme conditions including high pressure and harsh environments.
Titanium Alloy Overview
  • Gr5 Titanium (Ti-6Al-4V): Renowned for its outstanding strength-to-weight ratio and excellent fatigue resistance, Gr5 titanium is widely used in aerospace, automotive, and industrial applications demanding high strength and durability.
  • Gr7 Titanium (Ti-0.3Mo-0.8Ni): This titanium alloy incorporates small amounts of Molybdenum (Mo) and Nickel (Ni), significantly enhancing corrosion resistance, particularly in chloride-induced stress corrosion cracking environments. Ideal for applications requiring both high corrosion resistance and strength.
Key Features
  • High Pressure Release Valve: Engineered to handle high-pressure situations and release pressure safely and effectively, ideal for oil and gas, petrochemical, and chemical manufacturing industries.
  • Gr5 and Gr7 Titanium Alloys: Combines superior strength of Gr5 with enhanced corrosion resistance of Gr7 for demanding applications in moderate and harsh environments.
  • Two-Way Flow Control: Provides reliable bi-directional flow control for efficient fluid management in critical applications.
  • Temperature Resistance: Excellent high-temperature performance, withstanding temperatures up to 450°C.
  • Compact and Durable Design: Designed for industrial environments requiring compact, yet durable, high-performance valve solutions.
Technical Specifications
Valve Type Two-Way Ball Valve
Material Options Gr5 Titanium (Ti-6Al-4V), Gr7 Titanium (Ti-0.3Mo-0.8Ni)
Size DN 15 (½ inch)
Pressure Rating ASME Class 150, 300, High-Pressure Release
Temperature Range -50°C to 450°C
Flow Control Bi-directional Flow
End Connections Flanged, Threaded, or Welded
Sealing Type Leak-proof, high-performance design
Application High-Pressure Release, Oil & Gas, Petrochemical, Chemical Processing, Marine
Standard Compliance ASME B16.34, API 6D
Material Comparison: Gr5 vs Gr7 Titanium
Property Gr5 Titanium (Ti-6Al-4V) Gr7 Titanium (Ti-0.3Mo-0.8Ni)
Tensile Strength 900 MPa (minimum) 830 MPa (minimum)
Yield Strength 830 MPa (minimum) 750 MPa (minimum)
Elongation 10-14% 12-16%
Density 4.43 g/cm³ 4.47 g/cm³
Corrosion Resistance Excellent for general corrosion environments Superior corrosion resistance in chloride-rich environments
Fatigue Strength Excellent Good
Temperature Resistance Excellent (up to 450°C) Excellent (up to 450°C)
Performance Advantages
  • High Pressure Release: Specifically designed for high-pressure applications, ensuring safe pressure relief and minimizing risk to pipes and equipment.
  • Corrosion Resistance: Both Gr5 and Gr7 titanium alloys offer excellent corrosion resistance, with Gr7 providing enhanced resistance to chloride-induced stress corrosion cracking.
  • Strength and Durability: Gr5 delivers excellent strength and fatigue resistance, while Gr7 enhances overall performance in aggressive chemical environments.
  • High Temperature Resistance: Suitable for high-temperature applications up to 450°C, ensuring durability under extreme heat conditions.
  • Compact and Efficient Design: With DN 15 (½ inch) size, this valve is compact yet highly efficient for space-constrained installations.
Industrial Applications
  • Oil & Gas Industry: Used in high-pressure pipelines, refineries, and offshore platforms where pressure release and corrosion resistance are crucial.
  • Chemical Processing: Perfect for controlling fluid flows and managing high-pressure systems in chemical manufacturing, particularly with aggressive chemicals.
  • Petrochemical Industry: Essential for environments where valves must handle extreme pressures and ensure safe release of corrosive or hazardous chemicals.
  • Marine Applications: Gr7 titanium's resistance to chloride-induced corrosion makes it ideal for marine applications, including offshore installations and shipbuilding.
  • Aerospace: Given the high strength and lightweight nature of Gr5, this valve is used in aerospace applications where pressure release and minimal weight are essential.
