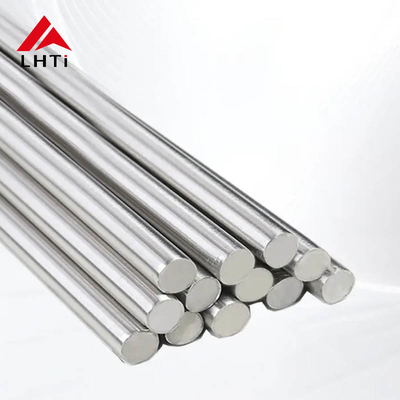

Cold Rolled Titanium Bar ASTM B348 Grade 2 Grade 5 for Medical Processing Forging Rolling Annealing

Titanium Bar ASTM B348 (Grade 2 & Grade 5) and Titanium Rod for Medical Applications

Titanium and its alloys, particularly Grade 2 (commercially pure titanium) and Grade 5 (Ti-6Al-4V, an alloy of titanium, aluminum, and vanadium), are widely used in medical applications due to their outstanding properties, including biocompatibility, strength, and corrosion resistance. ASTM B348 is the specification that defines the requirements for titanium bars, rods, and billets used in medical applications.

Below is a comprehensive overview of Grade 2 and Grade 5 titanium bars and rods, focusing on their uses and advantages in medical implants and medical devices.

Titanium Grade 2 (Commercially Pure Titanium)

Grade 2 titanium is the most widely used commercially pure titanium. It is known for its excellent corrosion resistance and biocompatibility, making it ideal for applications where strength-to-weight ratio and resistance to bodily fluids are critical.

Key Properties of Titanium Grade 2:

1. Corrosion Resistance:

   • Grade 2 titanium offers excellent resistance to corrosion, especially in chloride environments like bodily fluids, which is crucial for medical implants that are in direct contact with the human body.

2. Biocompatibility:

   • Titanium Grade 2 is highly biocompatible, which means it does not cause adverse reactions in the body. It is commonly used in long-term implants, such as dental implants, bone screws, and joint replacements.

3. Strength and Lightweight:

   • Grade 2 has good mechanical properties, providing sufficient strength for medical applications while still being lightweight, which is beneficial for implants that need to maintain biomechanical performance without adding excess weight to the body.

4. Weldability and Formability:

   • Grade 2 titanium is relatively easy to weld, machine, and form into different shapes such as bars, rods, or round bars, making it versatile for a wide range of medical uses.

5. Mechanical Properties:

   • Tensile Strength: 345 MPa (50 ksi)
   • Yield Strength: 275 MPa (40 ksi)
   • Elongation: 20%

Applications of Grade 2 Titanium in Medical Implants:

• Orthopedic Implants: Used in the production of screws, plates, and pins for bone fracture repair.
• Dental Implants: Frequently used in the production of dental implants due to its biocompatibility and long-term stability in the oral environment.
• Surgical Tools and Devices: Commonly used in surgical instruments, scalpels, and forceps due to its non-reactivity and strength.

Titanium Grade 5 (Ti-6Al-4V) - Titanium Alloy

Grade 5 titanium, or Ti-6Al-4V, is an alloy composed of 90% titanium, 6% aluminum, and 4% vanadium. It is one of the most commonly used titanium alloys, known for its higher strength, good fatigue resistance, and improved mechanical properties over pure titanium grades.

Key Properties of Titanium Grade 5:

1. Higher Strength:

   • Grade 5 titanium offers significantly higher tensile strength than commercially pure grades, making it an excellent choice for applications that require extra durability and the ability to withstand high stress.

2. Corrosion Resistance:

   • It still maintains excellent corrosion resistance, particularly in environments exposed to bodily fluids, similar to Grade 2 titanium, but with enhanced strength and fatigue resistance.

3. Biocompatibility:

   • Like Grade 2, Grade 5 titanium is highly biocompatible and is a popular choice for implants and surgical devices that remain in the body over extended periods.

4. Fatigue Resistance:

   • The addition of aluminum and vanadium in Grade 5 significantly improves its fatigue resistance, making it well-suited for applications such as joint replacements or bone screws, which experience continuous stress.

5. Weldability and Fabricability:

   • Grade 5 titanium is slightly harder to weld and machine than Grade 2 but still remains highly workable with the right equipment. It is often used for precision components where higher strength is required.

6. Mechanical Properties:

   • Tensile Strength: 895 MPa (130 ksi)
   • Yield Strength: 828 MPa (120 ksi)
   • Elongation: 10%

Applications of Grade 5 Titanium in Medical Implants:

• Joint Replacements: Grade 5 titanium is commonly used for hip, knee, and shoulder joint replacements due to its strength and fatigue resistance.
• Bone Screws and Plates: Often used for screws, plates, and pins used in fracture fixation due to its higher strength and ability to withstand significant loading.
• Dental Implants: Grade 5 is sometimes used for dental implants in cases requiring higher strength, particularly in patients with higher activity levels.
• Surgical Tools and Equipment: It is also used for high-stress surgical instruments due to its strength and biocompatibility.

Titanium Bars, Rods, and Round Bars for Medical Applications

Titanium bars, rods, and round bars, whether made from Grade 2 or Grade 5 titanium, are commonly used as raw materials in the production of medical implants and devices. These materials can be machined, forged, and welded into specific shapes, such as pins, plates, screws, and prostheses, making them highly versatile.

Advantages of Titanium Bars, Rods, and Round Bars:

1. Custom Fabrication:

   • These materials can be cut and shaped to precise dimensions, allowing manufacturers to create custom implants tailored to individual patient needs.

2. Strength and Durability:

   • Titanium bars and rods provide high strength with low weight, ensuring long-lasting, reliable performance in medical implants and devices.

3. Biocompatibility and Corrosion Resistance:

   • Titanium is highly biocompatible, meaning it won’t cause adverse reactions when implanted in the human body. Additionally, its corrosion resistance makes it ideal for use in environments where implants are exposed to body fluids.

4. Wide Range of Applications:

   • These materials are used in a variety of medical devices, including orthopedic implants, dental implants, and surgical instruments.

Summary of Titanium Bar Grades for Medical Applications

Conclusion

Both Grade 2 (commercially pure) and Grade 5 (Ti-6Al-4V) titanium rods, bars, and round bars are essential in medical applications due to their outstanding strength, biocompatibility, and corrosion resistance. Grade 2 is often used in applications where corrosion resistance and lightweight are paramount, while Grade 5 is favored for its higher strength and fatigue resistance, making it ideal for high-stress implants like joint replacements. Whether in bone screws, dental implants, or surgical tools, titanium’s versatility and reliability make it the material of choice in the medical industry.
