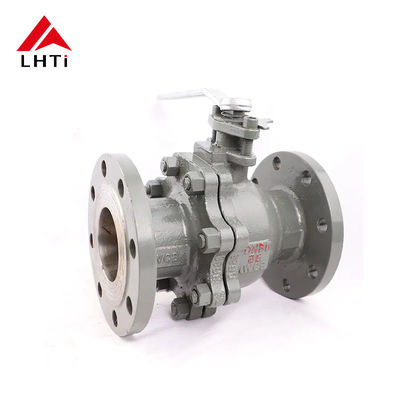

ANSI Class 150 Gr5 Titanium Ball Valve with Full Port and Bi-directional Flow for High Temperature Applications

Name: ANSI Class 150 Gr5 Titanium Ball Valve with Full Port and Bi-directional Flow for High Temperature Applications
Brand: Baoji Lihua Nonferrous Metals Co., Ltd.
SKU: Titanium Ball Valve
Price: 22,899.08 USD
Availability: InStock

Brand Name:	LHTi
Model Number:	Titanium Ball Valve
MOQ:	100 pieces
Price:	negotiable
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	200 Ton/Tons Per Month

Detail Information

Product Description

Detail Information

Place of Origin:

Baoji, China

Certification:

ISO9001,CE,etc

Blowout Proof Stem:

Yes

Temperature Rating:

Up To 600°F

Ball Material:

Titanium, Stainless Steel

Flow Pattern:

Bi-directional

Locking Device:

Optional

Density:

4.54 G/cm3

Size:

1/2 Inch - 12 Inch

Temperture:

-196°C To 350°C (-320°F To 662°F)

Operation:

Manual, Gear, Pneumatic, Electric

Seat Type:

Soft, Metal

Design Standard:

API 6D, ASME B16.34

Pressure Rating:

Class 150 - Class 2500

Valve Type:

Ball Valve

Actuator Type:

Manual, Pneumatic, Electric

Certifications:

API 6D, API 607, ISO 9001

Packaging Details:

Plywood case or pallet, or as per your requirement

Supply Ability:

200 Ton/Tons Per Month

Highlight:

Two Piece Titanium Ball Valve

Gr5 Titanium Ball Valve

ANSI Class 150 Titanium Ball Valve

Product Description

ANSI Class 150 Titanium Ball Valve Two-Piece Gr5 Fire Safe Flanged Full Port Ball Valve

Premium High-Performance Valve for Industrial Applications

The ANSI Class 150 Titanium Ball Valve is a premium, high-performance valve designed for demanding industrial applications. Constructed from Grade 5 (Gr5) titanium, this two-piece ball valve offers exceptional strength-to-weight ratio and superior corrosion resistance. Featuring a full port design for unrestricted flow and fire-safe construction for hazardous environments, this valve is ideal for critical applications across multiple industries.

Key Features and Specifications

Material: Grade 5 Titanium (Ti-6Al-4V) alloy offering high strength, excellent corrosion resistance, and outstanding fatigue resistance
Pressure Rating: ANSI Class 150 (150 psi at standard temperature conditions)
Construction: Two-piece design for easier maintenance and disassembly
Fire-Safe: Designed to remain operational in fire conditions, preventing leaks of hazardous fluids
Connections: Flanged ends compliant with ANSI B16.5/B16.34 standards
Flow Design: Full port configuration for unrestricted flow and minimal pressure drop

Technical Specifications

Feature	Specification
Valve Type	Two-Piece Ball Valve
Material	Titanium Gr5 (Ti-6Al-4V)
Pressure Rating	ANSI Class 150
Size Range	DN15-DN300 (varies by application)
Flow Type	Full Port (No Flow Restriction)
Fire-Safe	Yes, fire-safe design
Flange Standard	ANSI B16.5, ANSI B16.34
Operating Temperature	-50°C to 300°C (varies with application)
End Connection	Flanged Ends, ANSI Class 150

Industrial Applications

Chemical Processing: Handling aggressive chemicals with superior corrosion resistance
Oil and Gas Industry: Fire-safe operation in high-temperature environments
Marine Applications: Excellent resistance to seawater corrosion
Water Treatment: Corrosion-resistant performance in treatment plants
Petrochemical Industry: Safe operation in pipelines transporting flammable materials

Advantages

Exceptional corrosion resistance against seawater, acids, and alkalis
High tensile strength and fatigue resistance for demanding applications
Fire-safe design maintains leak-tight seal in extreme temperatures
Two-piece construction simplifies maintenance and repairs
Full port design ensures minimal flow restriction and pressure drop

The ANSI Class 150 Titanium Ball Valve (Two-Piece, Fire-Safe, Full Port) delivers superior performance in harsh industrial environments. Its Grade 5 titanium construction provides unmatched corrosion resistance, while the fire-safe design ensures operational reliability in high-risk situations. With its full port configuration and ANSI Class 150 pressure rating, this valve is an optimal solution for chemical processing, oil and gas, marine, and water treatment applications.
