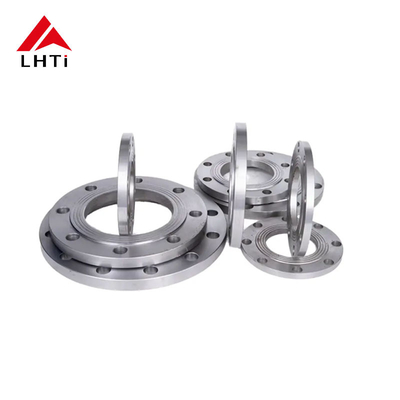

ASME B16.5 Titanium Slip-On Flange Gr1 Gr2 Gr5 Class 300 SORF Raised Face for Water Supply Management

ASME B16.5 Titanium Slip-On Flange Gr1, Gr2, Gr5 Class 300 SORF Raised Face for Water Supply Management

Titanium flanges are widely used in industries that require superior corrosion resistance, lightweight properties, and high strength. One common type of flange used in industrial applications is the Slip-On Flange (SORF). When manufactured according to the ASME B16.5 standard, these flanges meet rigorous performance and safety requirements for high-pressure and high-temperature systems. In particular, Titanium Slip-On Flanges made from Grade 1 (Gr1), Grade 2 (Gr2), and Grade 5 (Gr5) titanium alloys are increasingly favored for their properties in water supply management systems.

What is an ASME B16.5 Slip-On Flange (SORF)?

The ASME B16.5 standard provides specifications for flanges used in piping systems, including materials, pressure ratings, and dimensions. Slip-On Flanges (SORF) are designed to slide over the pipe ends and then be welded into place. This makes them a preferred choice in situations where ease of installation is critical. Class 300 refers to the pressure rating, indicating the maximum pressure the flange can handle, while Raised Face describes the type of face that provides a sealing surface when paired with gaskets.

Titanium Alloys for Flanges: Gr1, Gr2, and Gr5

Titanium is an ideal material for applications requiring high strength and resistance to corrosive environments. The commonly used grades for titanium flanges are Gr1, Gr2, and Gr5, each offering specific advantages:

• Grade 1 (Gr1): Commercially pure titanium, offering exceptional corrosion resistance, especially in mildly corrosive environments.
• Grade 2 (Gr2): Slightly stronger than Gr1 with good corrosion resistance and weldability, widely used in industrial and chemical applications.
• Grade 5 (Gr5): Titanium alloy containing aluminum and vanadium, offering superior strength and heat resistance, suitable for high-stress and high-temperature applications.

Why Use Titanium Flanges in Water Supply Management?

Water supply systems often involve exposure to harsh environmental factors such as high pressure, temperature variations, and potential chemical contaminants. Titanium flanges provide an optimal solution for these systems due to:

• Corrosion Resistance: Titanium alloys offer superior resistance to corrosion from chlorides, seawater, and other chemicals that can degrade other metals.
• Lightweight: Titanium is much lighter than stainless steel or other materials, which reduces the overall weight of the system and facilitates easier handling and installation.
• Durability and Long Service Life: Titanium flanges are known for their long-lasting performance, reducing the need for frequent replacements and minimizing maintenance costs.

ASME B16.5 Titanium Slip-On Flange Specifications

Titanium Slip-On Flanges manufactured to the ASME B16.5 standard are available in different pressure ratings, sizes, and materials. The Class 300 rating indicates these flanges are capable of withstanding high pressure (up to 300 psi) and are commonly used in applications like water supply systems that require reliability under substantial pressure conditions.

Key Features of ASME B16.5 Titanium Slip-On Flanges (SORF)

Applications of Titanium Slip-On Flanges in Water Supply Systems

Titanium Slip-On Flanges are an ideal choice for water supply systems, particularly when durability, performance under pressure, and resistance to corrosion are essential. These flanges can be used in various water supply management applications, such as:

1. Water Treatment Plants: Titanium flanges can withstand the chemical exposure in water treatment processes, preventing corrosion and ensuring long-term system reliability.
2. Desalination Plants: Due to their high corrosion resistance, titanium flanges are ideal for systems that handle seawater and require frequent exposure to saltwater.
3. Industrial Water Systems: For industries that require robust water supply systems with minimal maintenance, titanium flanges provide a high-performance solution.
4. Piping Systems in High-Pressure Applications: Class 300 titanium slip-on flanges are perfect for handling high-pressure situations in pipelines, ensuring safety and durability.

Conclusion

Titanium Slip-On Flanges (SORF) manufactured according to the ASME B16.5 standard in Class 300 offer a reliable, high-performance solution for water supply management systems. Whether made from Grade 1, Grade 2, or Grade 5 titanium, these flanges ensure durability, resistance to corrosion, and long service life, even in the most demanding conditions. Their ability to handle high pressures, temperature variations, and aggressive environments makes them an ideal choice for modern water supply systems that prioritize safety, efficiency, and low maintenance.
