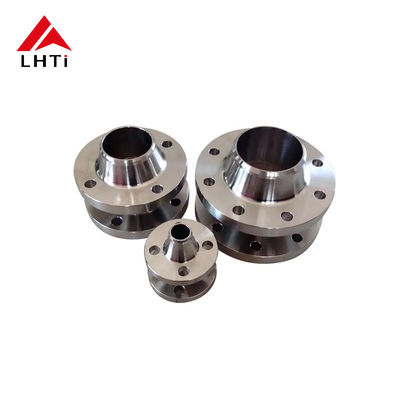

Titanium Weld Neck Flange Gr1 Gr2 Gr5 EN1092-1 Class 150 Corrosion Resistant for Pipeline Systems

Name: Titanium Weld Neck Flange Gr1 Gr2 Gr5 EN1092-1 Class 150 Corrosion Resistant for Pipeline Systems
Brand: Baoji Lihua Nonferrous Metals Co., Ltd.
SKU: Weld Neck Flange
Price: 1,503.00 USD
Availability: InStock

Brand Name:	LHTi
Model Number:	Weld Neck Flange
MOQ:	100 pieces
Price:	negotiable
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	500 Ton/Tons Per Month

Detail Information

Product Description

Detail Information

Place of Origin:

Baoji, China

Certification:

ISO9001,CE,etc

Payment:

TT And Paypal

Surface Finish:

Smooth, Raised Face, Ring Type Joint

Advantages:

Durable, Long-lasting, Cost-effective, Easy To Install And Maintain

Inspection:

UT%

Outer Diameter Max:

1300mm

Corrosion Resistance:

Excellent

Keyword:

WN Titanium Flange

Color:

Metal Nature

Working Temperature:

-60°C~250°C

Material Standard:

ASTMB381

Production Method:

Forged, Die Forged

Connection Method:

Welding

Working Temp:

-60℃~250℃

Qc Documents:

Material And Dimension Report As Normal

Pressure:

150#-2500#

Packaging Details:

Plywood case or pallet, or as per your requirement

Supply Ability:

500 Ton/Tons Per Month

Highlight:

Class 150 Titanium Flange

Pipeline Systems Titanium Flange

EN1092-1 Titanium Flange

Product Description

Titanium Flange EN1092-1: Gr1, Gr2, Gr5 Weld Neck Flange Class 150

Titanium Flange EN1092-1 refers to flanges manufactured from titanium alloys in compliance with the EN 1092-1 European standard. This specification ensures dimensional accuracy, material quality, and pressure ratings for reliable performance in demanding pipeline systems. Titanium flanges are particularly valued in industries requiring exceptional corrosion resistance, including chemical processing, marine applications, and aerospace engineering.

Titanium Flange Overview

Titanium is renowned for its exceptional corrosion resistance, lightweight properties, and high strength-to-weight ratio. Titanium flanges, particularly those made from Grade 2 (Gr2) and Grade 5 (Gr5) alloys, deliver outstanding performance in extreme conditions including high temperatures and aggressive chemical environments.

Key Properties of Titanium Flanges:

Corrosion Resistance: Outstanding resistance to corrosive substances for harsh environment applications
Lightweight: Significantly lighter than steel and stainless steel alternatives
High Strength-to-Weight Ratio: Superior strength without adding unnecessary system weight
Temperature Resistance: Maintains structural integrity under extreme heat conditions

EN 1092-1 Standard Specifications

The EN 1092-1 European standard defines dimensions, designations, and material properties for flanges used in piping systems. This ensures compatibility and reliability when connecting pipes, valves, and other components. The standard covers various flange types including weld-neck, slip-on, blind, and socket weld configurations.

Key Aspects of EN 1092-1 Standard:

Flange Types: Multiple configurations for different applications and pressure ratings
Pressure Ratings: Classes including PN10, PN16, PN25, and PN40 for maximum pressure capacity
Dimensions: Precise specifications for bolt hole sizes, flange thickness, and diameter

Advantages of Titanium Flanges EN1092-1

Corrosion Resistance:

Highly resistant to aggressive acids, chlorides, and corrosive substances, making titanium flanges ideal for chemical processing, marine, and desalination applications.

Lightweight Construction:

Substantial weight reduction benefits for aerospace and maritime industries without compromising strength or performance.

High Strength Capability:

Exceptional tensile strength from Gr2 and Gr5 alloys suitable for high-pressure and high-temperature systems.

Extended Service Life:

Superior durability reduces maintenance frequency, downtime, and replacement costs for long-term operational savings.

Titanium Flange Grades: Gr1, Gr2, and Gr5

Titanium Grade 1 (Gr1):

Properties: Commercially pure titanium with high corrosion resistance, excellent weldability, and good formability
Applications: Low-strength applications requiring high corrosion resistance in marine and chemical processing

Titanium Grade 2 (Gr2):

Properties: Optimal balance between corrosion resistance, strength, and weldability
Applications: Chemical processing, power plants, and aerospace industries

Titanium Grade 5 (Gr5):

Properties: Ti-6Al-4V alloy with aluminum and vanadium for increased strength and heat resistance
Applications: High-stress and high-temperature applications in aerospace, medical, and industrial systems

EN 1092-1 Titanium Flange Specifications

Feature	Titanium Gr1	Titanium Gr2	Titanium Gr5 (Ti-6Al-4V)
Chemical Composition	99% pure titanium	99% pure titanium	90% titanium, 6% aluminum, 4% vanadium
Tensile Strength	≥ 240 MPa	≥ 345 MPa	≥ 900 MPa
Elongation	≥ 24%	≥ 20%	≥ 10%
Corrosion Resistance	Excellent in neutral and acidic environments	Excellent in acidic, alkaline, and seawater environments	Superior in high-temperature and aggressive environments
Temperature Resistance	Suitable for temperatures up to 400°C	Suitable for temperatures up to 450°C	Suitable for temperatures up to 500°C
Weight	Light	Light	Slightly heavier but stronger than Gr2
Applications	Marine, chemical processing	Aerospace, chemical, power plants	Aerospace, military, high-stress industrial systems

Conclusion

Titanium flanges manufactured to EN 1092-1 standards (Gr1, Gr2, Gr5) provide unmatched corrosion resistance, strength, and lightweight properties for demanding industrial applications. These flanges ensure long-lasting reliability and performance in pipeline systems across chemical, marine, aerospace, and power industries, delivering superior mechanical properties and extended service life for engineering applications requiring premium flange materials and design standards.
