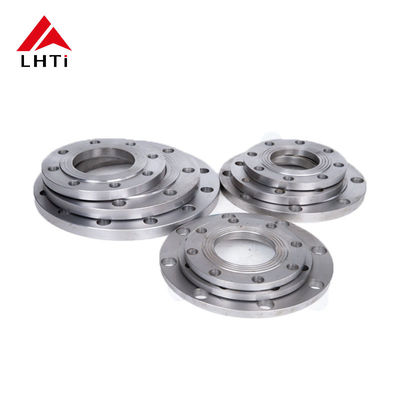

ASME B16.5 Titanium Slip-On Flange ANSI Class 150LBS with Corrosion Resistance for Oil and Gas Industry

Name: ASME B16.5 Titanium Slip-On Flange ANSI Class 150LBS with Corrosion Resistance for Oil and Gas Industry
Brand: Baoji Lihua Nonferrous Metals Co., Ltd.
SKU: Blind Flange
Price: 1,503.00 USD
Availability: InStock

Brand Name:	LHTi
Model Number:	Blind Flange
MOQ:	100 pieces
Price:	negotiable
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	500 Ton/Tons Per Month

Detail Information

Product Description

Detail Information

Place of Origin:

Baoji, China

Certification:

ISO9001,CE,etc

Compressive Strength:

Powerful

Flange Diameter:

3.50 Inches

Material Grade:

Titanium Grade 2, Grade 12

Powder Or Not:

Not Powder

Face Type:

Flat Face

Technique:

Forged And CNC Machined

Pressure:

PN 6

Commodity:

Flat Welded Flange /welding Plate Flange

Bolt Holes:

Process:

Casting, Forging, Machining, Etc.

Dimensions:

DN10-600

Section Height:

Max.250mm

Marterial:

Titanium +SS

Hardness:

HB180-215

Pressure Class:

CL150

Packaging Details:

Plywood case or pallet, or as per your requirement

Supply Ability:

500 Ton/Tons Per Month

Highlight:

Gr2 Titanium Slip On Flange

Gr5 Titanium Slip On Flange

ASME B16.5 Titanium Slip On Flange

Product Description

ASME B16.5 Titanium Slip-On Flange ANSI Class 150LBS

High-performance titanium slip-on flanges manufactured from Grade 2, Grade 5, and Grade 7 titanium alloys specifically engineered for the demanding requirements of the oil and gas industry.

Product Overview

ASME B16.5 titanium slip-on flanges are critical components designed with raised faces to provide secure, leak-proof connections for pipelines and equipment operating under high pressure and corrosive conditions. These flanges optimize operational reliability and efficiency in offshore oil rigs, refineries, petrochemical plants, and other harsh industrial environments.

Material and Construction

Titanium Grades:
- Grade 2 (Gr2): Commercial-grade titanium offering excellent corrosion resistance in acidic environments
- Grade 5 (Gr5): Titanium-aluminum-vanadium alloy providing improved strength and high-temperature performance
- Grade 7 (Gr7): Palladium-enhanced alloy for superior resistance to hydrogen embrittlement and corrosion
Raised Face Design: Enhanced sealing surface for improved leak-tightness and pressure resistance
Slip-On Design: Easy installation with inside and outside welding for secure, permanent connections

Technical Specifications

Flange Size (inches)	Outside Diameter (OD)	Bolt Circle Diameter (BCD)	Bolt Hole Quantity	Bolt Hole Diameter	Thickness (T)	Pressure Rating (psi)
1/2"	3.5"	2.75"	4	0.5"	0.375"	150
1"	4.5"	3.75"	4	0.5"	0.375"	150
2"	6.5"	5.5"	4	0.5"	0.375"	150
4"	9.0"	7.5"	8	0.75"	0.5"	150
6"	12.0"	10.0"	8	0.75"	0.625"	150
8"	14.5"	12.0"	8	0.75"	0.75"	150

Sample dimensions for ASME B16.5 Class 150 titanium slip-on flanges. Exact measurements may vary by manufacturer.

Applications in Oil and Gas Industry

Offshore Platforms: Withstand harsh marine environments and corrosive seawater
Refineries and Petrochemical Plants: Handle aggressive chemicals and high temperatures
Pipeline Systems: Secure connections for gas, oil, and chemical transport systems

Key Benefits

Superior Corrosion Resistance: Excellent performance in saltwater, hydrocarbons, and chemical environments
High Strength-to-Weight Ratio: Optimal balance of performance and weight considerations
Temperature Tolerance: Maintains integrity under extreme thermal conditions
Long-Term Durability: Extended service life in aggressive operating environments

Quality Assurance

All titanium slip-on flanges undergo comprehensive inspection and testing to ensure compliance with ASME B16.5 standards:

Material certification for grade compliance
Visual and dimensional inspection
Pressure testing (hydrostatic or pneumatic)
Non-destructive testing (ultrasonic and radiographic inspection)

Conclusion

ASME B16.5 Class 150 Titanium Slip-On Flanges provide essential, reliable connections for oil and gas infrastructure. Their exceptional corrosion resistance, mechanical strength, and pressure handling capabilities ensure operational efficiency and safety in the most demanding industrial environments, making them a cost-effective long-term solution for critical applications.
