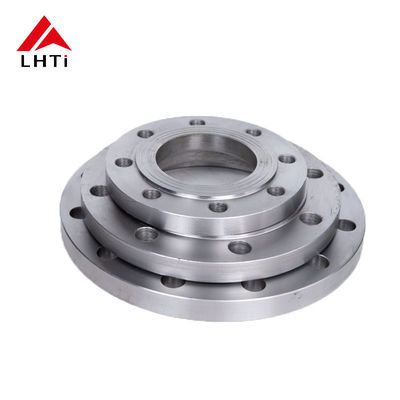

Grade 2 Titanium Slip-On Flange with Class 600 Pressure Rating and Raised Face Design

Name: Grade 2 Titanium Slip-On Flange with Class 600 Pressure Rating and Raised Face Design
Brand: Baoji Lihua Nonferrous Metals Co., Ltd.
SKU: Weld Neck Flange
Price: 1,503.00 USD
Availability: InStock

Brand Name:	LHTi
Model Number:	Weld Neck Flange
MOQ:	200 pieces
Price:	negotiable
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	500 Ton/Tons Per Month

Detail Information

Product Description

Detail Information

Place of Origin:

Baoji, China

Certification:

ISO9001,CE,etc

Connection:

Welding

Temperature Range:

-250°F - 600°F

Main Product:

Seamless & Welded Steel Pipe,flange

Gasket Type:

Spiral Wound/Non-asbestos/PTFE

Manufacturer:

Available From Various Manufacturers Worldwide

Flange Facing:

RF, FF, RTJ

Stype:

Process:

Casting, Forging, Machining, Etc.

Materials:

Titanium Metal Or Titanium Alloy

Grade:

Gr1,Gr2,Gr7,Gr12

Qc Documents:

Material And Dimension Report As Normal

Surface:

Tolerance:

ISO 9001 CT8~10 Or GB 12362 Precision

Face Types:

RF, FF, TG, RJ Etc.

Shape:

Circular

Packaging Details:

Plywood case or pallet, or as per your requirement

Supply Ability:

500 Ton/Tons Per Month

Highlight:

SORF Titanium Slip On Flange

Industrial Applications Titanium Slip On Flange

ASME B16.5 Titanium Slip On Flange

Product Description

Gr2 Gr5 Ti SORF Flanges – ASME B16.5 Class 600 RF Industrial

In industrial applications, robust and reliable flange connections are crucial for maintaining the integrity and efficiency of fluid systems under high pressure. ASME B16.5 Gr2 Gr5 Titanium Slip-On Flanges Class 600 with a Raised Face (RF) are engineered to meet the rigorous demands of high-pressure environments. These flanges are made from Grade 2 (Gr2) and Grade 5 (Gr5) Titanium, offering superior corrosion resistance and strength, making them ideal for a variety of industrial applications such as chemical processing, power generation, and offshore oil and gas systems.

Key Features of Titanium Slip-On Flanges

Titanium Slip-On Flanges designed to ASME B16.5 specifications, Class 600, offer the following key features:

High Pressure Rating: With a Class 600 pressure rating, these flanges are capable of handling high-pressure environments, making them suitable for demanding industrial applications.
Corrosion Resistance: Titanium is known for its outstanding resistance to corrosion, particularly in aggressive environments like acidic, saline, or chemically reactive fluids, ensuring a long lifespan.
Strength and Durability: Available in Grade 2 and Grade 5 Titanium, these flanges offer a blend of strength, flexibility, and durability for various high-stress applications.
Ease of Installation: The Slip-On design allows for simple and efficient installation by slipping over the pipe, making it a cost-effective choice for many systems.
Raised Face Design: The Raised Face (RF) ensures a more secure sealing surface, reducing the likelihood of leaks, even in high-pressure systems.

Titanium Grades for Slip-On Flanges

Grade 2 Titanium (CP Titanium):

Corrosion Resistance: Excellent in a wide range of aggressive environments, especially in saltwater and chemical applications.
Strength: Moderate strength but superior in terms of ductility and weldability.
Applications: Widely used in applications such as seawater desalination, chemical processing, and marine environments.

Grade 5 Titanium (Ti-6Al-4V):

Alloy Composition: Contains aluminum and vanadium, which significantly increases the strength while maintaining good corrosion resistance.
Strength: Higher tensile and yield strength than Grade 2, making it ideal for high-pressure and high-stress applications.
Applications: Ideal for systems requiring higher strength, such as power generation, petrochemical, and offshore oil and gas operations.

Benefits of Gr2 and Gr5 Titanium in Class 600 SORF Flanges

Grade 2 (Gr2) Titanium:

Superior Corrosion Resistance: Ideal for industrial environments involving chemicals, saltwater, or acidic fluids.
Cost-Effective: Gr2 offers excellent corrosion resistance at a relatively lower cost compared to other grades, making it an ideal choice for applications where corrosion is the main concern but high strength is not a priority.

Grade 5 (Gr5) Titanium:

Increased Strength and Toughness: Gr5 is known for its high strength-to-weight ratio, making it suitable for environments that require high pressure and stress tolerance.
Longer Service Life: With its superior strength, Gr5 is often chosen for more demanding applications, ensuring a longer service life in challenging environments.

Applications of Titanium Slip-On Flanges Class 600 SORF with Raised Face

Titanium Slip-On Flanges Class 600 are widely used in various industrial sectors. The Raised Face (RF) design ensures an optimal sealing surface, even under extreme pressures. Some common applications include:

Chemical Processing Plants: Titanium is highly resistant to a wide range of aggressive chemicals, making these flanges ideal for use in chemical reactors, distillation columns, and piping systems.
Offshore Oil and Gas: In offshore environments, where exposure to seawater and high pressures is common, these flanges provide the corrosion resistance and strength required for critical connections in subsea pipelines, platforms, and storage facilities.
Power Generation: Used in nuclear power plants, thermal power stations, and gas turbines, where high pressures and temperatures demand components with outstanding strength and resistance to corrosion.
Desalination Plants: As Titanium is highly resistant to saltwater corrosion, these flanges are perfect for desalination systems where seawater is converted into potable water.
Water Treatment Facilities: Titanium's resistance to corrosion and biofouling makes it suitable for water treatment plants handling chemically treated or aggressive water.
High-Temperature and Pressure Systems: In industries like aerospace, pharmaceutical manufacturing, and fertilizer production, these flanges are used where high temperature and pressure conditions exist.

Flange Dimensions and Specifications

The following table illustrates the nominal dimensions, bolt sizes, and pressure ratings for ASME B16.5 Gr2 Gr5 Titanium Slip-On Flanges Class 600 SORF with Raised Face.

Nominal Pipe Size (NPS)	Bolt Circle Diameter (BC)	Bolt Size	Number of Bolts	Flange Thickness (T)	Face Width (F)	Bore (ID)
1/2"	2.38"	5/8"	4	0.88"	0.50"	0.84"
1"	3.00"	3/4"	4	1.00"	0.56"	1.05"
2"	4.38"	7/8"	8	1.12"	0.75"	2.07"
4"	6.75"	1"	8	1.50"	1.00"	4.09"
6"	9.00"	1-1/4"	12	1.75"	1.25"	6.13"
12"	13.50"	1-1/2"	16	2.38"	1.50"	12.13"
24"	21.75"	1-3/4"	20	3.00"	2.00"	24.13"

Note: Custom sizes and variations are available to meet specific operational requirements.

Material Properties of Titanium Grades

The material properties of Grade 2 and Grade 5 Titanium are key to their suitability for Slip-On Flanges Class 600:

Property	Grade 2 Titanium	Grade 5 Titanium
Tensile Strength (ksi)	50-70 ksi	130-160 ksi
Yield Strength (ksi)	40-60 ksi	120-140 ksi
Elongation (%)	20%	10%
Density (g/cm³)	4.51	4.43
Corrosion Resistance	Excellent	Good
Thermal Conductivity (W/m·K)	21.9	7.0
Melting Point (°C)	1668°C	1650°C

Grade 2 offers excellent corrosion resistance, while Grade 5 provides superior strength for high-pressure systems.

Torque and Bolt Size Recommendations

To ensure a tight and secure connection, use the appropriate torque values for installation. Below is a guide for bolt size and torque requirements:

Nominal Pipe Size (NPS)	Bolt Size (inches)	Number of Bolts	Torque (ft-lbs)
1/2"	5/8"	4	40-50
1"	3/4"	4	50-60
2"	7/8"	8	70-90
4"	1"	8	100-120
6"	1-1/4"	12	130-160
12"	1-1/2"	16	200-250
24"	1-3/4"	20	300-350

Conclusion

ASME B16.5 Gr2 Gr5 Titanium Slip-On Flanges Class 600 with a Raised Face are an excellent choice for industrial applications, particularly in environments that demand high strength, corrosion resistance, and durability. Whether used in chemical processing, offshore oil and gas, or power generation, these flanges ensure secure, high-pressure connections and long-term reliability.

Selecting the right Titanium flange for your system is essential for maintaining efficiency and safety. By opting for Grade 2 or Grade 5 Titanium, industries can benefit from corrosion resistance, high pressure tolerance, and long service life in even the most demanding environments.
