ASME B16.5 Class 150 Titanium Slip On Flange with Raised Face Forged and CNC Machined UT Tested for Water Supply Systems

Name: ASME B16.5 Class 150 Titanium Slip On Flange with Raised Face Forged and CNC Machined UT Tested for Water Supply Systems
Brand: Baoji Lihua Nonferrous Metals Co., Ltd.
SKU: Slip On Flange
Price: 1,503.00 USD
Availability: InStock

Brand Name:	LHTi
Model Number:	Slip On Flange
MOQ:	100 pieces
Price:	negotiable
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	500 Ton/Tons Per Month

Detail Information

Product Description

Detail Information

Place of Origin:

Baoji, China

Certification:

ISO9001,CE,etc

Technique:

Forged And CNC Machined

Design:

ASME B16.34

Package:

Wooden Case, Pallet, Etc.

Standard:

ASME B16.5, ASME B16.47, MSS-SP-44, API, DIN, JIS

Sealing Surface:

RF, FF, TG, RJ Etc.

Test:

Process:

Welded

Diameter:

Custom Made

Special Requirements:

Custom Sizes And Pressure Ratings Available

Flange Surface:

FF,RF,TG,RJ Etc

Working Temperature:

-60°C~250°C

Size:

1/2 Inch To 24 Inch

Commodity:

Titanium Weld Neck Flanges Wn/lwn

Usage:

Chemical Flange

Packaging Details:

Plywood case or pallet, or as per your requirement

Supply Ability:

500 Ton/Tons Per Month

Highlight:

UT Tested Titanium Flanges

Water Supply Systems Titanium Flanges

CNC Machined Titanium Flanges

Product Description

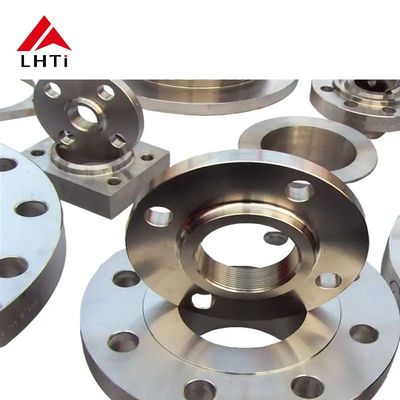

ASME B16.5 Class 150 Titanium Slip-On Flanges

ASME B16.5 Class 150 Slip-On Raised Face (SORF) titanium flanges provide reliable performance in water supply systems and industrial pipelines. These flanges feature easy installation with secure welding and excellent sealing capabilities for leak-free operation in low to medium pressure applications.

Product Specifications

Dimensional Data

Nominal Pipe Size	Flange Outside Diameter	Flange Thickness	Hub Dia. At Base	Raised Face Dia.	Hub Dia. At Welding Point	Welding Neck	Slip On
1/2″ (15 mm)	3.50 in (88.90 mm)	0.44 in (11.11 mm)	1.19 in (30.16 mm)	1.38 in (34.93 mm)	0.84 in (21.34 mm)	0.88 in (22.35 mm)	0.63 in (15.88 mm)
3/4″ (20 mm)	3.88 in (98.43 mm)	0.50 in (12.70 mm)	1.50 in (38.10 mm)	1.69 in (42.86 mm)	1.05 in (26.67 mm)	1.09 in (27.69 mm)	0.63 in (15.88 mm)
1″ (25 mm)	4.25 in (107.95 mm)	0.56 in (14.29 mm)	1.94 in (49.21 mm)	2.00 in (50.80 mm)	1.32 in (33.53 mm)	1.36 in (34.54 mm)	0.69 in (17.46 mm)

Titanium Material Properties

Grade Comparison

Parameter	Titanium Gr1	Titanium Gr2
Chemical Composition	High purity, mainly titanium (Ti 99.5%)	Contains small amounts of aluminum and iron
Tensile Strength (MPa)	240-350 MPa	350-450 MPa
Elongation (%)	24%	20%
Hardness	Brinell Hardness 120-180 HB	Brinell Hardness 160-210 HB
Corrosion Resistance	Excellent for highly corrosive environments	Good for industrial environments
Temperature Range	-250°C to 400°C	-250°C to 400°C
Weldability	Excellent, easy to weld	Good, suitable for common welding methods

Design Features

Slip-On Flange Advantages

Easy installation with simplified welding process
Cost-effective solution with reduced machining requirements
Versatile compatibility with various pipe sizes and pressure classes
Secure dual welding (inside and outside) for leak-free connections

Raised Face Benefits

Enhanced sealing surface for improved gasket contact
Superior leak prevention in pressure-fluctuating systems
Even gasket compression for secure connections
Ideal for high-pressure and high-temperature applications

Industrial Applications

Chemical processing plants handling corrosive substances
Marine and offshore pipeline systems in seawater environments
Aerospace applications requiring high strength-to-weight ratio
Power generation facilities for steam and gas systems
Water supply and wastewater management systems

Key Performance Characteristics

Exceptional corrosion resistance in harsh environments
High strength-to-weight ratio for weight-sensitive applications
Durable performance with extended service life
Reliable operation under fluctuating temperature conditions
ASME B16.5 compliance for quality assurance
