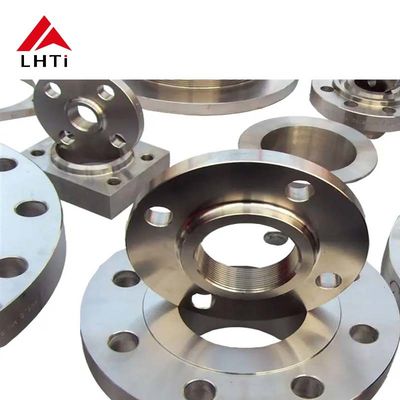

ASME B16.5 Class 150 Titanium Slip On Flange with Raised Face Forged and CNC Machined UT Tested for Water Supply Systems

Name: ASME B16.5 Class 150 Titanium Slip On Flange with Raised Face Forged and CNC Machined UT Tested for Water Supply Systems
Brand: Baoji Lihua Nonferrous Metals Co., Ltd.
SKU: Slip On Flange
Price: 1,503.00 USD
Availability: InStock

Brand Name:	LHTi
Model Number:	Slip On Flange
MOQ:	100 pieces
Price:	negotiable
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	500 Ton/Tons Per Month

Detail Information

Product Description

Detail Information

Place of Origin:

Baoji, China

Certification:

ISO9001,CE,etc

Technique:

Forged And CNC Machined

Design:

ASME B16.34

Package:

Wooden Case, Pallet, Etc.

Standard:

ASME B16.5, ASME B16.47, MSS-SP-44, API, DIN, JIS

Sealing Surface:

RF, FF, TG, RJ Etc.

Test:

Process:

Welded

Diameter:

Custom Made

Special Requirements:

Custom Sizes And Pressure Ratings Available

Flange Surface:

FF,RF,TG,RJ Etc

Working Temperature:

-60°C~250°C

Size:

1/2 Inch To 24 Inch

Commodity:

Titanium Weld Neck Flanges Wn/lwn

Usage:

Chemical Flange

Packaging Details:

Plywood case or pallet, or as per your requirement

Supply Ability:

500 Ton/Tons Per Month

Highlight:

UT Tested Titanium Flanges

Water Supply Systems Titanium Flanges

CNC Machined Titanium Flanges

Product Description

ASME B16.5 Class 150 Titanium Slip-On Flanges

High-performance titanium slip-on flanges with raised face design for industrial water supply systems, featuring forged construction and CNC machining with UT testing for quality assurance.

Product Overview

ASME B16.5 Slip-On Flange (SO Flange) Class 150 SORF (Slip-On Raised Face) delivers reliable performance with easy installation and excellent sealing capabilities for water supply systems. Rated for Class 150 pressure (up to 150 psi), these flanges are ideal for low to medium pressure water pipelines.

ASME B16.5 Standard Compliance

The ASME B16.5 standard defines design, material specifications, dimensions, pressure-temperature ratings, and testing requirements for pipe flanges and flanged fittings. Class 150 designation indicates pressure rating of 150 psi under standard temperature conditions.

Dimensional Specifications

Nominal Pipe Size	Flange Outside Diameter		Flange Thickness		Hub Dia. At Base		Raised Face Dia.		Hub Dia. At Welding Point		Welding Neck		Slip On
Nominal Pipe Size	in	mm	in	mm	in	mm	in	mm	in	mm	in	mm	in	mm
1/2″	3.50	88.90	0.44	11.11	1.19	30.16	1.38	34.93	0.84	21.34	0.88	22.35	0.63	15.88
3/4″	3.88	98.43	0.50	12.70	1.50	38.10	1.69	42.86	1.05	26.67	1.09	27.69	0.63	15.88
1″	4.25	107.95	0.56	14.29	1.94	49.21	2.00	50.80	1.32	33.53	1.36	34.54	0.69	17.46
1-1/4″	4.63	117.48	0.63	15.88	2.31	58.74	2.50	63.50	1.66	42.16	1.70	43.18	0.81	20.64
1-1/2″	5.00	127.00	0.69	17.46	2.56	65.09	2.88	73.03	1.90	48.26	1.95	49.53	0.88	22.23
2″	6.00	152.40	0.75	19.05	3.06	77.79	3.63	92.08	2.38	60.45	2.44	61.98	1.00	25.40
2-1/2″	7.00	177.80	0.88	22.23	3.56	90.49	4.13	104.78	2.88	73.15	2.94	74.68	1.13	28.58
3″	7.50	190.50	0.94	23.81	4.25	107.95	5.00	127.00	3.50	88.90	3.57	90.68	1.19	30.16
3-1/2″	8.50	215.90	0.94	23.81	4.81	122.24	5.50	139.70	4.00	101.60	4.07	103.38	1.25	31.75
4″	9.00	228.60	0.94	23.81	5.31	134.94	6.19	157.16	4.50	114.30	4.57	116.08	1.31	33.34
5″	10.00	254.00	0.94	23.81	6.44	163.51	7.31	185.74	5.56	141.22	5.66	143.76	1.44	36.51
6″	11.00	279.40	1.00	25.40	7.56	192.09	8.50	215.90	6.63	168.40	6.72	170.69	1.56	39.69
8″	13.50	342.90	1.13	28.58	9.69	246.06	10.63	269.88	8.63	219.20	8.72	221.49	1.75	44.45
10″	16.00	406.40	1.19	30.16	12.00	304.80	12.75	323.85	10.75	273.05	10.88	276.35	1.94	49.21
12″	19.00	482.60	1.25	31.75	14.38	365.13	15.00	381.00	12.75	323.85	12.88	327.15	2.19	55.56
14″	21.00	533.40	1.38	34.93	15.75	400.05	16.25	412.75	14.00	355.60	14.14	359.16	2.25	57.15
16″	23.50	596.90	1.44	36.51	18.00	457.20	18.50	469.90	16.00	406.40	16.16	410.46	2.50	63.50
18″	25.00	635.00	1.56	39.69	19.88	504.83	21.00	533.40	18.00	457.20	18.18	461.77	2.69	68.26
20″	27.50	698.50	1.69	42.86	22.00	558.80	23.00	584.20	20.00	508.00	20.20	513.08	2.88	73.03
24″	32.00	812.80	1.88	47.63	26.13	663.58	27.25	692.15	24.00	609.60	24.25	615.95	3.25	82.55

Titanium Material Specifications

Titanium Gr1 and Gr2 flanges offer exceptional corrosion resistance, light weight, and high strength-to-weight ratio for demanding industrial applications.

Parameter	Titanium Gr1	Titanium Gr2
Chemical Composition	High purity, mainly titanium (Ti 99.5%)	Contains small amounts of aluminum and iron
Tensile Strength (MPa)	240-350 MPa	350-450 MPa
Elongation (%)	24%	20%
Hardness	Brinell Hardness 120-180 HB	Brinell Hardness 160-210 HB
Corrosion Resistance	Excellent for highly corrosive environments	Good for industrial environments
Applicable Pressure Rating	Class 150	Class 150
Temperature Range	-250°C to 400°C	-250°C to 400°C
Weight	Lighter (higher purity)	Heavier, but lighter than many metals
Weldability	Excellent, easy to weld	Good, suitable for common welding methods
Common Applications	Aerospace, chemical processing, marine	Chemical plants, oil and gas, power equipment

Design Features & Benefits

Slip-On Flange Design:

Easy installation with slip-over pipe design and interior/exterior welding
Versatile compatibility with various pipe sizes and pressure classes
Cost-effective solution with simpler design and fabrication

Raised Face (RF) Configuration:

Raised face design creates superior gasket compression for enhanced sealing performance, preventing leaks in high-pressure and high-temperature systems while maintaining system integrity.

Industrial Applications

Chemical Processing: Resistant to corrosive chemicals and acids
Marine and Offshore: Withstands seawater corrosion in pipeline systems
Aerospace: High strength-to-weight ratio for weight-critical applications
Power Generation: Handles steam, gas, and fluids under high pressure and temperature
Water Supply Systems: Municipal and industrial water transport pipelines

Key Advantages

Exceptional corrosion resistance in harsh environments
High strength-to-weight ratio for demanding applications
Superior sealing performance with raised face design
Easy installation and cost-effective maintenance
Extended service life with reduced maintenance requirements
UT tested for quality assurance and reliability
