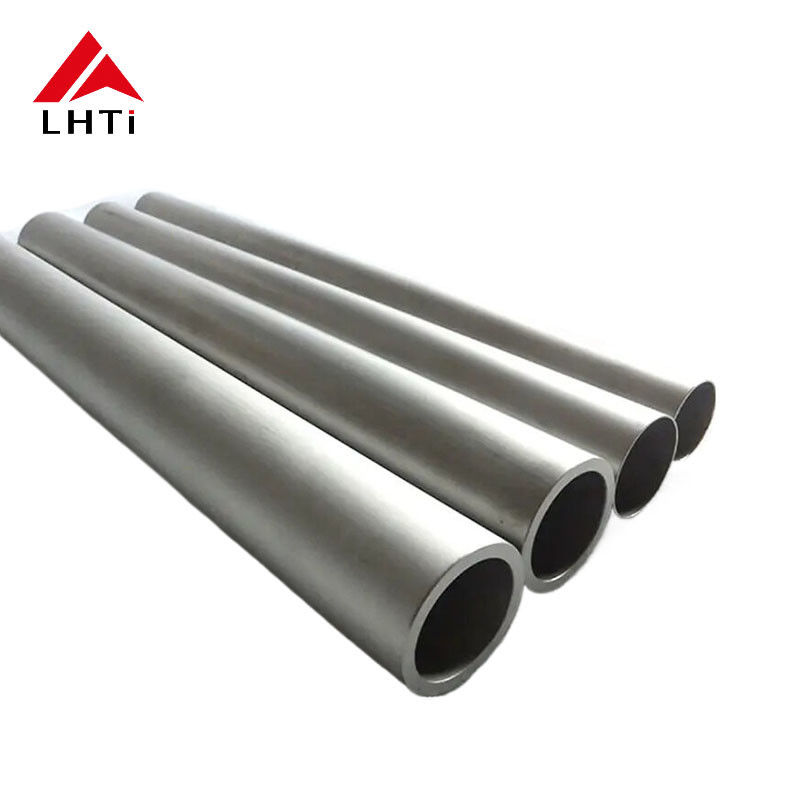

Gr9 Ti Tubing ASTM B338 – Forged & Machined Titanium Pipes with High Strength

Name: Gr9 Ti Tubing ASTM B338 – Forged & Machined Titanium Pipes with High Strength
Brand: Baoji Lihua Nonferrous Metals Co., Ltd.
SKU: Titanium Tube
Price: 22,906.00 USD
Availability: InStock

Brand Name:	LHTi
Model Number:	Titanium Tube
MOQ:	100 pieces
Price:	negotiable
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	200-400 Ton/Tons Per Month

Detail Information

Product Description

Detail Information

Place of Origin:

Baoji, China

Certification:

ISO9001,CE, API,etc

Porudct Name:

Hastelloy C276 Pipe

Processing Service:

Bending, Welding, Cutting

Lengh:

Lengh

Strength:

High

Weldability:

Good

Heat Resistance:

High

Heat Capacity:

3kw~500kw Or More

Low Density:

4.51 G/cm3

Condition:

R M Y

Widthness:

30mm---100mm

Product Type:

Polished Welded Titanium Round Tubes

Commodity:

Rectangle Frame Coil Tube

Packing:

Standard Exported Wooden Cases

Classification:

GR1 GR2 GR7 GR12 Etc

Standard:

ASTM B337/ASTM B338

Packaging Details:

All goods are packed by seaworth shipment materials or required by buyer

Supply Ability:

200-400 Ton/Tons Per Month

Highlight:

Grade 9 Forge Titanium Tube

ASTM B338 Titanium Tube

Machanical Processing Titanium Tube

Product Description

Gr9 Ti Tubing ASTM B338 – Forged & Machined Titanium Pipes

Titanium and its alloys provide exceptional strength, lightweight properties, and outstanding corrosion resistance. Titanium tubes and pipes offer unique advantages for industrial applications requiring durability and resistance to harsh environments.

ASTM B338 Standard Overview

ASTM B338 outlines specifications for titanium tubes used in general corrosion-resistant applications across chemical processing, marine, and aerospace industries. The standard applies to both seamless and welded tubes requiring high corrosion resistance, lightweight strength, and durability.

Grade 7 Titanium (Ti-0.15Pd)

Chemical Composition

Titanium (Ti): Balance
Palladium (Pd): 0.12%-0.25%

Properties

Extremely high corrosion resistance in oxidizing and reducing acids
Enhanced corrosion resistance similar to Grade 2 Titanium
Applications: Marine, chemical, aerospace, heat exchangers, and reactors

Mechanical Properties

Tensile strength: 50-70 ksi (345-485 MPa)
Yield strength: 40-60 ksi (275-415 MPa)
Elongation: ~20% minimum

Grade 9 Titanium (Ti-3Al-2.5V)

Chemical Composition

Titanium (Ti): Balance
Aluminum (Al): 3%
Vanadium (V): 2.5%

Properties

Higher tensile strength and better fatigue resistance than pure titanium
Excellent corrosion resistance in seawater and chloride-rich environments
Applications: Aerospace, medical devices, sports equipment, high-performance applications

Mechanical Properties

Tensile strength: 80-100 ksi (550-690 MPa)
Yield strength: 70-90 ksi (485-620 MPa)
Elongation: ~15% minimum

Manufacturing Processes

Forging

Titanium forging involves heating billets to 800°C-1200°C and applying pressure to create precise, high-strength parts. Benefits include improved material properties, higher tensile strength, and refined microstructure.

Mechanical Pressing

High pressure is applied to heated titanium billets in molds to form tube shapes. This method is suitable for mass production and creates thin-walled tubes with uniform dimensions.

Mechanical Processing

Cold Drawing: Increases strength and improves surface finish
Pilgering: Reduces diameter and thickness while maintaining uniformity
Heat Treatment: Relieves internal stresses and enhances mechanical properties
Surface Finishing: Improves corrosion resistance and appearance

Key Benefits

Outstanding corrosion resistance in aggressive environments
Superior strength-to-weight ratio for lightweight applications
Excellent high-temperature performance and creep resistance
Biocompatibility for medical implants and devices
Long service life with resistance to wear, fatigue, and corrosion

Industry Applications

Aerospace: Aircraft components, engines, and airframes
Chemical Processing: Heat exchangers, reactors, and piping systems
Marine Industry: Shipbuilding, submarine components, offshore platforms
Medical: Orthopedic devices, dental implants, surgical tools
Oil and Gas: Subsea pipelines, wellheads, and heat exchangers

Chemical Composition Table

Grade	C	N	O	H	Ti	V	Al	Fe
Grade 1	.08 Max	.03 Max	.18 Max	.015 Max	Bal			.20 Max
Grade 2	0.1 max	0.03 max	0.25 max	0.015 max	99.2 min			0.3 max
Grade 4	.08 Max	.05 Max	.40 Max	.015 Max	Bal			.50 Max
Grade 5	0.10 max	0.05 max	0.20 max	0.015 max	90 min	3.5-4.5	5.5-6.75 max	0.40 max
Grade 7	.08 Max	.03 Max	.25 Max	.015 Max	Bal			.30 Max
Grade 9	.08 Max	.03 Max	.15 Max	.015 Max	-			.25 Max
Grade 12	.08 Max	.03 Max	.25 Max	0.15 Max	-			.30 Max

Manufacturing Process Summary

Raw material preparation: Titanium sponge processed into billets
Extrusion or piercing: Billet formed into hollow tube
Pilgering/Cold Drawing: Size and thickness reduction
Heat treatment: Annealing to enhance properties
Sizing and straightening: Meets specifications
Finishing: Polishing, beveling, surface treatments
Quality control: Rigorous testing to ensure standards
Packaging and shipping: Prepared for delivery

Titanium Tube Sizes

Wall Thickness	Titanium Tube Sizes (O.D.)
.010	1/16", 1/8", 3/16"
.020	1/16", 1/8", 3/16", 1/4", 5/16", 3/8"
.012	1/8"
.016	1/8", 3/16"
.028	1/8", 3/16", 1/4", 5/16", 3/8", 1/2", 3/4", 1", 1 1/2", 2"
.035	1/8", 3/16", 1/4", 5/16", 3/8", 7/16", 1/2", 16", 5/8", 3/4", 7/8", 1", 1 1/4", 1 1/2", 1 5/8", 2", 2 1/4"
.049	3/16", 1/4", 5/16", 3/8", 1/2", 16", 5/8", 3/4", 7/8", 1", 1 1/8", 1 1/4", 1 1/2", 1 5/8", 2", 2 1/4"
.065	1/4", 5/16", 3/8", 1/2", 16", 5/8", 3/4", 7/8", 1", 1 1/4", 1 1/2", 1 5/8", 1 3/4", 2", 2 1/2", 3"
.083	1/4", 3/8", 1/2", 5/8", 3/4", 7/8", 1", 1 1/4", 1 1/2", 1 5/8", 1 7/8", 2", 2 1/2", 3"
.095	1/2", 5/8", 1", 1 1/4", 1 1/2", 2"
.109	1/2", 3/4", 1", 1 1/4", 1 1/2", 2"
.120	1/2", 5/8", 3/4", 7/8", 1", 1 1/4", 1 1/2", 2", 2 1/4", 2 1/2", 3"
.125	3/4", 1", 1 1/4", 1 1/2", 2", 3", 3 1/4"
.134	1"
.250	3"
.375	3 1/2"
