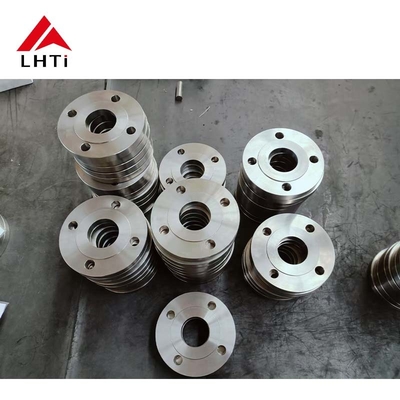

Grade 2 Grade 5 Titanium Flanges ASTME B381 Long Weld Neck Flange Raised Face Titanium for Piping Systems

Grade 2 Grade 5 Titanium Flanges ASTME B381 Long Weld Neck Flange Raised Face Titanium for Piping Systems

Titanium flanges are essential industrial components widely used in applications requiring the connection and sealing of pipes or equipment. They are commonly used to connect pipelines, valves, pumps, and other equipment, providing convenience for disassembly and reinstallation when needed. Made from titanium metal, titanium flanges offer excellent strength, lightweight properties, and exceptional corrosion resistance, making them the preferred choice in applications that require high strength, lightweight materials, and superior performance in extreme environments. Titanium flanges are primarily used in aerospace, chemical processing, oil and gas, and medical fields, with particular emphasis in aerospace, chemicals, oil and gas, and biomedical applications.

Advantages of Titanium Flanges include:

High Strength-to-Weight Ratio: Titanium flanges provide excellent strength while remaining relatively lightweight, making them ideal for high-performance applications.
Corrosion Resistance: Titanium has strong corrosion resistance, particularly in marine, chemical, and high-temperature environments, making it an ideal choice for industries facing harsh corrosion conditions.
High Temperature and Pressure Resistance: Titanium flanges can operate stably in high temperature and pressure environments, making them perfect for industries such as power generation and aerospace.
Durability and Long Service Life: Due to titanium's wear resistance, fatigue resistance, and resistance to chemical corrosion, titanium flanges have a long service life, reducing the need for frequent replacements.
Lightweight and Easy Installation: The lightweight nature of titanium makes titanium flanges more efficient in transportation, handling, and installation, reducing installation costs and time.
Biocompatibility: Titanium is a biocompatible material, making it suitable for medical applications such as implants or prosthetics, ensuring good interaction with human tissues.
Low Thermal Expansion: Titanium flanges have a low coefficient of thermal expansion, making them suitable for low-temperature applications where temperature variations are significant, such as cryogenic engineering projects.



ASTM B381 TITANIUM PIPE FLANGES:

Forged and Plate Flanges




Titanium Flange Standards / Types And Pressure Class :



Applications of Titanium Flanges include:

Aerospace: Titanium flanges are widely used in the aerospace industry, particularly in engines, airframes, and other critical systems due to their lightweight, strength, and corrosion resistance.
Chemical Processing: In chemical plants, titanium flanges are used to connect reactors, heat exchangers, and piping systems, as they can withstand high temperatures and aggressive corrosive environments.
Power Generation: Titanium flanges are used in nuclear reactors, thermal power plants, gas turbines, and other equipment due to their excellent high-temperature resistance and durability.
Oil and Gas: In offshore drilling, refineries, and pipeline systems, titanium flanges are ideal due to their resistance to saltwater corrosion and high-temperature endurance.
Medical Applications: Titanium flanges are used in biomedical fields, such as implants, prosthetics, and surgical devices, due to their biocompatibility and resistance to body fluid corrosion.


Common Standards and Specifications for Titanium Flanges include:

• Standards: ASTM B381, ASME SB381
• Sizes: 1/2” to 18”
• Pressure Ratings: 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64
• Flange Face Types: Flat Face (FF), Raised Face (RF), Ring Type Joint (RTJ)
• Material Grades:
  • Grade 1 Titanium (CP Ti)
  • Grade 2 Titanium (CP Ti)
  • Grade 4 Titanium (Ti-0.25Pd)
  • Grade 5 Titanium (Ti-6Al-4V)
  • Grade 7 Titanium (Ti-0.15Pd)

These material grades provide a range of options based on strength, corrosion resistance, and heat resistance, catering to the diverse needs of various industries. Titanium flanges, due to their excellent performance under extreme conditions, have become essential components in many fields. Whether in high-pressure systems, medical implants, or offshore oil drilling, titanium flanges meet the most demanding performance requirements.
