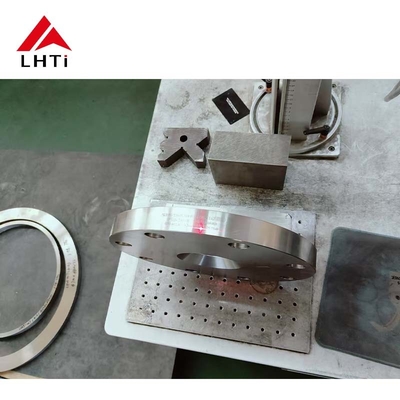

Gr5 Gr7 Class 150 ASME B16.5 Titanium Flanges Slip On Flange Raised Face SORF for Piping Systems

Gr5 Gr7 Class 150 ASME B16.5 Titanium Flanges Slip On Flange Raised Face SORF for Piping Systems

Introduction:

In industries that require exceptional strength, corrosion resistance, and lightweight materials, titanium alloys are an ideal choice. Titanium Grades 2, 7, and 12 are widely used in various sectors, including aerospace, marine, chemical processing, and energy. When combined with ASME B16.5 specifications, these alloys become part of a reliable system for piping components like slip-on flanges, which are crucial in connecting pipes securely. This article explores the characteristics, advantages, applications, and installation methods for Ti Gr 2, Ti Gr 7, and Ti Gr 12 Slip-On Flanges, specifically in the ASME B16.5 Class 150# 1/2" seamless pipe configuration.

1. Characteristics and Material Properties:

Ti Gr 2 (Grade 2 Titanium)

• Composition: 99.2% titanium (pure titanium).
• Corrosion Resistance: Excellent, especially in non-oxidizing acids, saltwater, and chlorides.
• Strength: Medium, ideal for applications requiring moderate strength but high corrosion resistance.
• Weldability: Excellent, which allows for easy joining with other materials or titanium grades.
• Key Feature: Its high ductility and formability make it suitable for manufacturing complex components.

Ti Gr 7 (Titanium with Palladium Alloy)

• Composition: Titanium (99%) and 0.12-0.25% Palladium.
• Corrosion Resistance: Exceptional, especially in sulfuric acid and chlorides.
• Strength: Medium, slightly higher than Gr 2 due to the presence of palladium.
• Weldability: Excellent, with improved weldability compared to other titanium alloys.
• Key Feature: Known for its superior resistance to acidic environments and its use in harsh chemical industries.

Ti Gr 12 (Titanium with Molybdenum Alloy)

• Composition: Titanium (98.8%) with 0.3% Molybdenum and 0.25% Niobium.
• Corrosion Resistance: Excellent in reducing acids and seawater.
• Strength: Medium, with added strength over pure titanium.
• Weldability: Very good, with superior fabricability.
• Key Feature: Its high strength and excellent corrosion resistance make it ideal for industries involving high-temperature applications.

Product Information

2. Advantages of Ti Gr 2, Gr 7, and Gr 12 Slip-On Flanges:

Corrosion Resistance: Titanium alloys, especially Gr 2, Gr 7, and Gr 12, offer unparalleled corrosion resistance. This makes them highly suitable for industries like petrochemical, chemical processing, and marine applications, where corrosive environments are prevalent.

Lightweight: Titanium alloys are significantly lighter than stainless steel, making them a great choice in industries where weight reduction is important, such as aerospace and automotive.

Strength-to-Weight Ratio: Despite their lightweight properties, titanium alloys provide impressive strength. This makes them ideal for applications that require both high strength and minimal weight, such as military and aerospace components.

Durability and Longevity: Titanium’s resistance to wear, fatigue, and cracking ensures that components made from these materials will have a longer operational life, reducing downtime and maintenance costs.

Weldability: All three grades (Ti Gr 2, Gr 7, and Gr 12) are easy to weld, which simplifies the installation and maintenance processes.

3. Applications of Ti Gr 2, Gr 7, and Gr 12 Slip-On Flanges:

Marine Industry: Titanium is resistant to saltwater corrosion, making it an ideal material for marine pipelines and components like slip-on flanges. Ti Gr 2 is often used in seawater systems, while Ti Gr 7 can be used for more aggressive chemical exposure in the marine environment.

Chemical and Petrochemical Industry: Ti Gr 7, with its superior resistance to acids and chlorides, is widely used in chemical processing plants for pipe connections in harsh environments.

Aerospace and Automotive: The high strength-to-weight ratio of Ti Gr 2 and Gr 12 makes them ideal for components in the aerospace and automotive sectors, especially for high-performance applications.

Medical Equipment: Pure titanium (Ti Gr 2) is used in medical applications such as implants, where biocompatibility and corrosion resistance are key.

Energy and Power Generation: Titanium alloys are used in heat exchangers, condensers, and piping systems for their resistance to high temperatures and corrosive fluids.

4. How to Install and Connect Ti Gr 2, Gr 7, and Gr 12 Slip-On Flanges:

Slip-on flanges are one of the most popular methods for connecting pipes in a variety of industries. Here’s how to install a Ti Gr 2, Gr 7, or Gr 12 Slip-On Flange with an ASME B16.5 1/2" Class 150# 1/2" Seamless Pipe

Preparation:

• Ensure that both the flange and pipe ends are clean, free from dirt, rust, and oil, as contaminants can affect the seal and connection.
• Check the alignment of the pipe and flange to ensure proper fitting.

Assembly:

• Slide the slip-on flange over the pipe until it sits against the pipe’s end.
• Ensure the flange fits snugly against the pipe and aligns with the bolt holes.

Bolting:

• Insert bolts through the flange bolt holes and tighten them evenly in a criss-cross pattern to avoid distortion.
• Use a torque wrench to apply the proper torque, ensuring the flange is securely fastened without over-tightening, which could damage the titanium material.

Welding (Optional):

• For additional strength, the slip-on flange can be welded to the pipe. Titanium’s excellent weldability allows for a solid, leak-proof bond when done correctly.

Leak Testing:

• After installation, it’s essential to conduct a pressure test to check for any leaks at the flange connection.

5. Conclusion:

Ti Gr 2, Gr 7, and Gr 12 Slip-On Flanges are essential components in creating durable, corrosion-resistant, and strong pipe connections in industries ranging from marine to aerospace. These titanium alloys, when used with ASME B16.5 standards, offer the perfect blend of lightweight, strength, and exceptional resistance to harsh environments. By following proper installation methods, such as cleaning, alignment, bolting, and welding, industries can ensure that their piping systems are safe, efficient, and long-lasting.

Whether you're working with chemically aggressive environments, high-temperature applications, or need a lightweight solution, titanium slip-on flanges provide an excellent option that ensures reliability and longevity in piping systems.
