Gr5 Gr7 Titanium Hubbed Slip On Flange Class 150

Name: Gr5 Gr7 Titanium Hubbed Slip On Flange Class 150
Brand: Baoji Lihua Nonferrous Metals Co., Ltd.
SKU: Titanium Flange
Price: 1,503.00 USD
Availability: InStock

Brand Name:	LHTi
Model Number:	Titanium Flange
MOQ:	100 pieces
Price:	negotiable
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,
Supply Ability:	5000 Pieces Per Month

Detail Information

Product Description

Detail Information

Place of Origin:

Baoji, Shaanxi, China

Certification:

ISO9001, CE, API,etc

Tolerance:

ISO 9001 CT8~10 Or GB 12362 Precision

Din:

PN6,PN10,PN16,PN25 Though PN250

Shape:

Ring

Press:

Class 600/ CL600

Manufacturing Ways:

Forging

Pressure Rating:

Class 150 To Class 2500

Pressure:

PN 10

Flange Type:

SO M As Per Client Drawing

Quality Control:

Professional Inspection

Standard Or Nonstandard:

Standard

Surface Finish:

Smooth, Sandblasted, Pickled, Mirror Polished

Color:

Ti Natural

Dimensions:

DN10-600

Marking:

Heat No

Face Types:

RF, FF, TG, RJ Etc.

Packaging Details:

All goods are packed by seaworth shipment materials or required by buyer

Supply Ability:

5000 Pieces Per Month

Highlight:

ASME B16.5 Titanium Flanges

Gr5 Piping Systems Titanium Flanges

Gr7 Titanium Flanges

Product Description

Gr5 Gr7 Titanium Hubbed Slip On Flange Class 150

These DIN 86030 hubbed titanium slip-on flanges, available in grades Ti Gr2, Gr5 and Gr7, are engineered to meet rigorous industrial demands. They are essential where exceptional corrosion resistance, high strength and lightweight materials are needed, including chemical processing and marine applications. The hubbed design gives smooth pipe connections with strength and stability and makes welding easier, and the flange is supplied with a raised face (RF) or flat face (FF) for enhanced sealing when paired with a gasket.

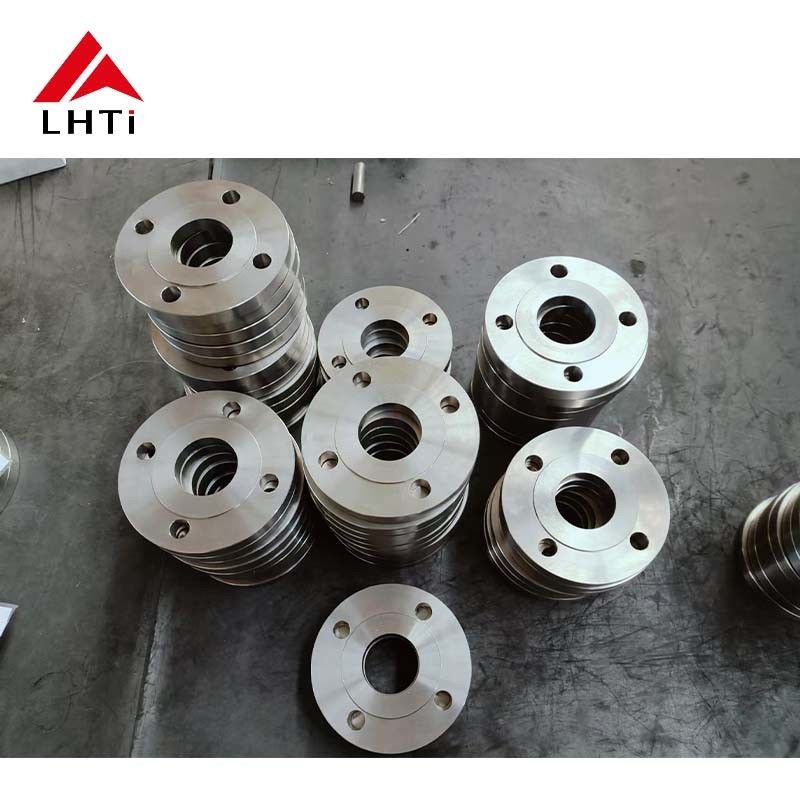

Gr5 Gr7 titanium hubbed slip on flange

Technical Specifications

Flange Type	Hubbed slip-on (SO), or as per client drawing
Standard	DIN 86030; ASME B16.5
Material	Titanium Gr2, Gr5, Gr7
Dimensions	DN10 - DN600
Pressure Rating	Class 150 (Class 150 - Class 2500 available)
Face Types	RF, FF, TG, RJ
Manufacturing Ways	Forging
Surface Finish	Smooth, sandblasted, pickled, mirror polished
Color	Ti natural
Quality Control	Professional inspection

Titanium Grade Specifications

Grade	Description	Typical Application
Ti Gr2	Pure titanium offering excellent weldability and corrosion resistance in non-oxidizing environments	Chemical, marine and medical
Ti Gr5	Titanium-aluminum-vanadium alloy providing higher strength for high-performance applications	High-performance industrial systems
Ti Gr7	Palladium-alloyed titanium delivering exceptional resistance to sulfuric and hydrochloric acids	Chemical processing

Titanium Grade Comparison

Grade	Main Composition	Strength	Corrosion Resistance	Main Application
Ti Gr2	Pure titanium (99.2% Ti)	Medium strength	Excellent	Chemical, marine, medical
Ti Gr5	Ti-6Al-4V	High strength	Good	High-performance and automotive systems
Ti Gr7	Titanium + palladium	Medium strength	Excellent in acids	Chemical processing, power generation

Applications & Titanium Advantages

These hubbed slip-on flanges are used in chemical processing, marine pipelines and high-performance industrial systems. Titanium is lightweight yet strong, with excellent corrosion resistance and good weldability, so the flanged joint stays secure, leak-free and reliable in demanding service.

Quality, Customization & Inquiry

LHTi produces these flanges under ISO 9001, CE and API quality systems. Tolerance follows ISO 9001 or GB 12362 precision, and professional inspection and heat number marking are provided. Custom sizes and face types are available, packed in seaworthy shipment materials or as required by the buyer. Please send your drawing or specification for a quotation.
