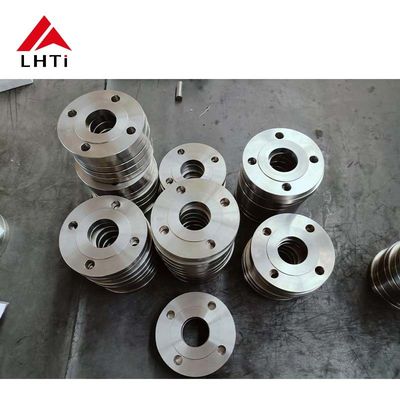

Gr5 Gr7 Class 150 ASME B16.5 Titanium Slip On Flange SORF with Raised Face

Name: Gr5 Gr7 Class 150 ASME B16.5 Titanium Slip On Flange SORF with Raised Face
Brand: Baoji Lihua Nonferrous Metals Co., Ltd.
SKU: Titanium Flange
Price: 1,503.00 USD
Availability: InStock

Brand Name:	LHTi
Model Number:	Titanium Flange
MOQ:	100 pieces
Price:	negotiable
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	5000 Pieces Per Month

Detail Information

Product Description

Detail Information

Place of Origin:

Baoji, Shaanxi, China

Certification:

ISO9001, CE, API,etc

Tolerance:

ISO 9001 CT8~10 Or GB 12362 Precision

Din:

PN6,PN10,PN16,PN25 Though PN250

Shape:

Ring

Press:

Class 600/ CL600

Manufacturing Ways:

Forging

Pressure Rating:

Class 150 To Class 2500

Pressure:

PN 10

Flange Type:

SO M As Per Client Drawing

Quality Control:

Professional Inspection

Standard Or Nonstandard:

Standard

Surface Finish:

Smooth, Sandblasted, Pickled, Mirror Polished

Color:

Ti Natural

Dimensions:

DN10-600

Marking:

Heat No

Face Types:

RF, FF, TG, RJ Etc.

Packaging Details:

All goods are packed by seaworth shipment materials or required by buyer

Supply Ability:

5000 Pieces Per Month

Highlight:

ASME B16.5 Titanium Flanges

Gr5 Piping Systems Titanium Flanges

Gr7 Titanium Flanges

Product Description

Gr5 Gr7 Class 150 ASME B16.5 Titanium Flanges Slip On Flange Raised Face SORF

DIN 86030 titanium hubbed slip-on flanges, available in grades Ti Gr 2, Gr 5, and Gr 7, are engineered to meet rigorous industrial demands. These flanges are essential in industries requiring exceptional corrosion resistance, high strength, and lightweight materials, including chemical processing, aerospace, and marine applications.

Product Features

These hubbed slip-on flanges conform to DIN 86030 standards, ensuring high-quality manufacturing and precise specifications. Available with raised face (RF) or flat face (FF) designs, they provide enhanced sealing capabilities when paired with gaskets. The hubbed design facilitates smooth pipe connections, offering strength and stability while enabling easier welding operations.

Titanium Grade Specifications

Ti Gr 2: Pure titanium offering excellent weldability and corrosion resistance in non-oxidizing environments
Ti Gr 5: Titanium-aluminum-vanadium alloy providing higher strength for high-performance applications, particularly in aerospace
Ti Gr 7: Palladium-alloyed titanium delivering exceptional resistance to sulfuric and hydrochloric acids for chemical processing applications

Titanium Grade Comparison

Titanium Grade	Main Composition	Strength	Corrosion Resistance	Main Applications	Other Features
Ti Gr 2	Pure Titanium (99.2% Ti)	Medium Strength	Excellent	Chemical, Marine, Medical	Excellent weldability and formability
Ti Gr 5	Titanium-Aluminum-Vanadium (Ti-6Al-4V)	High Strength	Good	Aerospace, Automotive, Military	High strength with low density, suitable for high-temperature environments
Ti Gr 7	Titanium-Palladium Alloy (Ti-0.15Pd)	Medium Strength	Excellent	Petroleum, Chemical, Marine Engineering	Outstanding resistance to sulfuric acid and chlorides

Industrial Applications

Titanium hubbed slip-on flanges provide versatile solutions across multiple industries where traditional carbon steel or stainless steel flanges may fail due to corrosion or weight limitations. Aerospace applications utilize these flanges in aircraft fuel systems and critical components requiring lightweight strength. Chemical processing industries benefit from their ability to withstand harsh chemicals, high pressures, and elevated temperatures.

Marine applications, including seawater desalination plants and offshore oil rigs, extensively use these flanges due to exceptional saltwater corrosion resistance. Power plants and energy production facilities rely on them for high-performance systems operating under extreme conditions. The petrochemical and pharmaceutical industries also depend on these flanges to ensure piping system longevity and safety.

Technical Specifications

Titanium Grade	Size Range	Pressure Class	Temperature Range	Corrosion Resistance	Main Applications
Ti Gr 2	1" - 24"	PN 10/16/25	-200°C to 500°C	Suitable for most corrosion environments	Chemical, Marine Equipment
Ti Gr 5	1" - 36"	PN 10/16/40	-250°C to 550°C	Suitable for high-temperature corrosion environments	Aerospace, Automotive, Energy Industry
Ti Gr 7	1" - 48"	PN 10/16/25	-200°C to 450°C	Excellent acid resistance	Petroleum, Chemical, Marine Engineering

Manufacturing Excellence

The production of DIN 86030 titanium hubbed slip-on flanges involves precision manufacturing processes beginning with high-grade titanium alloy selection. Precision machining creates exact flange dimensions meeting stringent DIN 86030 tolerances. Heat treatment enhances mechanical properties and relieves machining stresses, particularly critical for Ti Gr 5 optimization.

Surface finishing through anodizing or pickling further enhances corrosion resistance and improves appearance. Rigorous quality control includes dimensional inspections and material integrity testing, ensuring flanges perform reliably in high-pressure, high-temperature, and corrosive environments.

Performance Benefits

DIN 86030 titanium hubbed slip-on flanges deliver superior strength, corrosion resistance, and lightweight performance across demanding applications. Their advanced manufacturing ensures reliable operation in aerospace, chemical processing, and marine environments. By selecting titanium flanges, companies extend piping system lifespan, reduce maintenance costs, and improve overall operational efficiency.
