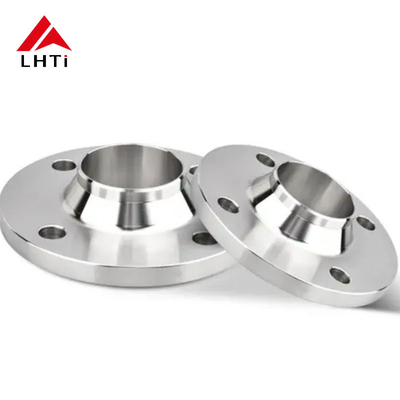

ASME B16.5 Grade 1 Grade 2 Grade 5 Raised Face WNRF Weld Neck Flanges Class 300 for Piping Systems

ASME B16.5 Grade 1 Grade 2 Grade 5 Raised Face WNRF Weld Neck Flanges Class 300 for Piping Systems

1. Introduction of ASME B16.5 WNRF Flanges:

ASME B16.5 is a standard that provides the requirements for pipe flanges and flanged fittings used in piping systems, typically in industries such as chemical, petrochemical, power generation, and oil & gas. The Grade 1, Grade 2, and Grade 5 classifications, along with the Raised Face (RF) design, are relevant to different types of Weld Neck Flanges (WNRF), specifically in the Class 300 pressure rating for piping systems. Here's an overview of these components:

2. Key Terms:

Weld Neck Flange (WNRF): A flange with a long, tapered neck that is welded to the pipe. The tapered neck allows for a strong, smooth connection between the flange and pipe.

Raised Face (RF): A flange design where the sealing surface is raised above the body of the flange to improve sealing when a gasket is placed between the flanges.

Class 300: Refers to the pressure rating for the flange. For Class 300 flanges, the maximum pressure that they can withstand is 300 pounds per square inch (psi) at a specific temperature.

Grade 1, Grade 2, and Grade 5: These are material grades defined by the ASME standard that specify the strength, hardness, and performance characteristics of the material used to make the flanges. These materials are typically steel alloys designed to perform well under high pressure and high temperature.

3. Breakdown of Grades:

Grade 1:

• Generally refers to carbon steel (A105) used in flanges.
• It is suitable for moderate temperature and pressure applications.
• It provides good machinability and strength, typically used for standard piping systems.

Grade 2:

• This is often associated with low-alloy steel (e.g., A350 LF2) flanges.
• It is used in environments where higher strength is needed compared to Grade 1.
• Grade 2 flanges can offer better resistance to impact and high-pressure conditions, often applied in more demanding industrial environments.

Grade 5:

• This material grade is often used for high-strength alloy steels, such as A182 F5.
• Grade 5 flanges are used in high-temperature and high-pressure environments.
• These flanges are often found in applications where severe conditions such as high heat and thermal stresses exist (e.g., power plants, refineries).

Raised Face (RF) Design:

• Raised Face is a common flange design where the face of the flange is raised to improve the pressure-tight seal. It provides a better seating for the gasket.
• The Raised Face height can vary, but it is typically between 1/16" and 1/4" depending on the flange size.
• Raised Face flanges are generally used for Class 150, Class 300, and Class 600 applications, with Class 300 being the most common for mid-range pressure requirements.

Class 300 Flanges:

• Class 300 flanges are rated to handle 300 psi at a specified temperature, which typically ranges from 150°F to 1000°F depending on the material used.
• These flanges are widely used in moderate-pressure applications and are designed to provide reliable and strong connections for industrial piping systems.

Applications:

• Piping Systems: Typically used for liquid or gas pipelines in industries like oil & gas, petrochemical, and chemical processing.
• Pressure Vessels: Where a high level of strength and sealing is required.
• Heat Exchangers: In power generation plants and refineries, where heat transfer and pressure resistance are crucial.

Material Specifications for Flanges:

1. ASTM A105 (Grade 1):

   • Standard specification for carbon steel forged flanges.
   • Used for piping systems with temperatures ranging from -20°F to 800°F.

2. ASTM A350 LF2 (Grade 2):

   • Used for low-temperature service applications with a wide range of temperatures from -50°F to 1000°F.
   • Suitable for piping systems that operate under cryogenic or sub-zero conditions.

3. ASTM A182 F5 (Grade 5):

   • A high-temperature, high-strength alloy steel, suitable for temperatures up to 1000°F or higher.
   • Often used in the power generation industry, refineries, and high-temperature piping systems.

ASME B16.5 Flange Dimensions:

• Dimensions for Weld Neck Flanges (WNRF) under ASME B16.5 vary depending on the flange size and pressure class.
• Typical dimensions include the outer diameter (OD), bolt circle diameter (BCD), and bolt hole size, which change according to the pressure class and nominal pipe size (NPS).

The ASME B16.5 Grade 1, Grade 2, and Grade 5 Weld Neck Flanges with Raised Face Class 300 are critical components in ensuring the safe and efficient transport of fluids or gases under pressure in many different industrial sectors.

4. Grades of Titanium:

5. Specification of ANSI B16.5 Class 300 Titanium Weld Neck Flange:

Key Features of ANSI B16.5 Class 300 Titanium Weld Neck Flange:

ANSI B16.5 Standard:

• The ANSI B16.5 standard defines dimensions, pressure ratings, tolerances, materials, and marking for pipe flanges and flanged fittings.
• The standard is widely recognized and used across industries for flange specifications.

Class 300 Pressure Rating:

• Class 300 refers to the pressure rating of the flange. A Class 300 flange is designed to handle pressures up to 300 psi at a specific temperature.
• The pressure tolerance varies with temperature, but Class 300 flanges are used in systems that require medium-pressure resistance.

Titanium Material:

• Titanium is a highly corrosion-resistant material, making it ideal for applications in industries like chemical processing, seawater desalination, aerospace, and marine environments.
• Titanium flanges provide superior strength-to-weight ratio and excellent performance at both high and low temperatures.
• The most commonly used titanium grades for flanges are Grade 2 (commercially pure titanium) and Grade 5 (an alloy of titanium with aluminum and vanadium), depending on the specific requirements of the application.

Weld Neck Design:

• The Weld Neck flange has a long tapered neck, which provides a strong, seamless connection when welded to a pipe.
• The tapered neck helps to distribute stress more evenly along the pipe, which reduces the risk of cracks and failure.
• This design also makes the flange more resistant to pressure and thermal stresses, making it a common choice for high-pressure systems.

Raised Face (RF):

• The Raised Face (RF) design is common for flanges that need a tight seal.
• The raised area ensures better gasket compression and a more effective seal between flanges when bolted together.
• Raised Face flanges are often used in systems where the flange will be paired with gaskets for sealing under pressure.

Flange Dimensions:

• The dimensions for Class 300 Titanium Weld Neck Flanges will vary based on the nominal pipe size (NPS) and the pressure class.
• Common dimensions include the outer diameter (OD), bolt circle diameter (BCD), bolt hole diameter, and raised face height.
• These dimensions are standardized according to the ANSI B16.5 specification to ensure compatibility with other components in the piping system.

Corrosion Resistance:

• Titanium is highly resistant to a variety of corrosive environments, including acids, saltwater, and high-temperature conditions.
• Grade 2 Titanium (commercially pure titanium) is widely used in many applications due to its excellent corrosion resistance and low cost compared to alloys like Grade 5, which has better strength and heat resistance but slightly reduced corrosion resistance.

Applications:

• Chemical Processing: For systems handling aggressive chemicals, where corrosion resistance is critical.
• Seawater Desalination: Titanium's resistance to saltwater corrosion makes it ideal for marine and desalination applications.
• Aerospace: Lightweight and strong, titanium is used in high-performance, high-temperature environments.
• Marine: Flanges made from titanium are common in the marine industry due to their ability to withstand corrosion in seawater.
• Power Generation: Some power plants utilize titanium components in heat exchangers and other systems that are exposed to high pressures and temperatures.

6. Benefits of Titanium Weld Neck Flanges:

High Strength-to-Weight Ratio: Titanium is both lightweight and strong, making it useful for reducing the overall weight of piping systems while maintaining strength.

Superior Corrosion Resistance: Titanium is especially effective in aggressive and high-temperature environments, such as those found in chemical, marine, and aerospace applications.

Durability and Longevity: Titanium flanges have a long service life due to their ability to resist corrosion, scaling, and wear, resulting in less frequent maintenance and replacement.

High-Temperature Resistance: Titanium can perform in a wide range of temperatures, including both cryogenic and high-temperature conditions, making it suitable for a variety of industrial applications.

Seamless and Strong Welds: The weld neck design ensures that the connection between the flange and pipe is strong and provides a smooth transition to avoid stress concentration.
