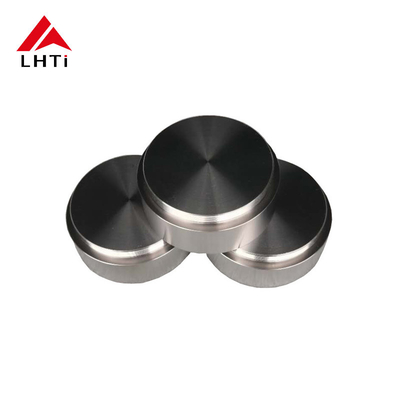

Titanium Grade 2 Grade 5 Sputtering Target Titanium Target Silver Target Sputtering To Coating

Titanium Grade 2 Grade 5 Sputtering Target Titanium Target Silver Target Sputtering to Coating

Sputtering is a widely used deposition technique for creating thin films and coatings on various substrates. In this process, material from a sputtering target (usually in the form of a metal or alloy) is bombarded with high-energy ions in a vacuum, causing atoms to be ejected and deposit onto a surface. This results in the formation of a thin, uniform coating. For different applications, specific materials like Titanium Grade 2, Titanium Grade 5, and Silver are often used as sputtering targets due to their unique properties.

Below, I will detail the properties, uses, and benefits of these sputtering targets in coating applications.

Titanium Grade 2 (Ti Gr2) Sputtering Target

Titanium Grade 2 (Ti Gr2) is a commercially pure titanium with excellent corrosion resistance, biocompatibility, and strength-to-weight ratio. It is used in a variety of applications, particularly where high purity and resistance to corrosion are required.

Properties:

• Composition: Pure titanium (99.2% minimum) with small amounts of iron and oxygen.
• Strength: Moderate strength, excellent ductility.
• Corrosion Resistance: Exceptional in a wide range of environments, particularly in saline and body fluids, making it ideal for medical implants.
• Biocompatibility: Non-toxic and non-reactive, making it ideal for implants and other biomedical uses.

Applications:

• Medical Coatings: Titanium Gr2 sputtering targets are used to create coatings on medical devices like dental implants, orthopedic implants, and surgical instruments due to their high biocompatibility and corrosion resistance.
• Aerospace Coatings: Titanium Gr2 is also used in aerospace for coatings that require corrosion and wear resistance without adding significant weight.
• Decorative Coatings: Due to its lustrous appearance, titanium can be used for decorative coatings on consumer electronics and luxury items.

Titanium Grade 5 (Ti Gr5) Sputtering Target

Titanium Grade 5 (Ti Gr5), also known as Ti-6Al-4V, is a titanium alloy containing 6% aluminum and 4% vanadium. This alloy is known for its high strength-to-weight ratio, fatigue resistance, and corrosion resistance.

Properties:

• Composition: Ti-6Al-4V alloy (90% titanium, 6% aluminum, 4% vanadium).
• Strength: High strength and excellent fatigue resistance, making it ideal for demanding applications where durability is crucial.
• Corrosion Resistance: Similar to pure titanium, Ti Gr5 offers excellent resistance to corrosion in both natural and industrial environments.
• Biocompatibility: Though slightly less biocompatible than Grade 2, Ti Gr5 is still widely used in medical implants due to its high strength and low density.

Applications:

• Medical Coatings: Ti Gr5 sputtering targets are widely used for coating orthopedic implants, dental implants, spinal fusion devices, and other medical devices that require high strength.
• Aerospace and Automotive Coatings: Due to its light weight and high strength, Ti Gr5 is used in aerospace and automotive industries for coatings that need to withstand high stress and fatigue, such as in aircraft engines and turbine blades.
• Architectural Coatings: Ti Gr5 can also be used for architectural coatings where aesthetic appeal combined with strength and corrosion resistance is necessary.

Silver Sputtering Target

Silver is a highly conductive metal with outstanding electrical and thermal properties, making it a popular choice for sputtering targets in various coating applications.

Properties:

• Composition: Pure silver (99.9% or higher).
• Conductivity: Extremely high electrical and thermal conductivity.
• Optical Properties: Silver has excellent reflectivity in the visible and infrared spectrum, making it useful in optical coatings.
• Corrosion Resistance: Although silver tarnishes in the presence of sulfur compounds, it remains highly resistant to corrosion in most environments.
• Softness: Silver is relatively soft compared to other metals, which means it is more easily deposited as a thin film but may wear down faster under certain conditions.

Applications:

• Electronics Coatings: Silver sputtering targets are used to deposit conductive thin films for electronic applications, including printed circuits, solar cells, and electrodes for displays and sensors.
• Optical Coatings: Silver is often used for mirror coatings in optical devices, including telescopes, cameras, and optical sensors, due to its high reflectivity.
• Decorative Coatings: Silver sputtering targets are used for decorative coatings on jewelry, luxury goods, and automotive trim to create a polished, shiny appearance.
• Antimicrobial Coatings: Silver is known for its antimicrobial properties, and silver-based sputtering targets are used to deposit thin films on medical devices, hospital equipment, and consumer goods to inhibit bacterial growth.

Coating Applications Using Sputtered Titanium and Silver

1. Medical Coatings:

   • Titanium (Grade 2 & Grade 5) coatings are commonly used in orthopedic implants (e.g., hip implants, knee implants), dental implants, and surgical instruments because of their biocompatibility, corrosion resistance, and mechanical strength.
   • Silver coatings can be applied to medical instruments and devices to take advantage of silver’s antimicrobial properties, ensuring sterility and reducing infection risk.

2. Aerospace Coatings:

   • Titanium Gr5 sputtering targets are used for aerospace coatings on components such as aircraft turbine blades and engine parts to provide high strength and resistance to wear and corrosion under extreme conditions.
   • Silver coatings are also used in satellite mirrors, solar panels, and communication devices due to silver’s reflectivity and electrical conductivity.

3. Electronics Coatings:

   • Silver coatings are used extensively in the electronics industry for conductive thin films, including the production of sensors, printed circuit boards (PCBs), and solar cells.
   • Titanium coatings are used in capacitors and semi-conductor components, where their durability and corrosion resistance are critical.

4. Optical Coatings:

   • Silver coatings are ideal for reflective mirrors, optical sensors, and lenses because of silver's ability to reflect light across a wide range of wavelengths.

Titanium Aluminum Alloy Sputtering Targets in Medical Applications

The combination of titanium and aluminum in the form of alloy sputtering targets offers several advantages in the deposition of thin films, particularly for medical applications. These films are often used for coatings on medical devices such as implants, surgical instruments, and diagnostic tools.

Benefits of Titanium Aluminum Alloy Sputtering Targets

1. Biocompatibility:

   • Titanium and its alloys are highly biocompatible, meaning they do not cause significant irritation or rejection when used in the human body. The aluminum content further enhances this characteristic, especially when coated with thin films for implants.

2. Corrosion Resistance:

   • Titanium’s natural oxide layer provides excellent resistance to corrosion, especially in biological environments. Sputtered thin films of titanium or titanium-aluminum alloys improve this resistance, which is crucial for implants exposed to body fluids, salts, and other corrosive substances.

3. Wear Resistance:

   • Titanium aluminum alloy sputtering targets are used to deposit thin films with superior wear resistance. This is particularly beneficial for orthopedic implants, dental devices, and surgical instruments, which must endure friction and wear over time.

4. Improved Strength:

   • Alloying titanium with aluminum can improve the mechanical strength of the films, making them more durable under stress. This is essential in load-bearing implants, like joint replacements or spinal devices, where high strength is required.

5. Lightweight and Durable:

   • Titanium is naturally lightweight but incredibly strong, which is ideal for implant materials. Thin films produced from titanium-aluminum alloys contribute to maintaining the lightweight nature of the device while ensuring durability.

6. Antimicrobial and Anti-Inflammatory Properties:

   • Titanium coatings can be engineered to have antimicrobial properties, which reduce the risk of infection post-surgery. The deposition of high-purity titanium or titanium-aluminum alloy thin films can contribute to creating a biologically active surface that encourages osseointegration (the process of bone fusing to an implant).

Specific Medical Applications for Titanium Aluminum Alloy Coatings

1. Orthopedic Implants:

   • Titanium-aluminum alloys are used for hip and knee replacements, spinal implants, and bone screws due to their strength, lightness, and corrosion resistance. Sputtering these alloys onto implant surfaces creates thin, biocompatible coatings that can resist wear and corrosion over long periods of use.

2. Dental Implants:

   • Titanium dental implants are coated with thin films made from titanium-aluminum alloys to improve bone integration and reduce the risk of rejection. These coatings also enhance the durability of dental implants in challenging environments (e.g., exposure to saliva, acids, and occlusal forces).

3. Surgical Tools:

   • Surgical tools that are coated with titanium-aluminum alloy thin films benefit from enhanced wear resistance, corrosion resistance, and biocompatibility. Coatings on tools such as scalpels, forceps, and scissors help them maintain their performance and integrity over time, especially in sterilization cycles.

4. Medical Device Coatings:

   • Devices like stents, catheters, and vascular grafts can be coated with titanium-aluminum alloys to improve their biocompatibility and corrosion resistance in the body. Such coatings help the devices integrate better with body tissues and reduce the risk of complications or rejection.

5. Prosthetic Devices:

   • Titanium-aluminum alloy coatings are also applied to prosthetic limbs and joints to improve their durability and comfort. The alloy coating improves the strength, flexibility, and longevity of prosthetics, making them better suited for long-term use.

High-Purity Sputtering Targets for Medical Coatings

High-purity sputtering targets of titanium and titanium-aluminum alloys (such as Ti Gr2, Ti Gr5, and Ti Gr7) are essential for ensuring that the thin films deposited on medical devices meet stringent standards for purity, uniformity, and performance. In the medical industry, where the integrity of coatings is paramount for patient safety and device longevity, high-purity sputtering guarantees that the final coating will:

• Enhance biocompatibility by avoiding impurities that could cause rejection or irritation.
• Maintain mechanical properties such as strength and ductility to ensure the device functions properly under physiological conditions.
• Withstand long-term exposure to bodily fluids without degrading or compromising the device's integrity.

Titanium-aluminum alloy targets are specialized materials used in sputtering processes to deposit thin films with specific properties. These targets are made from a combination of titanium (Ti) and aluminum (Al), and they offer unique characteristics that make them valuable in various industrial applications.

Characteristics of Titanium Aluminum Alloy Targets:

1. High Purity:

   • Titanium-aluminum alloy targets are produced with high purity, typically 99.5% or higher. This high purity ensures that the thin films deposited during sputtering are free from impurities, providing excellent performance and uniformity in applications that require precise coatings.

2. Fine Particle Size:

   • The alloy targets are manufactured with a fine particle size, which enhances the efficiency of the sputtering process. Smaller particle sizes enable a more uniform deposition of the film on the substrate, improving the quality of the coating.

3. Easy Sintering:

   • Titanium-aluminum alloys exhibit good sintering properties, which means they can be easily processed into dense and solid forms. This is crucial for ensuring that the target is durable, reliable, and capable of withstanding the stresses of the sputtering process without degradation.

4. Good Formability:

   • Titanium-aluminum alloy targets are known for their excellent formability. This characteristic allows them to be manufactured into various shapes and sizes, ensuring compatibility with different sputtering systems and enhancing their versatility in a wide range of applications.

Applications of Titanium Aluminum Alloy Targets:

Titanium-aluminum alloy sputter targets are used in various industries due to their distinct properties, such as wear resistance, corrosion resistance, and the ability to form strong coatings. Some key applications include:

1. Cutting Tools:

   • Titanium-aluminum alloy coatings are commonly used in cutting tools, where they improve wear resistance, corrosion resistance, and thermal stability. These coatings extend the lifespan of tools like drills, end mills, and lathe tools, making them more efficient in high-speed machining.

2. Cemented Carbide Drill Bits and Tools:

   • Cemented carbide drill bits and tools benefit from the titanium-aluminum alloy coating as it significantly enhances the tool's performance in abrasive and high-temperature conditions. The coating also improves the tools' cutting ability and resilience when drilling or machining tough materials.

3. Cemented Carbide Ceramic Tools:

   • These coatings are applied to ceramic tools made from cemented carbide, enhancing their abrasion resistance, toughness, and strength. This is particularly useful in applications that require tools to handle extremely hard materials, such as in aerospace or automotive industries.

4. Cemented Carbide Molds:

   • Titanium-aluminum alloy coatings are also used in molds made from cemented carbide. These molds, used in the metal casting process, benefit from the enhanced wear resistance and corrosion resistance provided by the titanium-aluminum coatings, which contribute to longer service life and improved product quality.

5. Powder Metallurgy Parts of Superhard Materials:

   • Titanium-aluminum alloys are essential in producing superhard materials through powder metallurgy. The coatings improve the hardness, thermal stability, and corrosion resistance of the final products, making them suitable for applications in industries such as mining, drilling, and cutting tools.

6. Metal Composite Ceramics:

   • These alloys are often used as additives in the manufacturing of metal composite ceramics. The combination of metal and ceramic properties provides materials with enhanced strength, heat resistance, and electrical conductivity, making them suitable for demanding applications in electronics and mechanical systems.

7. Additives for High-Temperature Resistant Alloys:

   • Titanium-aluminum alloys serve as key additives in the production of high-temperature resistant alloys. These alloys are commonly used in applications such as jet engines, gas turbines, and heat exchangers, where thermal stability and strength are critical. The addition of titanium and aluminum improves the overall temperature resistance and structural integrity of the alloy.

Titanium Grades:

Conclusion:

Titanium alloy sputtering targets, including TiAl alloys, are versatile materials widely used for coating applications in industries ranging from aerospace to electronics and biomedical. These materials provide exceptional properties such as strength, corrosion resistance, biocompatibility, and wear resistance, making them ideal for demanding applications that require durable, high-performance thin films. When choosing a titanium sputtering target, factors like alloy composition, purity, and target geometry must be considered to achieve optimal results in the sputtering process.
