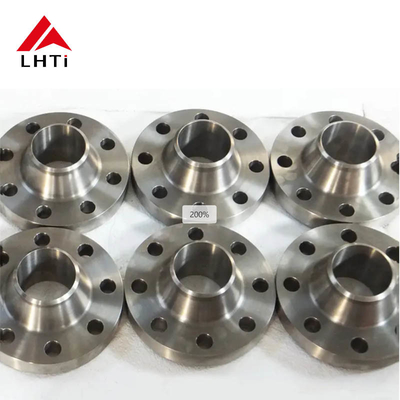

Titanium Weld Neck Flange RFWN ASME B16.5 Raised Face Weld Neck Class 150 for Chemical Applications

Titanium Weld Neck Flange RFWN ASME B16.5 Raised Face Weld Neck Class 150 for Chemical Applications

1. ASME B16.5 Titanium Weld Neck Flanges Class 150:

Our Titanium flanges are crafted using various processes including casting, forging, and precision machining to ensure they meet stringent industry standards for quality and durability. Available in customized sizes, these flanges offer easy installation onto pipeline systems and equipment, guaranteeing a secure and leak-free connection.

Specifically designed to uphold the highest standards of engineering precision, our Titanium thread flanges excel in performance. They are engineered to resist corrosion effectively and withstand high temperatures and pressures, making them exceptionally suited for demanding environments.

Ensuring safe transportation is paramount to us, which is why we meticulously package our Titanium flanges in sturdy wooden cases and pallets. This packaging not only safeguards the flanges during transit but also facilitates easy handling and installation upon arrival.

Our Titanium flanges find applications across diverse industries such as pipelines, petroleum, and chemicals. They are engineered to establish secure and leak-free connections between pipes, valves, and other equipment. The inherent durability of Titanium ensures these flanges endure the harsh conditions prevalent in these industries, ensuring reliable, long-term performance.

In conclusion, our Titanium Weld Neck Flanges represent the ultimate solution for pipeline, petroleum, and chemical industry requirements. With their high-grade Titanium construction, precise engineering, and customizable sizing, they offer a robust, leak-free connection capable of withstanding challenging environments. Order your Titanium flanges today to experience the reliability and durability that define our products.

2. Titanium Material

Titanium alloys are known for their excellent corrosion resistance, especially in aggressive environments like seawater, chlorine, and acids. They also possess a high strength-to-weight ratio, making them ideal for aerospace, chemical processing, and offshore applications.

Common titanium alloys used in flanges include Grade 2 titanium (commercially pure titanium) and Grade 5 titanium (Ti-6Al-4V, an alloy with aluminum and vanadium for enhanced strength).

Titanium flanges typically offer corrosion resistance in environments where stainless steels might fail or require more costly and heavier materials.

3. Physical Properties of Titanium

Density: Titanium is much lighter than steel, which makes it advantageous in applications where weight is a concern (e.g., aerospace, offshore oil rigs).

Tensile Strength: While not as high as some steel alloys, titanium has a high tensile strength relative to its weight, making it useful in pressure-containing applications.

Corrosion Resistance: Titanium is highly resistant to corrosion, especially in chloride environments like seawater, making it highly valuable in marine and chemical industries.

Thermal Conductivity: Titanium’s thermal conductivity is relatively low, making it suitable for applications where high thermal resistance is desirable.

4. Advantages of ASME B16.5 Titanium Weld Neck Flanges:

Titanium weld neck flanges offer a range of advantages that make them highly sought after in various industrial applications where performance and durability are crucial.

High Corrosion Resistance

Exceptional Durability: Titanium is renowned for its superior resistance to corrosion compared to most other metals. This makes it ideal for harsh environments, such as those found in marine, chemical processing, and offshore industries.

Resistance to Pitting and Crevice Corrosion: Especially critical in applications involving seawater or corrosive chemicals, where other materials might fail.

Strength and Lightness

High Strength-to-Weight Ratio: Titanium flanges are lighter than those made from stainless steel or carbon steel, which is a significant advantage in aerospace and automotive industries where reducing weight is crucial.

Maintains Integrity Under Stress: The inherent strength of titanium allows these flanges to withstand high stress and pressure without compromising their structural integrity.

High Temperature Performance

Stability in Extreme Temperatures: Unlike many other metals, titanium maintains its strength and does not become brittle at low temperatures or lose strength at high temperatures, making it suitable for a wide range of operating conditions.

Longevity and Cost-Effectiveness

Long Service Life: Due to their robustness and corrosion resistance, titanium flanges can last significantly longer than other flanges, reducing the need for frequent replacements.

Lower Lifecycle Costs: Although the initial cost is higher, the longevity and reduced maintenance requirements can make titanium flanges more cost-effective over time.

Weldability

Reliable Welding Performance: Titanium weld neck flanges are designed for direct welding to the piping system, providing a strong, seamless connection that enhances the overall strength and leak resistance of the system.

Enhanced Safety

Reduced Risk of Leaks: The weld neck design creates a strong bond with the pipe, which is crucial in high-pressure applications to prevent leaks and ensure safety.

Environmental Resistance

Withstand Harsh Environments: Besides corrosion, titanium is also resistant to damage from a variety of environmental factors including UV radiation, biological fouling, and chemical exposure.

Versatility

Wide Range of Applications: These flanges are used in industries as diverse as chemical processing, aerospace, military, marine, petrochemical, and power generation due to their superior properties.

5. Titanium Weld Neck Flange Inspections

Visual Testing (VT): This involves inspecting the surface of the weld and the flange visually to detect any visible defects such as cracks, porosity, or improper weld profiles.

Ultrasonic Testing (UT): This technique uses high-frequency sound waves to detect internal defects within the material, such as voids, inclusions, or cracks. It's particularly useful for thicker sections of titanium welds.

Radiographic Testing (RT): This method uses X-rays or gamma rays to produce images of the internal structure of the weld and flange. It's effective for detecting internal defects and assessing weld quality.

Magnetic Particle Testing (MT): MT is used to detect surface and near-surface defects in ferromagnetic materials. However, since titanium is not ferromagnetic, this method might not be applicable unless there are magnetic materials nearby or coatings that can be magnetized.

Penetrant Testing/Dye Penetrant (PT): PT involves applying a dye penetrant to the surface of the weld and then removing excess dye to reveal surface-breaking defects. This method is useful for detecting small cracks, porosity, and leaks.

Eddy Current Testing (ET): ET uses electromagnetic induction to detect surface and near-surface defects in conductive materials like titanium. It's useful for detecting corrosion, cracks, and variations in material properties.

Acoustic Emission (AE): AE involves monitoring the acoustic emissions from a material under stress to detect changes indicative of defects like cracks or leaks. It can be used for both weld and base material inspection.
