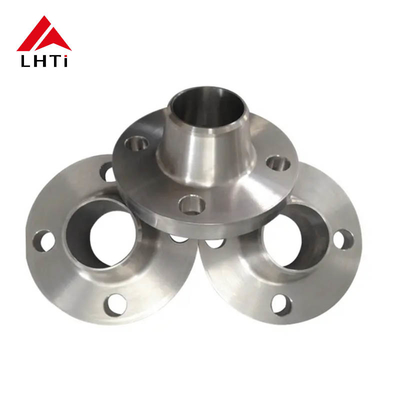

ASME B16.5 Gr2 Gr 5 Titanium Weld Neck Flange WNRF Raised Face For Oil and Gas Industry

ASME B16.5 Gr2 Gr 5 Titanium Weld Neck Flange WNRF Raised Face For Oil and Gas Industry

1. ASME B16.5 Titanium Flanges

ASME B16.5 is a widely recognized standard developed by the American Society of Mechanical Engineers (ASME) for flanges and flanged fittings. This standard covers flanges for sizes 1/2 inch to 24 inches and pressure ratings from 150 to 2500 psi. Titanium flanges made in accordance with ASME B16.5 are used in applications where the exceptional corrosion resistance, strength, and lightweight properties of titanium are essential.

2. Key Properties of Titanium and Its Alloys

Titanium and its alloys are valued for their outstanding corrosion resistance, strength-to-weight ratio, and high-temperature performance. The common grades of titanium used in flanges include:

Grade 2: Commercially pure titanium with good corrosion resistance in a wide range of environments.

Grade 5 (Ti-6Al-4V): Titanium alloy with high strength and moderate corrosion resistance. It’s often used in aerospace, medical, and high-performance engineering applications.

Grade 12 (Ti-0.3Mo-0.8Ni): Offers a balance between strength and corrosion resistance, especially in aggressive environments.

Titanium flanges are typically used in systems involving aggressive chemicals, seawater, or environments where traditional steel flanges might corrode or fail.

3. Different Grades of Titanium

4. Advantages of Using Titanium Flanges

Strong and Reliable Connection

• Enhanced Strength: The design of a weld neck flange, with its tapered neck that gradually transitions into the pipe, provides a strong, seamless connection. This tapering minimizes the stress concentration at the joint and ensures a smooth transfer of pressure and stresses from the pipe to the flange.
• No Stress Risers: Because of the continuous taper from the neck to the flange, the weld is less prone to the formation of stress risers, reducing the risk of failure under pressure.

Improved Leak Resistance

• Smooth Transition: The gradual transition of the weld neck flange ensures a smooth inner bore, which minimizes turbulence and reduces the likelihood of leaks. This smoothness is particularly important in high-pressure or high-temperature systems where leakage could have serious safety and operational consequences.
• Pressure Distribution: The design allows for better distribution of pressure, especially in critical applications where leaks would be hazardous or costly.

Ease of Maintenance

• Reusability: Weld neck flanges can be reused in many cases because the flange and pipe are welded together in a way that can be easily cut and re-welded if necessary. This is particularly valuable in systems where disassembly and reassembly might be required over the years.
• Less Likely to Fail: Due to the strong connection and high resistance to fatigue, weld neck flanges generally have a longer lifespan and require less frequent maintenance.

Versatility in Applications

• Variety of Pressure Ratings: Weld neck flanges come in various pressure ratings, making them suitable for a wide range of applications, from low-pressure to high-pressure systems.
• Adaptable to Different Sizes and Materials: They can be used in systems with different pipe sizes and materials, making them versatile for many industrial applications, including high-temperature, high-pressure, and corrosive environments.
• Variety of Welding Options: The design of the weld neck flange allows for different types of welding methods, such as butt welding or socket welding, depending on the specific requirements of the application.

Enhanced Durability in Harsh Environments

• Corrosion Resistance: Weld neck flanges are often manufactured from materials that are highly resistant to corrosion (e.g., stainless steel, alloy steels, or specialized coatings). This makes them ideal for use in harsh environments, including chemical plants, marine systems, and oil and gas pipelines.
• High-Temperature and High-Pressure Resistance: They can withstand high operating temperatures and pressures without compromising structural integrity, making them suitable for critical applications in power plants, refineries, and other industries where extreme conditions are common.

Reduces Fatigue and Stress

• Smooth Flow Path: The tapering design of the weld neck flange ensures that the pipe's stress and pressure are distributed evenly, reducing the risk of fatigue over time. This makes weld neck flanges ideal for high-stress applications where vibration, thermal expansion, or mechanical stress is a concern.
• Eliminates Stress Concentration: Unlike other flanges that might have sharp corners or abrupt transitions, weld neck flanges eliminate stress concentration points, making the connection more durable under fluctuating loads and conditions.

 Better Alignment and Fit

• Precision Alignment: The design of the weld neck flange ensures that the pipe and the flange align precisely, which results in a more accurate and stronger weld. This reduces the chance of alignment issues during installation and ensures a better overall seal.

5. Different Titanium Grade

6. Applications

Chemical and Petrochemical Industry

• Corrosion Resistance: Titanium alloys are resistant to corrosion, making them suitable for handling corrosive chemicals such as sulfuric acid and hydrochloric acid.
• Pipeline Connections: Used in pipelines that transport corrosive chemicals and gases, ensuring safe connections under high pressure.
• Reactors and Vessels: Commonly used in chemical reactors, distillation columns, and other equipment.

Marine and Offshore Applications

• Seawater Systems: Titanium alloys resist seawater corrosion and are widely used in seawater desalination plants and marine cooling systems.
• Oil and Gas Platforms: Applied in subsea pipelines and other offshore facilities.

Aerospace

• High-Temperature Environments: The high strength and temperature resistance of titanium alloys make them suitable for aircraft and spacecraft fuel systems and propulsion systems.
• Weight Reduction: Titanium weld neck flanges provide strength while reducing weight, which is critical in aerospace applications.

Power Industry

• Nuclear Power Plants: Used in cooling systems, heat exchangers, and reactors.
• Thermal and Geothermal Power Plants: Titanium alloys are used in high-temperature and high-pressure environments to ensure long-term stable operation.

Oil and Gas Industry

• High-Pressure Pipelines: Suitable for natural gas and oil pipelines, ensuring sealing integrity under extremely high pressures.
• Gas Compression and Storage: Used in environments with high-pressure and corrosive gases, such as hydrogen sulfide (H₂S).

Pharmaceutical and Biotechnology

• Sterile Systems: Titanium alloys are used in reactors and filtration systems in the pharmaceutical and biotechnology industries due to their biocompatibility.

Seawater Desalination Plants

• Corrosion Resistance in Seawater: Titanium weld neck flanges are commonly used in seawater desalination processes where they can withstand long-term exposure to saltwater corrosion.

Food and Beverage Industry

• Hygienic Requirements: Titanium's non-reactivity makes it ideal for food processing equipment, ensuring product safety and contamination-free processes.

Biomedical Applications

• Medical Devices: Titanium alloys are commonly used in medical instruments and implants due to their non-reactivity with the human body.

Heat Exchangers

• Efficient Heat Transfer: Titanium weld neck flanges are widely used in heat exchangers, where they can withstand corrosive fluids and maintain efficient heat transfer.
