Titanium Balls Ti Gr2 Gr5 Titanium Floating Balls for Industrial Applications

Name: Titanium Balls Ti Gr2 Gr5 Titanium Floating Balls for Industrial Applications
Brand: Baoji Lihua Nonferrous Metals Co., Ltd.
SKU: Titanium Ball
Price: 22,899.08 USD
Availability: InStock

Brand Name:	LHTi
Model Number:	Titanium Ball
MOQ:	1 piece
Price:	negotiable
Payment Terms:	L/C,D/A,D/P,T/T,Western Union
Supply Ability:	5000 Pieces Per Month

Detail Information

Product Description

Detail Information

Place of Origin:

Baoji, China

Certification:

ISO9001,CE,etc

Material:

Titanium

Seat Type:

Soft Seat, Metal Seat

Model:

Titanium Ball Valve

Design Standard:

API 6D, ASME B16.34

Trim Material:

Titanium

Standard:

ASTM B348,ASTM F136,ASTM F67,AMS4928

Operation:

Manual, Gear, Pneumatic, Electric

Blowout Proof Stem:

Yes

Port Type:

Full Port

Design:

Full Port, Reduced Port

Fire Safe Design:

API 607, API 6FA

Low Emission Design:

API 624

Temperature Range:

-196°C To 600°C

Port Rating:

ASME Class 150, Flanged Ends

Applications:

Water Gas Steam, Industrial Applications

Packaging Details:

Plywood case or pallet, or as per your requirement

Supply Ability:

5000 Pieces Per Month

Highlight:

Titanium floating balls for industrial use

Gr2 Gr5 titanium valve balls

Titanium ball valve components

Product Description

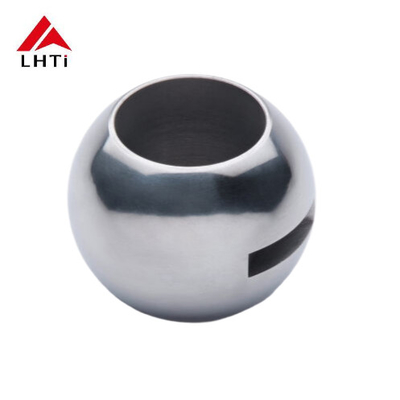

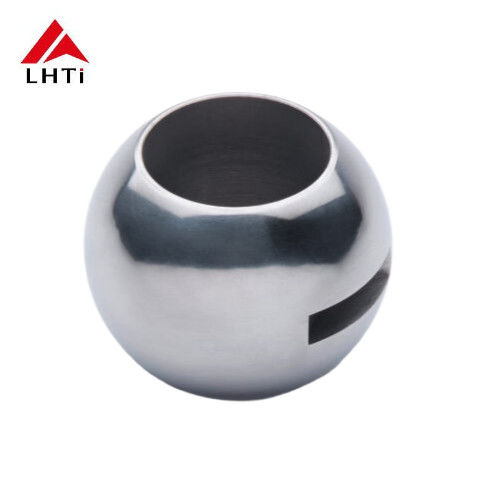

Titanium Balls Ti Gr2 Gr5 Titanium Floating Balls for Industrial Applications

Titanium Balls for Industrial Applications

Precision-engineered titanium balls made from Grade 2 and Grade 5 titanium alloys, designed for demanding industrial applications where corrosion resistance, strength, and lightweight properties are essential.

Grade 2 Titanium Characteristics

Purity: 99.2% titanium composition with iron, oxygen, and trace elements
Strength: Comparable to low alloy steels for versatile applications
Ductility: Highly formable, easily machined and welded
Corrosion Resistance: Excellent performance in oxidizing, mildly reducing environments, and seawater
Biocompatibility: Non-toxic and suitable for medical implants and instruments
Lightweight: Approximately 50% lighter than steel

Titanium Ball Attributes

Lightweight: Low density ideal for aerospace components and body jewelry
Anti-Corrosive: Exceptional resistance in harsh industrial environments and bodily fluids
High Strength: 6AL4V ELI alloy provides superior tension/compression strength
Temperature Resistance: Maintains mechanical properties across wide temperature ranges

Operating Conditions

Temperature Range: -196°C to 350°C (-320°F to 662°F)

Compatible Media:

Water
Gas
Oil
Natural Gas
Acid and Alkali Corrosive Mediums

Product	Titanium and Titanium alloy ball
Size	Dia.: 1.0mm-6.0mm (0.040"-0.236") or customized (plus tooling fee)
Material	Gr.1, Gr.2, Gr.3, Gr.4, Gr.7, Gr.9, Gr.12
Surface	Metallic luster

Titanium Grade Specifications

Product name	Making titanium ball for bearing/jewelry
Grade	Gr1, Gr2, Gr5 (Ti-6Al-4V), Gr23, Ti-3Al-2.5v
Origin	Wuxi
Titanium content	≥99.6 (%)
Impurity content	<0.02 (%)
Density	4.51g/cm³
Color	Titanium natural colour or can be coated another colour
Type	Drilling, threading, brushing, polishing, plating, coating
Size	1. Dia 0.5-300mm 2. Customized is available
Technique	Machining, Forging
Application	Body Jewelry, Medical Applications, Calibration Metrology, Chemistry

Chemical Composition

Composition (%)	Fe	C	N	H	O	Al	V	Ti
Titanium Grade 5	≤0.30	≤0.10	≤0.05	≤0.015	≤0.20	5.50-6.80	3.50-4.50	Bal.
Titanium Grade GR7	≤0.25	≤0.08	≤0.03	≤0.013	≤0.15	-	-	Bal.

Applications

Body Jewelry, Medical Applications, Calibration Metrology, Chemical Processing, Aerospace Components, Marine Environments, and Industrial Machinery
