The Longevity and Efficiency of Titanium Ball Valves in Sustainable Energy Systems

Brand Name:	LHTi
Model Number:	V Port Titanium Ball Valve
MOQ:	1 piece
Price:	negotiable
Payment Terms:	L/C,D/A,D/P,T/T,Western Union
Supply Ability:	5000 Pieces Per Month

Detail Information

Product Description

Detail Information

Place of Origin:

Baoji, China

Certification:

ISO9001,CE,etc

Operation:

Manual, Gear, Actuator

Testing Standard:

API 598, API 6D

Stem Material:

Titanium, Carbon Steel, Stainless Steel

Material:

Titanium

Operation Method:

Lever, Gear, Actuator

Temperture:

-196°C To 350°C (-320°F To 662°F)

Grades:

TA2

Surface Treatment:

Polished Mirror Bright

End Connections:

Flanged, Threaded, Socket Weld, Butt Weld

Model:

Q41F-16R/25R

Ball Materials:

Titanium TA1、TA2、TA10、Gr2、Gr3

Size:

1/2 Inch To 24 Inch

Actuator Type:

Manual, Pneumatic, Electric

Temperature Rating:

-196°C - 600°C

Working Temp:

150°-425°

Packaging Details:

Plywood case or pallet, or as per your requirement

Supply Ability:

5000 Pieces Per Month

Highlight:

titanium ball valve for energy systems

durable titanium ball valve

sustainable energy titanium valve

Product Description

The Longevity and Efficiency of Titanium Ball Valves in Sustainable Energy Systems

Titanium Ball Valves for Sustainable Energy Systems

Titanium ball valves are essential components in sustainable energy systems, offering exceptional durability, corrosion resistance, and energy efficiency. Their unique properties make them ideal for renewable energy applications where reliability and environmental stewardship are paramount.

Key Environmental Benefits

Durability and Longevity: Titanium's high strength-to-weight ratio and corrosion resistance ensure long service life, reducing replacement frequency and conserving resources.

Corrosion Resistance: Excellent performance in harsh environments like seawater and chemical exposure prevents failures and minimizes environmental risks.

Energy Efficiency: Low torque operation and lightweight design contribute to energy savings in fluid control systems.

Reduced Carbon Footprint: Long lifecycle offsets initial manufacturing energy, while recycling initiatives support circular economy principles.

Industrial Applications

Chemical Industry: Handling aggressive media including acids, alkalis, and oxides
Petroleum and Natural Gas: Flow and pressure regulation in extraction and processing
Marine Engineering: Seawater corrosion resistance for offshore platforms and subsea pipelines
Aerospace: Lightweight, high-strength properties for hydraulic and fuel systems
Food and Pharmaceutical: Non-toxic, contamination-free fluid control
Renewable Energy: Wind, solar, geothermal, and bioenergy systems

Technical Specifications

Specification	Details
Pressure Rating	PN1.6-4.0Mpa Class150-300Lb
Nominal Diameter	DN25-DN350 1"-14"
Drive Mode	Worm Gear, Pneumatic, Hydraulic, Electric
Body, Bonnet Materials	TA1, TA2, TA10, Gr2, Gr3
Ball Materials	TA1, TA2, TA10, Gr2, Gr3
Stem Materials	TA1, TA2, TA10, TC4, Gr2, Gr3, Gr5
Sealing Ring Materials	PTFE, RPTFE, PPL, PEEK
Design Standards	GB/T12237, ASME B16.34
Face-to-Face Dimensions	GB/T12221, API6D, ASME B16.10
Flange Connections	HG, GB, JB, API, ANSI, ISO, BS, DIN, NF, JIS
Testing Standards	JB/T9092, GB/T13927, API6D, API598

Product Models

VQ647Y-16Ti, VQ647Y-25Ti, VQ647Y-40Ti, VQ647Y-150Lb(Ti), VQ647Y-300Lb(Ti), VQ647Y-16A, VQ647Y-25A, VQ647Y-40A, VQ647Y-150Lb(A), VQ647Y-300Lb(A), VQ947Y-16Ti, VQ947Y-25Ti, VQ947Y-40Ti, VQ947Y-150Lb(Ti), VQ947Y-300Lb(Ti), VQ947Y-16A, VQ947Y-25A, VQ947Y-40A, VQ947Y-150Lb(A), VQ947Y-300Lb(A)

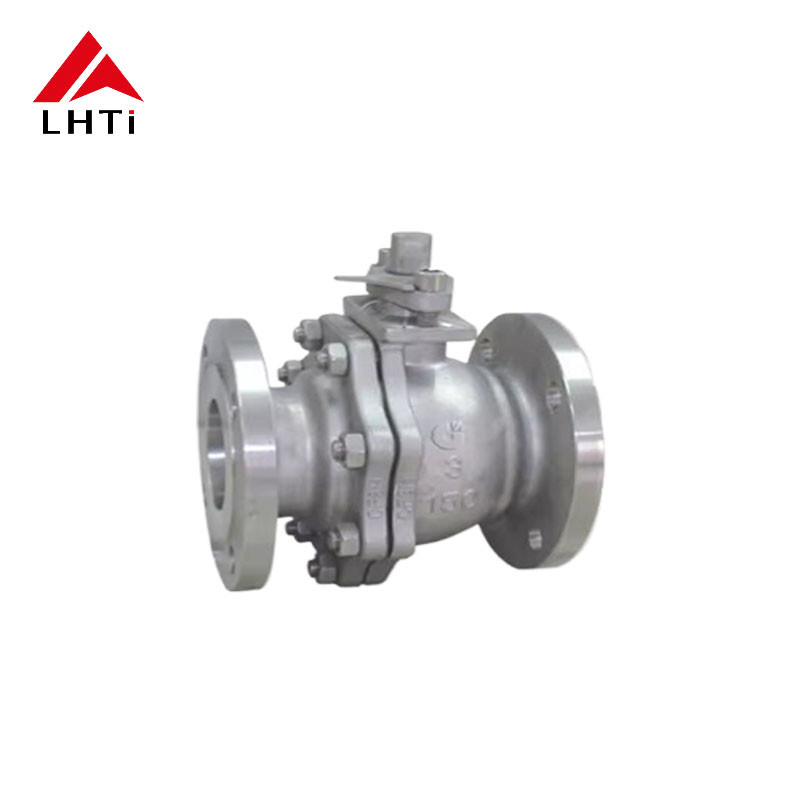

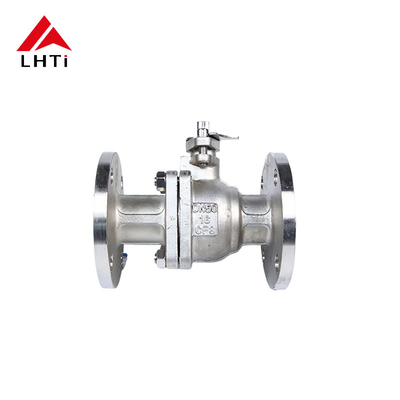

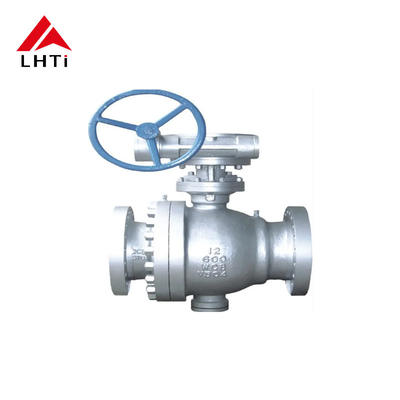

Product Images
