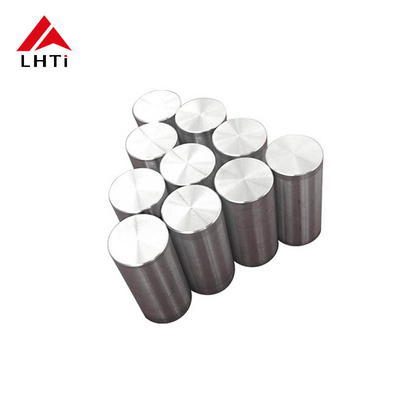

Grade 9 Gr9 Titanium Alloy Bar Pure Titanium Bar ASTM B265 Mechanical Properties for Demanding Environments

Grade 9 Gr9 Titanium Alloy Bar Pure Titanium Bar ASTM B265 Mechanical Properties for Demanding Environments

Introduction to Titanium Rod:

The biocompatibility of Grade 5 titanium ensures that it integrates well with human tissue, significantly reducing the risk of adverse reactions. Additionally, its corrosion resistance makes it suitable for long-term implantation in the body, maintaining structural integrity even in harsh biological environments. With compliance to rigorous standards such as ASTM F136, these titanium bars are manufactured under strict quality controls, ensuring reliability and safety.

In medical settings, the 10mm and 12mm Gr5 titanium alloy bars are utilized in various applications, including orthopedic implants, dental devices, and surgical instruments. Their versatility and strength allow for innovative designs that enhance patient outcomes. As the medical field continues to advance, the use of titanium alloys like Gr5 will remain integral in developing effective and safe medical solutions.

Titanium alloys are widely recognized as an ideal implant material due to their excellent compatibility with human tissue. Their unique properties make them invaluable in surgical and dental procedures. Titanium alloys are used to create a range of medical devices, including hip and femoral head implants, artificial vertebral bodies, knee and elbow joints, dental fixtures, pacemaker shells, heart valves, and even titanium mesh for cranial reconstruction.

We offer a diverse inventory of medical titanium rods in various sizes, including 3mm, 4mm, 5mm, 6mm, 8mm, 10mm, and 12mm. This extensive stock allows us to meet the urgent delivery needs of our customers, as well as accommodate smaller order requirements.
Titanium bars are solid, cylindrical pieces of metal primarily composed of titanium, known for their lightweight yet robust nature. They exhibit exceptional corrosion resistance and a high strength-to-weight ratio, making them suitable for critical applications across various industries. Manufactured through specialized processes that adhere to stringent industry standards, these titanium bars ensure reliability and performance in demanding environments.

In summary, the versatility and biocompatibility of titanium bars position them as a crucial element in the medical field, contributing significantly to advancements in patient care and surgical outcomes. Their availability in multiple sizes allows for flexibility in application, catering to both large-scale and urgent demands.

Summary Table of Specifications:

Differences Between Grade 5 and Grade 9 Titanium

Grade 5 (Ti-6Al-4V) and Grade 9 (Ti-3Al-2.5V) are both titanium alloys, but they differ in terms of their composition, properties, and typical applications. Below is a detailed comparison of the two:

1. Composition

• Grade 5 (Ti-6Al-4V):

  • Alloy Composition: 90% Titanium (Ti), 6% Aluminum (Al), 4% Vanadium (V).
  • Grade 5 is one of the most widely used titanium alloys due to its high strength and versatility.

• Grade 9 (Ti-3Al-2.5V):

  • Alloy Composition: 94.5% Titanium (Ti), 3% Aluminum (Al), 2.5% Vanadium (V).
  • Grade 9 has a lower percentage of aluminum and vanadium compared to Grade 5, resulting in different mechanical properties and applications.

2. Strength and Durability

• Grade 5 (Ti-6Al-4V):

  • Tensile Strength: Approximately 895-1,200 MPa.
  • Yield Strength: Around 830 MPa.
  • Grade 5 is one of the strongest titanium alloys, known for its high strength-to-weight ratio.
  • Fatigue Strength: Excellent fatigue resistance, making it ideal for high-stress applications.

• Grade 9 (Ti-3Al-2.5V):

  • Tensile Strength: Around 620-900 MPa.
  • Yield Strength: Typically around 550 MPa.
  • While still strong, Grade 9 is generally weaker than Grade 5, with a lower tensile and yield strength.
  • Fatigue Resistance: Not as high as Grade 5, but still sufficient for medium-strength applications.

3. Weight and Density

• Grade 5:

  • Density: Approximately 4.43 g/cm³.
  • Grade 5 is relatively dense compared to Grade 9 due to its higher aluminum and vanadium content.

• Grade 9:

  • Density: Approximately 4.48 g/cm³.
  • The density is slightly higher than Grade 5 due to the lower aluminum content, but the difference is minimal.

4. Corrosion Resistance

• Grade 5:

  • Offers good corrosion resistance in a variety of environments, including seawater and oxidizing acids, but it is generally not as resistant to corrosion as pure titanium or some lower-alloyed grades.

• Grade 9:

  • Grade 9 titanium also offers excellent corrosion resistance, particularly in chloride-rich environments, and is often used in marine applications.
  • While it may have slightly better corrosion resistance than Grade 5 in some cases due to its lower content of alloying elements, the difference is not significant.

5. Weldability and Formability

• Grade 5 (Ti-6Al-4V):

  • Weldability: Good, but requires careful control of the welding process due to its high strength. Specialized welding techniques like TIG (tungsten inert gas) are often used to avoid degradation of mechanical properties.
  • Formability: Grade 5 is harder to form compared to Grade 9 due to its higher strength. It is more difficult to machine, cut, or shape.

• Grade 9 (Ti-3Al-2.5V):

  • Weldability: Excellent weldability. Grade 9 titanium is easier to weld compared to Grade 5, and its lower strength makes it more forgiving during welding.
  • Formability: Grade 9 is easier to form and machine due to its lower strength. It is often used in applications where complex shapes are needed.

Differences between Different Grades:

Manufacturing Processes of Gr9 Titanium Bars

Producing Gr9 titanium round bars involves several advanced manufacturing processes, each aimed at ensuring high-quality and precise specifications. Common techniques include forging, extrusion, and machining. Forging processes enhance the microstructure of the alloy, improving its strength and toughness. By refining the grain structure during forging, manufacturers can produce components that perform exceptionally well under stress.

Extrusion is another popular method used to create titanium round bars, allowing for the production of uniform profiles over long lengths. This method is particularly advantageous for applications that require specific dimensions and shapes. Additionally, machining plays a crucial role in achieving tight tolerances and intricate designs, which are essential for many engineering applications. Together, these manufacturing processes ensure that Gr9 titanium round bars meet the stringent requirements of diverse industries.

Applicationsof Titanium Rod:

Titanium bars are widely used across various industries due to their unique properties, such as high strength, lightweight, excellent corrosion resistance, and biocompatibility. In the aerospace sector, titanium bars are utilized in airframe structures, engine components, and fasteners, significantly enhancing fuel efficiency and flight performance. In the medical field, they are fabricated into orthopedic implants (like screws and plates) and dental implants, and also used for high-strength surgical instruments, making them suitable for long-term implantation in the body due to their biocompatibility.

In marine applications, titanium bars are employed in components such as propellers, shafts, and fittings for boats and submarines, providing resistance to saltwater corrosion. In the chemical processing industry, they are used in pipes and tanks for handling corrosive substances, greatly extending the lifespan of the equipment. Additionally, in the automotive industry, titanium bars are found in high-performance parts like exhaust systems and chassis components, contributing to weight reduction and improved fuel efficiency.

In sports equipment, they are used in high-end bicycles, golf clubs, and other gear where strength and lightweight are critical. Titanium bars also play a role in construction and architecture, serving as structural components and decorative elements, appreciated for their aesthetics and strength. In the energy sector, they are applied in offshore drilling equipment and pipelines in the oil and gas industry, as well as in components for wind turbines and solar panel mounts in renewable energy. Overall, the applications of titanium bars are expanding across multiple industries, and their potential continues to grow with advancements in technology.
