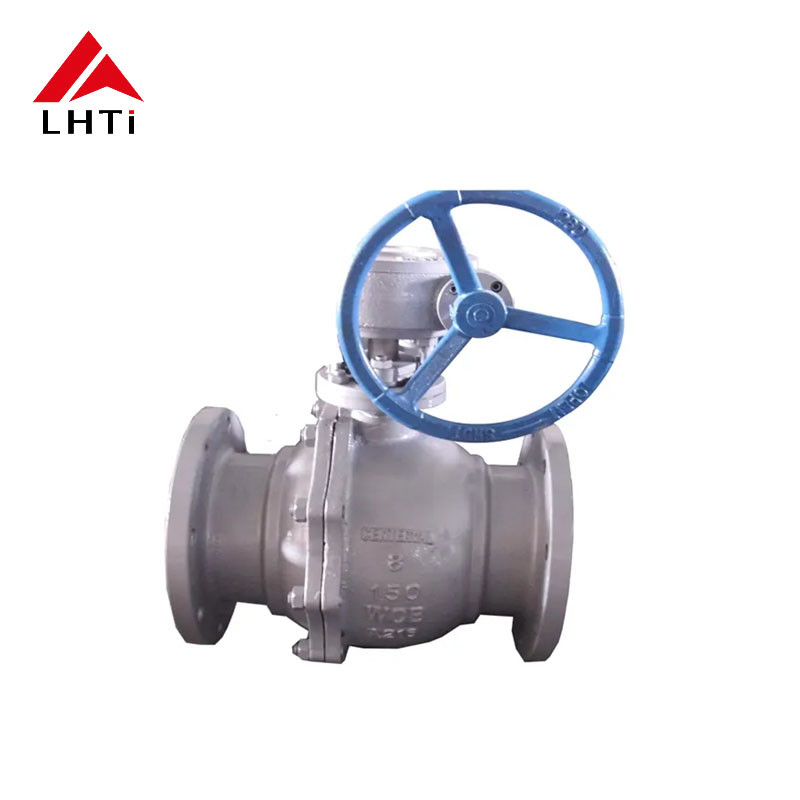

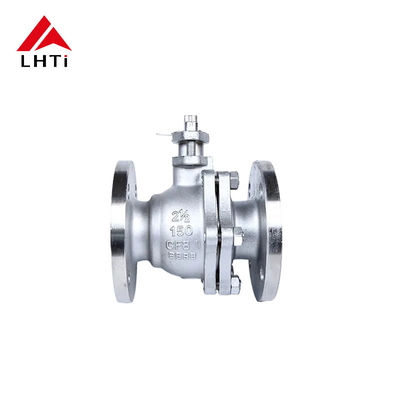

Gr5 Titanium Ball Valves The Ultimate Combination of Strength and Lightweight

Brand Name:	LHTi
Model Number:	V Port Titanium Ball Valve
MOQ:	1 piece
Price:	negotiable
Payment Terms:	L/C,D/A,D/P,T/T,Western Union
Supply Ability:	5000 Pieces Per Month

Detail Information

Product Description

Detail Information

Place of Origin:

Baoji, China

Certification:

ISO9001,CE,etc

Features:

Biological Compatibility,Non-Magnetic

Flow Pattern:

Bi-directional

Locking Device:

Optional

Type:

2 Piece Ball Valve

Cavity Pressure Relief:

Yes

Fire Safe:

Yes

Body Type:

One-piece, Two-piece, Three-piece

Ball Grades:

Gr1 Gr2 Gr5 Gr9 Gr23 Etc.

End Connections:

Flanged (ANSI, JIS, DIN, GB)

Surface:

Metallic Luster

Fire Safe Design:

API 607, API 6FA

Temperture:

-196°C To 350°C (-320°F To 662°F)

Stem Material:

Titanium, Stainless Steel

Certifications:

API 6D, API 607, ISO 9001

Surface Treatment:

Polished Mirror Bright

Packaging Details:

Plywood case or pallet, or as per your requirement

Supply Ability:

5000 Pieces Per Month

Highlight:

Gr5 titanium ball valve

lightweight titanium ball valve

high strength titanium ball valve

Product Description

Gr5 Titanium Ball Valves: The Ultimate Combination of Strength and Lightweight

Performance Analysis for High-Pressure Systems

In high-pressure oil and gas systems, material selection is critical. Grade 5 (Gr5) titanium has emerged as a superior choice due to its exceptional strength-to-weight ratio, lightweight properties, and outstanding corrosion resistance. This analysis examines Gr5 titanium ball valves' performance attributes, highlighting their reliability and efficiency in demanding high-pressure applications.

Understanding Grade 5 Titanium

Grade 5 titanium (Ti-6Al-4V) consists of approximately 90% titanium, 6% aluminum, and 4% vanadium. This alloy offers excellent mechanical properties, including high tensile strength and low density, making it ideal for applications requiring both strength and weight considerations. The alpha and beta phases in its microstructure contribute to its exceptional strength-to-weight ratio, enabling robust designs that maintain performance under extreme pressure conditions.

Corrosion Resistance in High-Pressure Environments

Gr5 titanium demonstrates superior corrosion resistance compared to traditional materials like stainless steel. In high-pressure systems with aggressive media such as sour gas or corrosive chemicals, titanium's passive oxide layer protects against pitting, crevice corrosion, and stress corrosion cracking. This self-healing layer ensures valve integrity in harsh environments, minimizing failure risks and maintaining operational continuity.

Mechanical Properties and Performance

Gr5 titanium boasts impressive mechanical properties with tensile strength of approximately 1,200 MPa and yield strength around 1,100 MPa. These characteristics allow valves to withstand high internal pressures without deformation. The material's hardness provides excellent wear resistance, while its ability to endure cyclical loading without significant fatigue makes it ideal for high-pressure fluid control systems.

Design Considerations

Gr5 titanium enables innovative valve designs that optimize fluid flow while maintaining structural integrity. Features such as V-port or multi-port designs provide precise flow control, while titanium's lightweight nature facilitates compact valves for space-constrained installations. This design flexibility allows engineers to meet specific operational requirements in high-pressure environments.

Testing and Validation

Rigorous testing ensures Gr5 titanium ball valve reliability in high-pressure applications. Hydrostatic testing subjects valves to pressures exceeding maximum ratings to assess leak rates, deformation, and structural integrity. Fatigue testing simulates real-world operating conditions through repeated stress cycles, validating long-term performance and durability.

Key Advantages

Precise Control: V-port design enables accurate flow rate modulation
Exceptional Corrosion Resistance: Performs reliably in challenging environments
Superior Durability: Robust construction minimizes maintenance and downtime
High-Temperature Performance: Operates effectively in elevated temperature settings
Lightweight Strength: Optimal strength-to-weight ratio for efficient designs

Industrial Applications

Chemical Industry: Handling corrosive media including acids, alkalis, and oxides
Petroleum and Natural Gas: Controlling fluid flow and pressure in extraction, transportation, and processing
Marine Engineering: Seawater corrosion resistance for subsea pipelines and offshore platforms
Aerospace: Lightweight, high-strength properties for hydraulic and fuel systems
Food and Pharmaceutical: Non-toxic, contamination-free fluid control

Technical Specifications

Pressure Rating	PN1.6-4.0Mpa Class150-300Lb
Nominal Diameter	DN25-DN350 1"-14"
Drive Mode	Worm Gear, Pneumatic, Hydraulic, Electric
Body, Bonnet Materials	TA1, TA2, TA10, Gr2, Gr3
Ball Materials	TA1, TA2, TA10, Gr2, Gr3
Stem Materials	TA1, TA2, TA10, TC4, Gr2, Gr3, Gr5
Sealing Ring Materials	PTFE, RPTFE, PPL, PEEK
Design Standards	GB/T12237, ASME B16.34
Face-to-Face Dimensions	GB/T12221, API6D, ASME B16.10
Flange Connections	HG, GB, JB, API, ANSI, ISO, BS, DIN, NF, JIS
Testing Standards	JB/T9092, GB/T13927, API6D, API598
