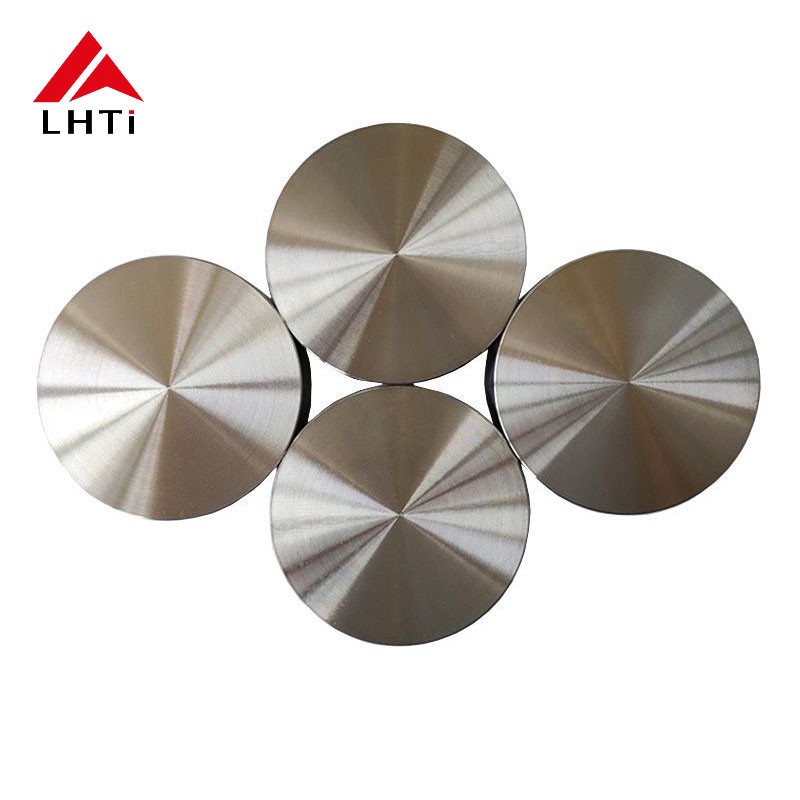

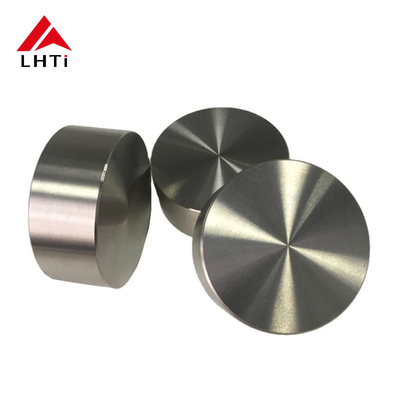

ASTM B381 Titanium Target Pure Ti Coating Sputtering Material in Medication
Product Information
| Product name |
Dia 2'' 3'' 4'' Astm B381 Titanium target Pure Ti Coating Sputtering material
|
| Grade |
Gr1/Gr2 |
| Origin |
baoji city Shaanxi Province china |
| shape |
Round target / plate target / tube target |
| Titanium content |
≥99.6 (%) |
| Impurity content |
<0.02 (%) |
| Density |
4.51 or 4.50 |
| Standard |
ASTM B381 |
| Size |
1.Diameter 98mm
Height 8mm, 10mm, 12mm, 14mm, 16mm, 18mm, 20mm, 25mm
2. Customized is available
|
| Technique |
Forged and CNC Machined |
| Application |
Chemical Industry |
Advantages of Pure Titanium Coatings
Pure titanium coatings offer numerous advantages, making them an ideal choice for various applications in the medical field. One of the most significant benefits is their exceptional biocompatibility. Titanium is well-known for its ability to integrate seamlessly with human tissues, reducing the risk of rejection or adverse reactions when used in implants. This property is especially crucial for devices that will be in direct contact with biological systems, such as orthopedic implants and dental prosthetics. The biocompatible nature of titanium enhances patient safety and promotes quicker healing, contributing to improved overall outcomes in medical treatments.
Another key advantage of pure titanium coatings is their remarkable durability. Titanium is inherently resistant to corrosion, which is essential for medical devices exposed to bodily fluids and various environmental conditions. The sputtering process used to apply titanium coatings results in a dense and uniform layer that significantly enhances the wear resistance of implants and instruments. This durability ensures that medical devices can withstand the mechanical stresses they encounter during use, leading to longer service life and reduced need for replacements or repairs.
In addition to durability, pure titanium coatings facilitate improved osseointegration. For surgical implants like hip and knee replacements, effective osseointegration is vital for ensuring stability and longevity. The surface characteristics provided by titanium coatings promote better bone adhesion, allowing for stronger bonds between the implant and the surrounding tissue. This enhanced integration not only aids in faster recovery for patients but also reduces the likelihood of complications, such as implant loosening.
Finally, the aesthetic benefits of titanium coatings should not be overlooked. Pure titanium can be finished to achieve a smooth surface that minimizes plaque accumulation, particularly in dental applications. This smooth finish not only enhances the appearance of dental implants but also contributes to better oral hygiene, reducing the risk of infections and improving patient satisfaction. Overall, the advantages of pure titanium coatings make them a preferred choice in various medical applications, combining functionality, safety, and aesthetics.
Applications in the Medical Field
Surgical Implants
Titanium coatings are extensively used in surgical implants to enhance their surface properties. The application of sputtered pure titanium improves osseointegration, which is vital for the longevity and effectiveness of implants. With diameters of 2'', 3'', and 4'', these targets can be customized to meet specific device requirements.
Dental Implants
In dental applications, pure titanium is the material of choice for implants and prosthetics. Coatings produced from ASTM B381 titanium targets improve the integration of dental implants with the jawbone, facilitating quicker recovery and better overall stability. The smooth surface achieved through sputtering also reduces plaque accumulation, enhancing oral hygiene.
Medical Instruments
Beyond implants, titanium coatings are also applied to various medical instruments. These coatings enhance their mechanical properties and resistance to corrosion, which is essential for instruments that are frequently sterilized and reused.
Conclusion
ASTM B381 titanium targets are integral to the production of pure titanium coatings used in medical applications. Their biocompatibility, durability, and ability to promote osseointegration make them indispensable in modern medicine. With options available in different diameters, these sputtering materials can be tailored to suit a wide range of medical devices, ensuring enhanced performance and longevity in patient care.
| chemical composition(％) |
| Grade |
Main composition |
Material content(≤) |
| Nb |
Fe |
Si |
Ni |
W |
Mo |
Ti |
Ta |
O |
C |
H |
N |
| Nb1 |
Bal |
0.004 |
0.004 |
0.002 |
0.005 |
0.005 |
0.002 |
0.05 |
0.012 |
0.0035 |
0.0012 |
0.003 |
| Nb2 |
Bal |
0.01 |
0.01 |
0.005 |
0.02 |
0.01 |
0.004 |
0.07 |
0.015 |
0.0050 |
0.0015 |
0.008 |
Mechanical properties of niobium target:
| Grade |
tensile strength Min(MPa) |
Yield Strength Min(MPa)
(0.2%)
|
Elongation(％)
(25.4mm)
|
| R04200,R04210 |
125 |
85 |
25 |
Niobium target tolerance(mm):
| Thickness |
Thickness tolerance |
width |
width tolerance |
length |
length tolerance |
| 0.1~0.2 |
±0.015 |
20～1000 |
±2.0 |
20～2000 |
±2.0 |
| 0.2～0.3 |
±0.02 |
20～1000 |
±2.0 |
20～2000 |
±2.0 |
| 0.3～0.5 |
±0.03 |
20～1000 |
±2.0 |
20～2000 |
±2.0 |
| 0.5～0.8 |
±0.04 |
20～1000 |
±2.0 |
20～2000 |
±2.0 |
| 0.8～1.0 |
±0.06 |
20～1000 |
±2.0 |
20～2000 |
±2.0 |
| 1.0～1.5 |
±0.08 |
20～1000 |
±1.0 |
20～2000 |
±1.0 |
| 1.5～2.0 |
±0.10 |
20～1000 |
±1.0 |
20～2000 |
±1.0 |
| 2.0～3.0 |
±0.12 |
20～1000 |
±1.0 |
20～2000 |
±1.0 |
| 3.0～5.0 |
±0.15 |
20～1000 |
±1.0 |
20～2000 |
±1.0 |
| 5.0～8.0 |
±0.18 |
20～1000 |
±1.0 |
20～2000 |
±1.0 |
| 8.0～12.0 |
±0.20 |
20～1000 |
±1.0 |
20～2000 |
±1.0 |
| 12.0～15.0 |
±0.50 |
20～1000 |
±1.0 |
20～2000 |
±1.0 |
| 15.0～2.0 |
±0.80 |
20～1000 |
±1.0 |
20～2000 |
±1.0
|
Detailed images
Factory
Package & Delivery:
Wrap the ti target material with pearl cotton and put it in a wooden box. Our reasonable packaging method can avoid the target materials from colliding with each other during transportation, and can also prevent the impact of external goods on the product, and ensure that the product is delivered after delivery Integrity.
---1. The sealed packaging,then put in the Carton cas or standard standard plywood case.
---2.Using exclusive custom carton with customer logo, each individual packaging, to help buyers direct sales.
---Accept customer requirment
Make sure that each package is tailor-made for you.ensure when you get the goods no damaged.
